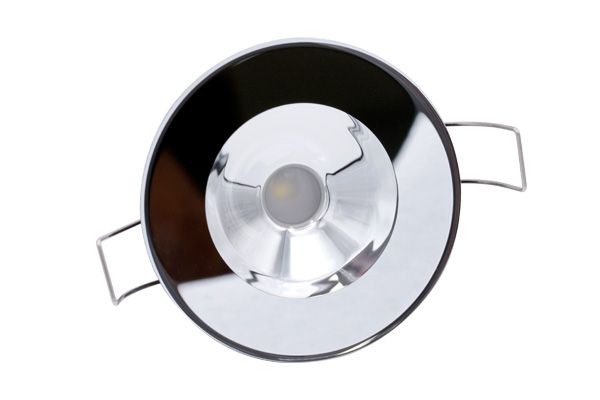

Lumitec Illusion Down Light is a warm white spectrum LED mirrored down light designed for ultra-thin profiles and refined interiors. With a bezel-free, flush-mount design, it sits seamlessly in hardtops and ceilings, elevating marine cabins, lounges, and premium navigation spaces.
-
Ultra-thin profile: 0.7 in (1.77 cm) depth to minimize mounting space while preserving a clean, contemporary look.
-
Bezel-free, flush-mount design: Butterfly clip mounting keeps fasteners hidden for a clutter-free installation and a seamless appearance.
-
Mirrored housing with hardened glass: Durable, refined construction with a compact 2.5 in diameter face.
-
Color output: RGBW with Warm White options, 3000K CCT, and 90+ CRI for true-to-life colors.
-
Brightness and efficiency: 310 lumens at ~6 W power, delivering crisp illumination with low energy use.
-
Power and voltage: 10–30 V DC operation; draws ~430 mA at 12 V and ~230 mA at 24 V.
-
Durability: IP67 rated for reliability in demanding marine environments.
-
Finish options: Custom finishes via proprietary process—metallic colors, wood grain, and more to suit marine interiors.
-
Smart lighting: Optional Sound-to-Light capability when paired with a Poco 4 module for immersive lighting experiences.
-
Electrical and protocol details: 6 W rated (typical); Third Party Dimmer Compatibility (3PD) No; Timed Toggled Protocol (TTP) Yes; CE Certified; UL Certified No.
-
Dimensions: 2.5 in diameter face with 0.7 in depth; designed to sit flush in ceilings and hardtops.
-
Operating conditions: Correlated Corrected Temperature (CCT) 3000K; operates from -31°F to 131°F (-35°C to 55°C).
The Illusion Down Light delivers warm, accurate color with minimal visual intrusion thanks to its compact mirrored face and beveled finish. The hidden-fastener design reduces installation time, while the rugged build and broad voltage range make it ideal for marine cabins, lounges, and navigational spaces where style meets durable performance.
| 12v DC Amps |
430mA |
| 24v DC Amps |
230mA |
| Correlated Corrected Temperature (CCT) |
3000 |
| CE Certified |
Yes |
| Color Match Commitment (CM) |
Yes |
| Color Output |
Spectrum RGBW - Warm White |
| Color Rendering Index (CRI) |
90+ |
| Depth |
0.7 in (1.77cm) |
| Diameter |
2.5in (6.35cm) |
| Finish / Housing |
Mirrored |
| IP Rating |
67 |
| Lumens |
310 |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| PLI Enabled |
Yes |
| Related Watts |
6 |
| Sub Category |
Dome & Down Lights |
| Third Party Dimmer Compatibility (3PD) |
No |
| Timed Toggled Protocol (TTP) |
Yes |
| UL Certified |
No |
| Voltage |
10-30 vDC |
