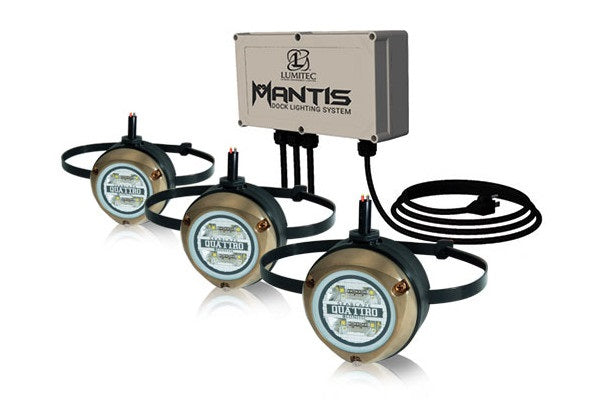

The Lumitec Mantis Dock Light Kit is a rugged, high-performance underwater lighting system designed for reliability and easy installation. Built on the Quattro Spectrum platform, it delivers bright, color-rich dock illumination with flexible lighting modes for ambiance and safety.
-
Brightness and color options: Three high-output Quattro Spectrum lights deliver 2,000+ lumens per light (up to 6,000+ lumens total in white); RGBW cross fade, white bright output, or user-selected color.
-
Mounting compatibility: Zip-Mount universal mounting fits square or round pilings up to 14" diameter or 12" square; works even with fenders above the waterline.
-
Durability and sealing: Full-immersion rear seal and wire technology for reliable operation in harsh marine environments.
-
Electrical system and power: UL Listed system powered by an IP68-rated power supply housed in a weatherproof enclosure; operates on 10-30V DC; 25W per light; current draw 2.1A @ 12V, 1.1A @ 24V.
-
Installation and included components: Easy DIY installation with plug-in to a standard outlet; most installations under 90 minutes; all wiring, connectors, mounts, and hardware included; permits not always required in many municipalities.
-
Expansion option: Optional fourth light available for extra brightness.
-
Warranty: 3-year warranty for peace of mind.
-
What's in the box: Power supply; Quattro Spectrum lights with 30' cables x 3; Zip tie mounts x 3; mounting hardware.
-
Technical specs: Voltage 10-30V DC; Current draw 2.1A @ 12V, 1.1A @ 24V; Watts 25 per light; Color Temperature 6500K; CRI 70+; Cable 30' per light; Depth 0.71"; Diameter 3.85"; Mounting hole diameter 0.5".
This kit delivers bright, color-rich illumination that highlights dock structure, enhances safety, and can attract fish with its versatile lighting modes. It’s designed for straightforward DIY setup, reliable performance in marine environments, and scalable brightness with an optional fourth light for even more impact. The Zip-Mount system fits a wide range of dock configurations, while the IP68-rated power supply and weatherproof enclosure protect against moisture and salt exposure. A 3-year warranty and included mounting hardware provide peace of mind as you upgrade your dock lighting.
| Lumens (White) |
2000 x 3 |
| Volatage |
10-30vDC |
| Current draw |
2.1A @ 12vDC, 1.1A @ 24vDC |
| Rated watts |
25 per light |
| CCT |
6500 |
| CRI |
70+ |
| Time Toggled Protocol |
Yes |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM): |
NA |
| Mounting Hole Diameter |
0.5" |
| Depth |
0.71" |
| Diameter |
3.85" |
