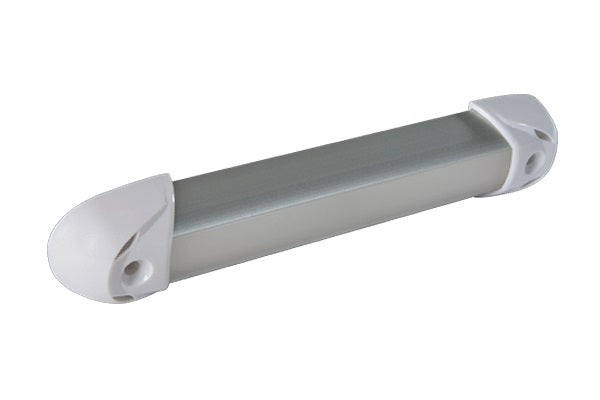

Meet the Lumitec Mini RAIL2 6" Warm White LED — a compact, powerful lighting solution with a brushed finish that looks great in any space. Completely water sealed (IP67), it’s built for both exterior and interior use, delivering on performance and style without compromise.
-
IP67 waterproof design — fully sealed for reliable year-round use indoors or outdoors.
-
Nearly 6" long with a slim profile — 5.90" height, 1.11" width, 0.60" depth; mounting hole diameter 5/32" for quick installation.
-
Efficient, bright warm white light — 95 lumens, 3000K CCT, CRI 90+, at about 4W power consumption.
-
Voltage versatility — designed for 10–30V DC operation; 12V systems draw ~360 mA and 24V systems ~200 mA.
-
Color options — available in Warm White, Neutral White, Blue, or Red to suit any mood or application.
-
Quality and compatibility — Lumitec Color Match Commitment (CM) and Third-Party Dimmer Compatibility (3PD) for flexible control; Timed Toggled Protocol (TTP) not supported.
-
Wide operating range — functional from -31/35 to +131/55 °F/°C for diverse environments.
Designed for boats, RVs, cabinetry, decks, or architectural accents, the Mini RAIL2 delivers a refined glow with dependable durability. Its compact size and robust build make it the perfect accent or task light wherever you need it.
| Lumens (White) |
95 |
| Voltage |
10-30vDC |
| 12v DC Amps |
360mA |
| 24v DC Amps |
200mA |
| Rated Watts |
4 |
| CCT |
3000 |
| CRI |
90+ |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
No |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
5/32" |
| Height |
5.90in (14.97cm) |
| Width |
1.11in (2.82cm) |
| Depth |
0.60in (1.53cm) |
| Diameter |
N/A |
