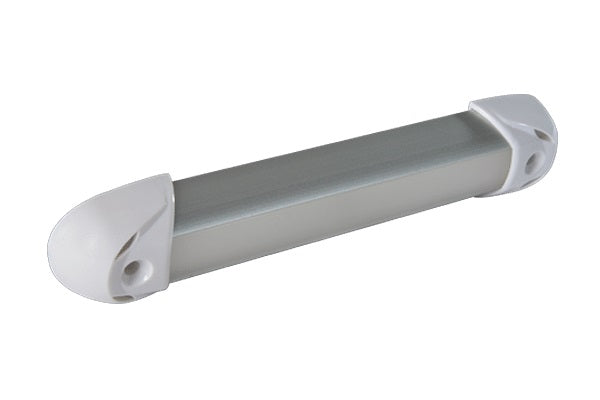

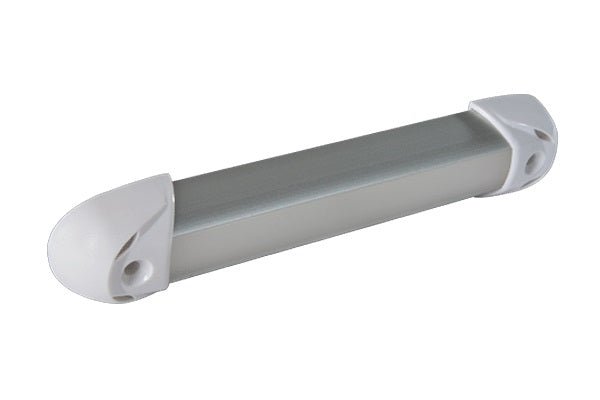

Lumitec's Mini Rail2 6" White LED Light delivers a compact, stylish lighting solution without compromise. Completely water sealed (IP67 compliant), it performs beautifully in both exterior and interior installations, from boats and RVs to decks and cabinets. Choose from four color options: warm white, neutral white, blue, or red to match your space and mood.
Built for versatile power and clear illumination, this 6-inch fixture runs on a wide 10-30V DC input and draws only 4W, delivering about 145 lumens of crisp white light at 5000K with a CRI of 70+.
Key Benefits
-
Compact, high-impact lighting — small 6" form factor with confident output.
-
Wide compatibility — operates on 10-30V DC (12V or 24V systems).
-
Bright yet efficient — 145 lm at 4W, 5000K, CRI 70+.
-
Durable and weatherproof — IP67 water sealing for indoor/outdoor use.
-
Multiple color choices — warm white, neutral white, blue, or red.
-
Easy installation — mounting hole diameter of 5/32" with a slim 0.60" depth.
Dimensions
- Height: 5.90" (14.97 cm)
- Width: 1.11" (2.82 cm)
- Depth: 0.60" (1.53 cm)
- Mounting hole diameter: 5/32" (0.156" / 3.97 mm)
Specifications
- Lumens (White): 145
- Voltage: 10-30 VDC
- Current: 360 mA at 12 V; 200 mA at 24 V
- Rated Watts: 4
- CCT: 5000K
- CRI: 70+
- Operating Temp: -31°F to 131°F (-35°C to 55°C)
- IP Rating: IP67 (water sealed)
- Timed Toggled Protocol (TTP): No
- 3rd Party Dimmer Compatibility (3PD): Yes
- Color Match Commitment (CM): Yes
| Lumens (White) |
145 |
| Voltage |
10-30vDC |
| 12v DC Amps |
360mA |
| 24v DC Amps |
200mA |
| Rated Watts |
4 |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
No |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
5/32" |
| Height |
5.90in (14.97cm) |
| Width |
1.11in (2.82cm) |
| Depth |
0.60in (1.53cm) |
| Diameter |
N/A |
