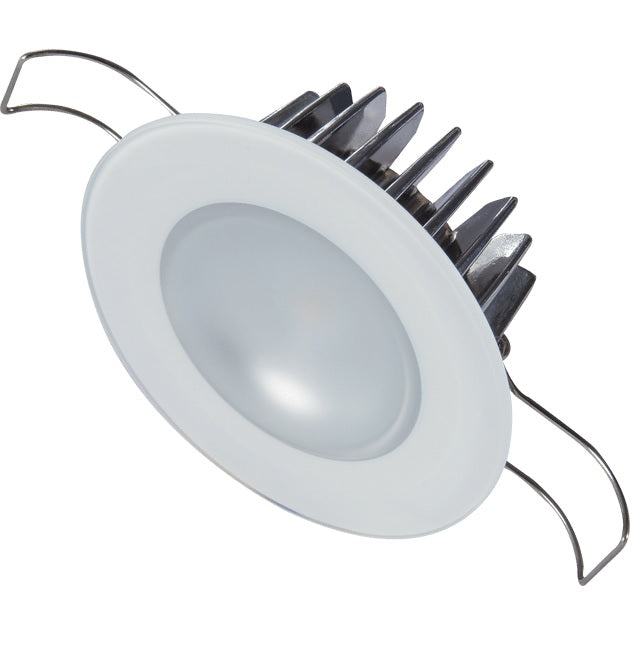

Step into a new standard for overhead lighting with the Lumitec Mirage Down Light in Warm White Glass Finish. This high-performance, ultra-slim LED down light redefines efficiency and aesthetics, delivering outstanding output while maintaining a remarkably low profile. In field studies, Mirage outperformed comparable 20W halogen fixtures by up to 300%, making it the go-to choice for both new installations and retrofit projects.
Completely sealed and IP67 rated, Mirage is built to thrive in a variety of environments — indoors or outdoors alike — and is ready to meet even the most demanding overhead lighting needs. Choose from versatile output options to match your design goals: architectural-grade High CRI warm white for true color rendering, multi-color options (white/blue/red), or the full-color Spectrum RGBW for virtually endless lighting possibilities.
-
Ultra-slim, rugged design — depth 1", diameter 2.5", mounting hole 2" for easy integration in tight ceilings.
-
Bright, accurate light — 300 lumens at 3000K with CRI 90+ for natural colors and clarity.
-
Efficient power — 6W rated power, 10-30V DC input (480mA @ 12V DC).
-
Color versatility — output options including architectural-grade High CRI warm white, white/blue/red multi-color, and Spectrum RGBW for full-color control.
-
Smart control — timed toggled protocol with compatibility for third-party dimmers for smooth, flicker-free dimming.
-
Rugged and reliable — fully sealed with IP67 rating and a wide operating temperature range (-31°F to 131°F / -35°C to 55°C).
-
Consistent color matching — color-match commitment ensures uniform output across Mirage installations.
Specifications
-
Lumens: 300
-
Voltage: 10-30 V DC
-
Power: 6W
-
CCT: 3000K
-
CRI: 90+
-
Operating Temp: -31°F to 131°F (-35°C to 55°C)
-
Output Options: High CRI warm white, white/blue/red, Spectrum RGBW
-
Protocol: Timed toggled; third-party dimmer compatible
-
Mounting: 2" mounting hole, 1" depth, 2.5" diameter
Upgrade your space with Mirage’s seamless blend of power, precision, and style — the ultimate choice for sophisticated, durable, and flexible overhead lighting.
| Lumens |
300 |
| Voltage |
10-30vDC |
| Power consumption |
480mA @ 12vDC |
| Rated watts |
6 |
| CCT |
3000 |
| CRI |
90+ |
| Operating temperature |
-31/35 to + 131/55 F/C |
| Timed toggeled protocol |
Yes |
| Third party dimmer compatibility |
Yes |
| Color match commitment |
Yes |
| Mounting Hole |
2" |
| Depth |
1" |
| Diameter |
2.5" |
