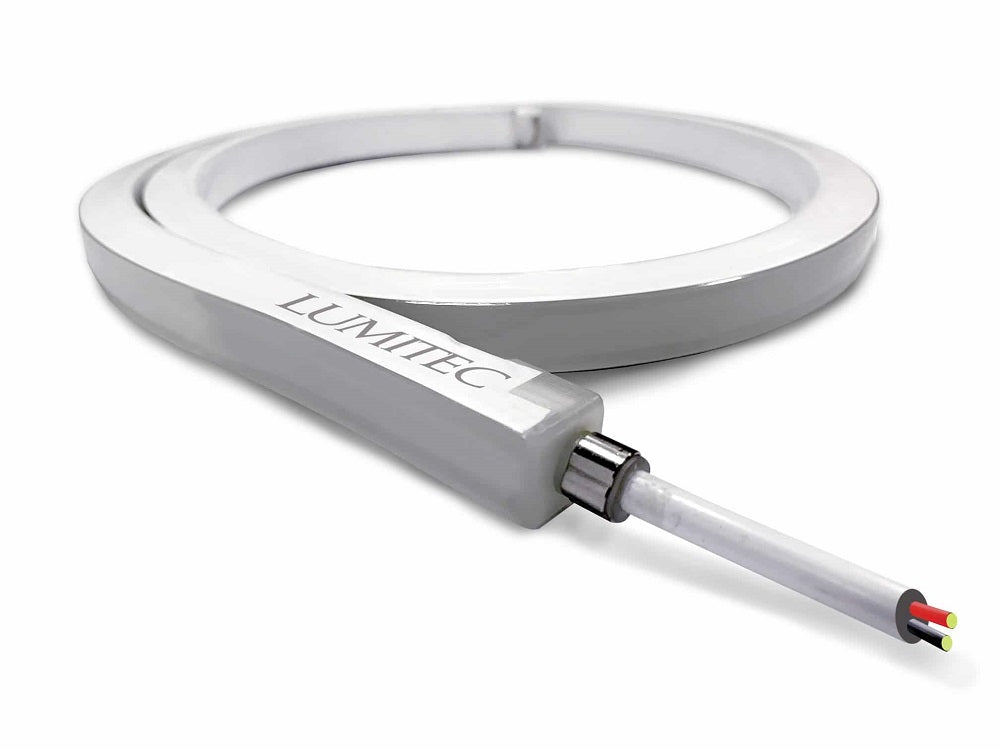

Introducing the Lumitec Moray Flex Strip Light RGBW 4.5ft (Model 101648) — the world’s first RGBW flex light with both an internal driver and an onboard color/output controller, delivering effortless color and lighting control without extra hardware.
-
Integrated driver and RGBW controller: Onboard driver and color/output controller enable RGBW control without any external box or hardware.
-
Direct 2-wire DC connectivity: Simple installation by connecting to a standard 2-wire DC system with on/off switches; no external driver required.
-
RGBW with dimming: Full-spectrum RGBW lighting with adjustable brightness for ambience, task lighting, and color accents.
-
Poco Digital Lighting Control compatibility: Manage Moray from MFDs, smartphones, or tablets for centralized, convenient control.
-
Flexible size options: Available in four sizes, including a 4.5 ft option to fit a variety of installations.
-
Compact white housing: Slim 0.65" profile with a white finish for a clean, unobtrusive look.
-
Performance and power: 10–30V DC input; 12.3W power consumption; 338 lumens (White) at 5000K; CRI 80+.
-
Dimensions: Length 54" (4.5 ft); Width 0.65"; Depth 0.65" for a low-profile installation.
-
Operational range: Wide temperature range from -31/35 to +131/55 °F/°C for versatile use in marine, automotive, or architectural settings.
-
Protocols and compatibility notes: Timed Toggled Protocol (TTP) supported; 3PD and CM not applicable for this model.
Moray’s integrated design reduces installation time and cost by eliminating the need for an external driver or controller. Its 10–30V DC input and compatibility with standard on/off switches make it a straightforward upgrade for ambient, accent, or task lighting, while the RGBW option provides precise color control and dimming. The slim white housing blends with marine, automotive, or architectural environments, and control from MFDs, smartphones, or tablets offers flexible, centralized lighting management in a compact footprint, delivering 338 lumens of white light at 5000K with CRI 80+.
| Lumens (White) |
338 |
| Voltage |
10-30vDC |
| 12v DC Amps |
938mA |
| 24v DC Amps |
N/A |
| Rated Watts |
12.3 |
| CCT |
5000 |
| CRI |
80+ |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM) |
No |
| Mounting Hole Diameter |
N/A |
| Height |
54" |
| Width |
0.65" |
| Depth |
0.65" |
| Diameter |
N/A |
| Finish/Housing |
White |
