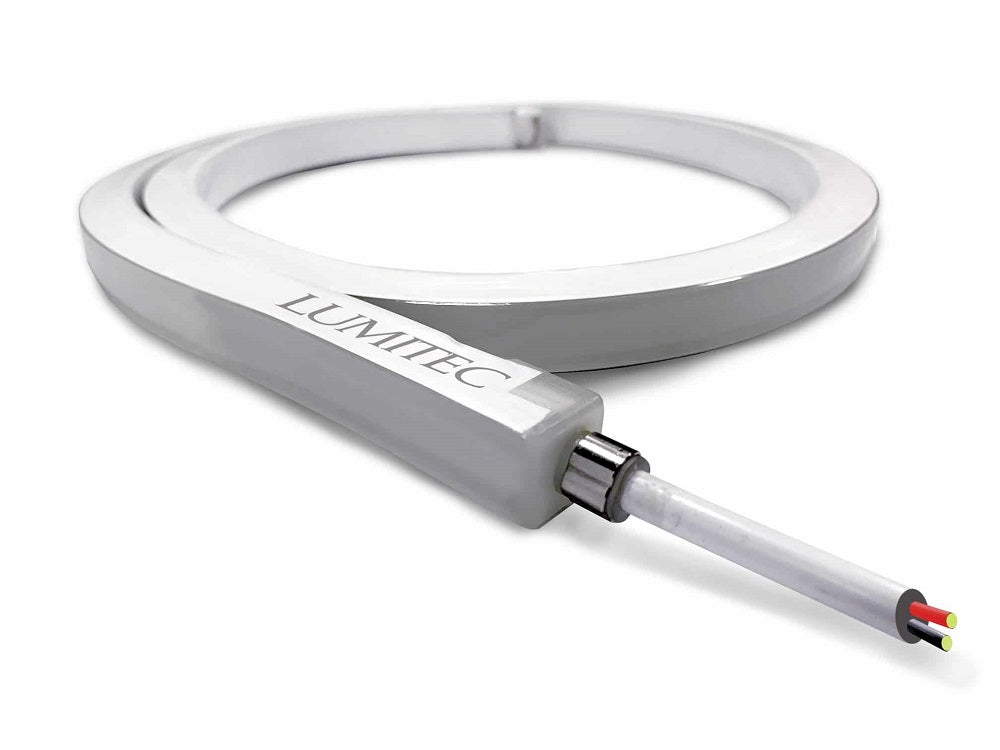

The Lumitec Moray Flex Strip Light RGBW 7.5ft is the world's first RGBW flex light with an integrated driver and internal color/output controller. Its streamlined design wires directly to a 2-wire DC system, enabling color, dimming, and power with a standard on/off switch—without an external driver.
-
Integrated driver and color/output controller: Provides full RGBW capability without extra hardware.
-
Direct 2-wire DC operation: Connects to 10–30V DC power with no external driver required; color and dimming controlled via a standard on/off switch.
-
Length and form factor: 90" long (7.5 ft) with slim white housing; height 0.65", width 0.65", depth 0.65".
-
Light output and color quality: 563 lumens (white) at 5000K; CRI 80+; rated watts 20.6; 12V DC draws 1.56A.
-
Control and compatibility: Poco Digital Lighting Control compatibility enables control from an MFD, smartphone, or tablet.
-
Dimming protocol: Timed Toggled Protocol (TTP) for reliable dimming and timing.
-
Variety and flexibility: Four available sizes to fit a wide range of projects.
-
Operating range: -31/35 to +131/55 °F/°C for versatile environments.
-
Finish/Housing: White housing.
The Moray Flex Strip Light simplifies installation by integrating the driver and color controller into the strip itself, reducing hardware, wiring, and labor. With RGBW capability, you can create precise white and colored lighting effects, while the TTP dimming offers predictable, timed control. Its compact, white housing combines durability with a low-profile silhouette, making it a flexible solution for many spaces. And with digital control compatibility, you can adjust color, intensity, and scenes from a preferred device for effortless illumination management.
| Lumens (White) |
563 |
| Voltage |
10-30vDC |
| 12v DC Amps |
1.56A |
| 24v DC Amps |
N/A |
| Rated Watts |
20.6 |
| CCT |
5000 |
| CRI |
80+ |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM) |
No |
| Mounting Hole Diameter |
N/A |
| Height |
90" |
| Width |
0.65" |
| Depth |
0.65" |
| Diameter |
N/A |
| Finish/Housing |
White |
