About the Product

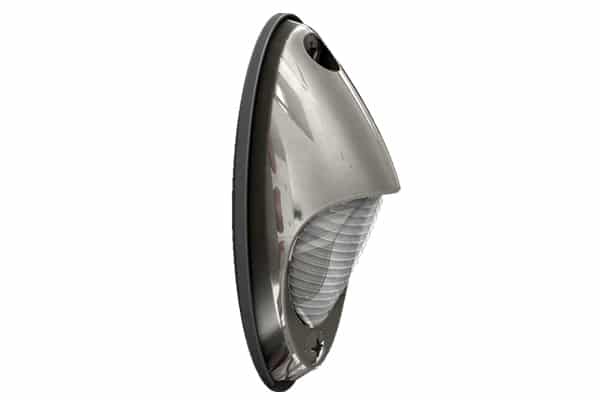

Introducing the Lumitec Nautilus Piling Light Spectrum RGBW, a compact, rugged lighting solution designed for pilings, posts, pathways, and wall-wash applications. This surface-mount fixture arrives with an included adapter for curved or flat mounting locations, and is offered in hand-polished 316 stainless steel or hand-polished bronze finishes for lasting durability and a premium look. Choose from a single warm white color or full-spectrum RGBW output to create the perfect ambiance. PLI and TTP enabled, it runs on standard 12-24V DC power supplies and is completely water sealed with IP67 protection for demanding outdoor and marine environments.
Key Features
- Compact, versatile design small footprint (4.2" H x 1.6" W x 1.5" D) ideal for pilings, posts, pathways, and wall-wash applications.
- Finish options hand-polished stainless steel or hand-polished bronze for a premium, corrosion-resistant look.
- Color choices single warm white or full-spectrum RGBW (including cool white 5000K) for dynamic lighting effects.
- High efficiency 5.2W, delivering 360 lumens in white mode; supports low-power, long-life operation.
- Power and control voltage range of 10-30V DC; 12V draws 440 mA and 24V draws 240 mA; PLI and TTP enabled for easy integration with existing systems.
- Dimmer and color matching third-party dimmer compatibility (3PD) and Color Match (CM) commitment for consistent color across fixtures.
- Durability fully IP67 water sealed for outdoor and marine environments, including exposure to harsh weather.
- Flexible mounting surface-mountable with an included adapter for curved or flat mounting locations.
Technical Specifications
- Lumens (White): 360
- Voltage: 10-30V DC
- Current draw: 12V DC 440 mA; 24V DC 240 mA
- Power: ~5.2 W
- Color/Output: Spectrum RGBW or Cool White (5000K), CRI 70+
- Operating temperature: -31°F to 131°F (-35°C to 55°C)
- Dimensions: Height 4.2", Width 1.6", Depth 1.5"
- Finish/Housing: Hand-polished stainless steel or bronze
- IP Rating: IP67
- Compatibility: PLI and TTP enabled; 3PD; CM
| Lumens (White) | 360 |
| Voltage | 10-30vDC |
| 12v DC Amps | 440mA |
| 24v DC Amps | 240mA |
| Related Watts | 5.2w |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) | Yes |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | N/A |
| Height | 4.2" |
| Width | 1.6" |
| Depth | 1.5" |
| Diameter | N/A |
| Finish/Housing | Stainless Steel |
