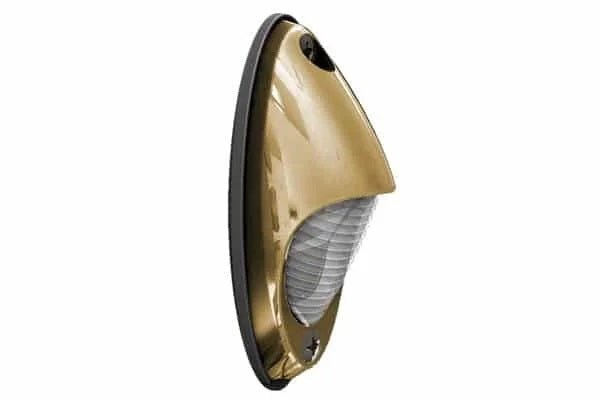

Introducing the Lumitec Nautilus Piling Light Spectrum RGBW — Warm White in Bronze Housing. Small, clean, and versatile, Nautilus is engineered to illuminate pilings, posts, pathways, and wall-wash applications with a low-profile silhouette that blends with any nautical or architectural setting. It is surface-mountable with an included adapter for curved or flat mounting locations. Choose from a hand-polished 316 stainless steel or hand-polished bronze finish for the look you want.
Key features
-
Color options: Single-color Warm White (3000K) or full Spectrum RGBW output for dynamic lighting and color-matching effects.
-
Power and efficiency: 255 lm (White) at 5.2W, operating on 10-30V DC. 12V DC draws ~440 mA; 24V DC draws ~240 mA.
-
Rugged and weatherproof: Completely water sealed and IP67 compliant for reliable performance in harsh marine environments.
-
Durable construction: Surface-mount design with adapter; available finishes in Bronze or hand-polished 316 stainless steel.
-
Smart integration: PLI and TTP enabled; compatible with standard 12-24V DC power supplies; can be integrated into Mantis dock light kits or Kraken dock light systems. Third-Party Dimmer Compatibility (3PD) and Color Match Commitment (CM) supported.
-
Compact form: Dimensions: height 4.2", width 1.6", depth 1.5" (finish/housing Bronze).
Specifications
-
Lumens (White): 255
-
Voltage: 10-30V DC
-
Current: 12V DC 440 mA; 24V DC 240 mA
-
Power: 5.2 W
-
CCT: 3000K
-
CRI: 80+
-
Operating Temp: -31°F to 131°F (-35°C to 55°C)
-
IP Rating: IP67
-
Mounting: Surface mount; adapter included for curved or flat mounting
-
Finish/Housing: Bronze (also available in hand-polished 316 stainless steel)
-
Model: 101671
Elevate any outdoor feature with the Nautilus Piling Light—reliable, efficient illumination that highlights architecture and landscapes while standing up to the elements. Its compact profile, rugged bronze housing, and easy installation make it an ideal choice for coastal installations, marinas, and modern exterior design.
| Lumens (White) |
255 |
| Voltage |
10-30vDC |
| 12v DC Amps |
440mA |
| 24v DC Amps |
240mA |
| Related Watts |
5.2w |
| CCT |
3000 |
| CRI |
80+ |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
N/A |
| Height |
4.2" |
| Width |
1.6" |
| Depth |
1.5" |
| Diameter |
N/A |
| Finish/Housing |
Bronze |
