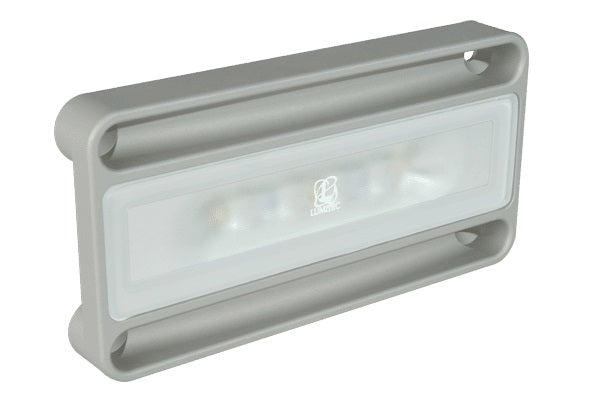

Meet the Lumitec Nevis2 Engine Room LED Light — a compact, high-performance solution to illuminate tough-to-reach compartments with style and reliability.
As the world's first two-color mechanical space lighting system, Nevis2 combines white with blue (or white with red) to optimize visibility and contrast in engine rooms, bilges, and other confined areas. It delivers over 1,000 integrating sphere lumens with a sweeping 180-degree light distribution for bright, even coverage from edge to edge.
Why Nevis2 stands out
-
Two-color output: choose White/Blue (or White/Red) for enhanced color clarity and reduced glare in dim spaces.
-
High-precision brightness: more usable light than the original Nevis line — approximately 30% more light in practical use.
-
Ignition protected: certified ignition protection for safe operation in demanding environments.
-
Fully sealed: rugged, water- and dust-tight construction compatible with PWM dimmers for smooth dimming.
-
Wide voltage range: 10-30V DC operation, with 12V versions drawing 1.3A and 24V versions drawing 600mA.
-
Efficient power: rated at 16W with a 5000K CCT and a CRI of 70+ for crisp color rendition.
-
Easy installation: compact size and mounting options suit many spaces.
Product specifications
-
Model: 101147
-
Lumens (White): 1000
-
Voltage: 10-30V DC (12V DC version: 1.3A, 24V DC version: 600mA)
-
Watts: 16
-
CCT: 5000K
-
CRI: 70+
-
Operating temp: -31°F to 131°F (-35°C to 55°C)
-
Dimmer compatibility: PWM dimmers (fully compatible)
-
Protocols: Timed Toggled Protocol (TTP) Yes, 3PD Yes, CM Yes
-
Mounting hole diameter: 5/32"
-
Dimensions: Height 2.5" (6.35 cm), Width 5" (12.7 cm), Depth 0.63" (1.60 cm)
Designed to deliver dependable lighting where it matters, the Nevis2 is a smart, durable upgrade for any vessel or installation that demands bright, reliable illumination with flexible color tuning. Elevate visibility, reduce fatigue, and enjoy consistent light quality across your compartments with the Nevis2 Engine Room LED Light.
| Lumens (White) |
1000 |
| Voltage |
10-30vDC |
| 12v DC Amps |
1.3A |
| 24v DC Amps |
600mA |
| Rated Watts |
16 |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
5/32" |
| Height |
2.5in (6.35cm) |
| Width |
5in (12.7cm) |
| Depth |
0.63in (1.60cm) |
| Diameter |
N/A |
