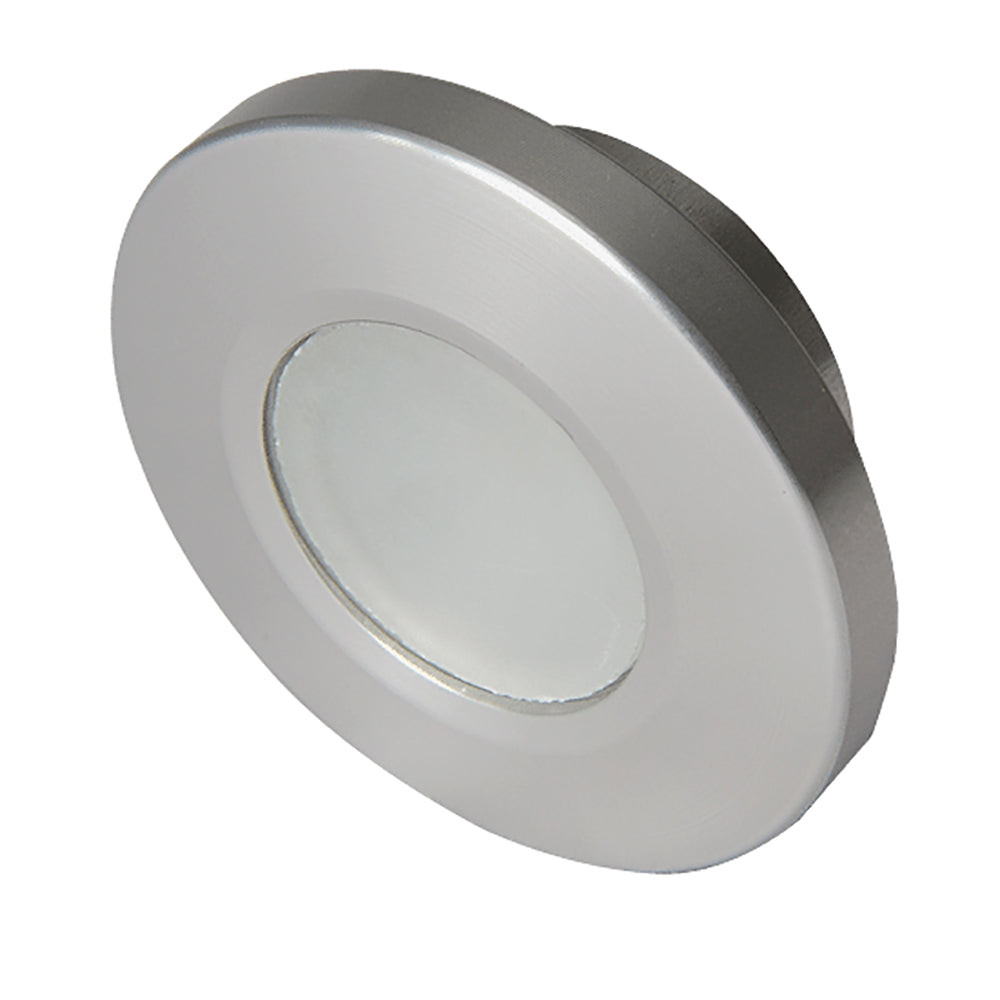

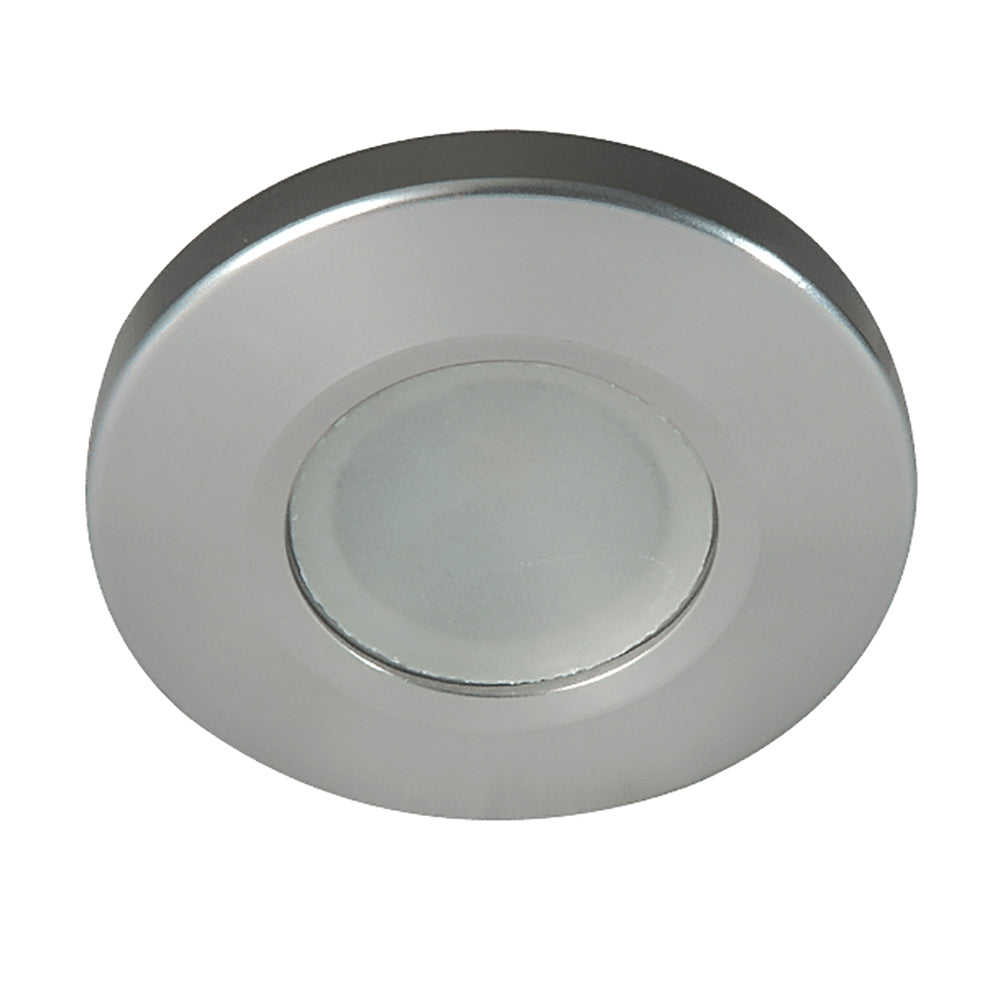

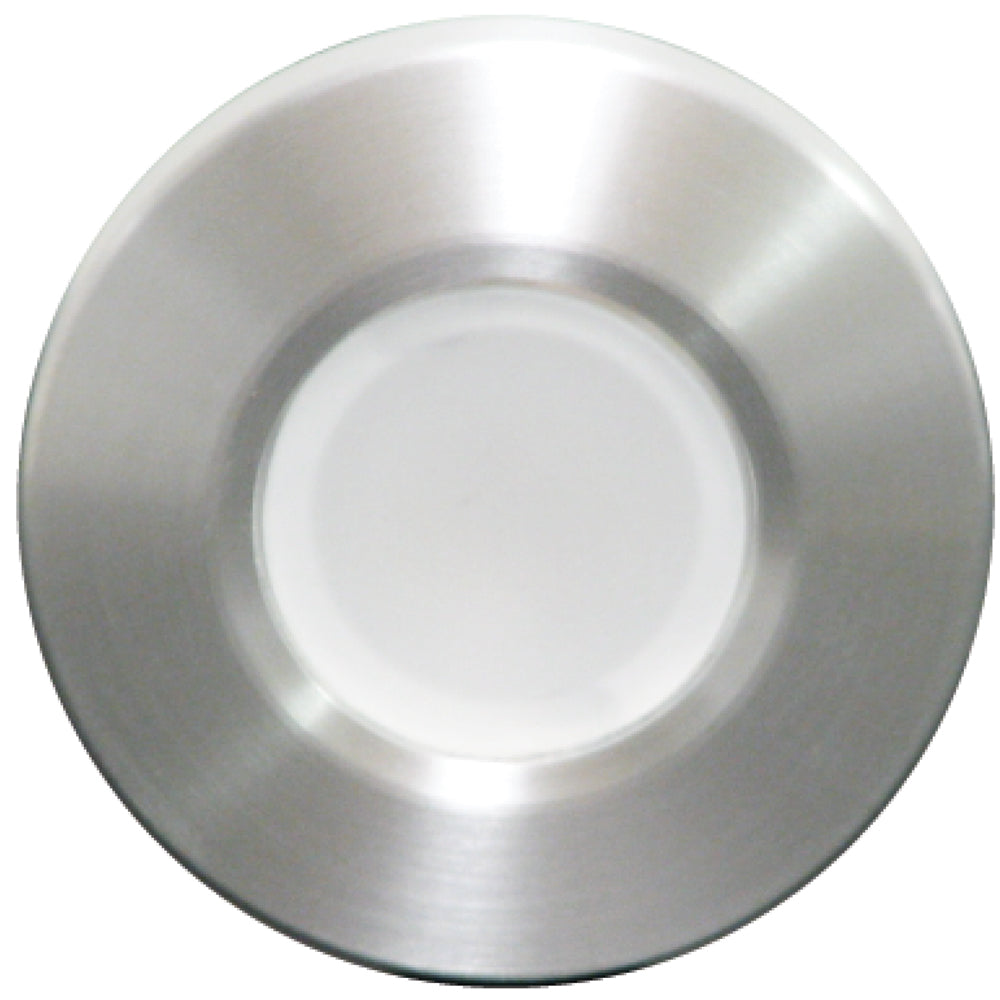

Introducing Lumitec Orbit — a flush-mount down light finished in brushed metal with 2-color White/Red dimming. Engineered for marine life, Orbit delivers class-leading output, rugged weatherproof construction, and the simplest installation in the industry, making it the go-to lighting solution for salons, staterooms, helm stations, flybridges, and hard tops.
Designed for compact spaces, Orbit features a shallow-depth profile and a secure composite mounting system that minimizes installation hassle while maximizing illumination. Fully sealed and IP67 compliant, this light is built to withstand harsh marine environments, rain, salt spray, and rough weather without compromise.
With intelligent circuitry, Orbit provides dimming and multi-color control directly in the fixture—no external control modules, specialized switches, or extra wire runs required. The two-color White/Red dimming enhances readability and ambiance at the flip of a switch, making it ideal for navigation, courtesy lighting, or mood lighting on board.
Key features
- Ultra-compact flush-mount design: depth 0.72" (1.82 cm), width 1.99" (5.05 cm) and height 1.99" (5.05 cm)
- IP67 weatherproof rating for reliable performance in all marine conditions
- Secure composite mounting system for fast, tool-free installation
- Built-in 2-color White/Red dimming with no external modules required
- Voltage: 10–30V DC (12V DC at 300 mA; 24V DC at 160 mA)
- Correlated Color Temperature: 5000K; Color Rendering Index: 70+
- Rated Watts: 4 W; White Lumens: 136
- Operating Temperature: -31 to +131 °F (-35 to +55 °C)
- Finish: Brushed; Manufacturer: Lumitec; Part No: 112502; UPC: 089300103260
- Applications: salons, staterooms, helm stations, flybridges, hard tops
Specifications
- Voltage: 10–30V DC
- Amps: 12V DC 300 mA; 24V DC 160 mA
- Correlated Color Temperature: 5000K
- Color Rendering Index: 70+
- Rated Watts: 4
- Lumens (White): 136
- Operating Temp: -31 to +131 °F (-35 to +55 °C)
- Width: 1.99" (5.05 cm)
- Height: 1.99" (5.05 cm)
- Depth: 0.72" (1.82 cm)
- Finish: Brushed
- IP Rating: IP67
