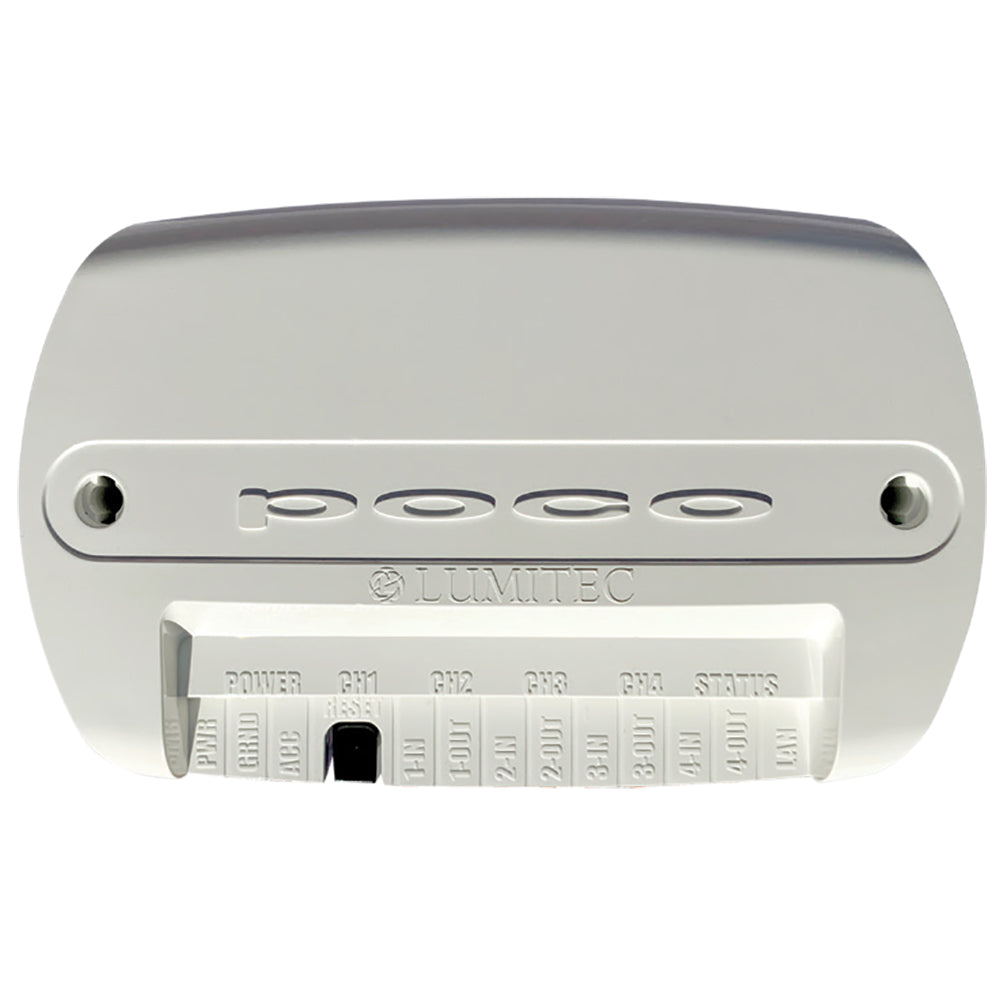

Lumitec Poco Digital Lighting Control 3.0 is a low-cost, easy-to-install onboard digital lighting control system that delivers full dimming and color control for all Lumitec PLI-enabled lights at the touch of a button. Manage lighting from any compatible MFD or connected smart device with a responsive, mobile-friendly interface, making it simple to create scenes, moods, and efficient power usage on your vessel or vehicle.
-
Full dimming and color control for Lumitec PLI-enabled lighting, all tunable via PWM for smooth, precise brightness and color adjustments.
-
Seamless MFD and smart-device integration lets you control lighting at a tap, from compatible multifunction displays or connected devices, wherever you are.
-
Enhanced Poco 3.0 features include stronger wireless security, an external API for compatibility with networked third-party automation systems, and a Triggers feature to activate Poco virtual switches from external inputs.
-
User-centric interface with a responsive design optimized for mobile devices, ensuring quick access to scenes and controls on every screen.
Technical at a glance
-
PWR: 10–30 VDC power supply. The power line must be fused prior to connection to POCO with a 3 Amp ATC blade fuse (or equivalent). Can be Constant ON or Switched with ACC line.
-
GRND: Negative 10–30 VDC supply for POCO.
-
ACC: Positive 10–30 VDC, low-current enable line to turn POCO on from a remote device (e.g., MFD). Must be powered to enable Poco.
-
1–4 IN: Channel input power. Each input line must be fused prior to connection to POCO with a 10 Amp ATC blade fuse (14 AWG, 16 inches).
-
1–4 OUT: Channel output power to the lighting circuit. Max 10 Amp load per channel; total across all channels limited to 40 Amps. Load on a channel must be Lumitec PLI-enabled lighting (or lighting capable of PWM dimming) or a standard ON/OFF device.
-
LAN: Local Area Network connection. 10/100 Base-T data via standard CAT-5 with RJ45; 18-inch cable with link indicator.
-
POWER indicators: Green when POCO is powered (PWR/ACC lines must be 10–30 VDC). CH1–4 indicators show status (red when power to the channel is present; green when the channel is on; orange for PWM dimming; orange flash for PLI data transmission).
-
STATUS: Green blinking indicates WiFi status (0 = disabled, 1 = enabled but not connected, 2 = connected to peers). Blue blinking indicates Bluetooth‑LE status (0 = disabled, 1 = enabled but not connected, 2 = connected).
Designed to simplify and elevate your lighting control, the Poco Digital Lighting Control 3.0 is ideal for marine, automotive, and outdoor installations where reliable dimming, color control, and automation accessibility are essential. It’s a compact, future-ready solution that keeps your lighting smart, secure, and easy to manage from anywhere on your network.
