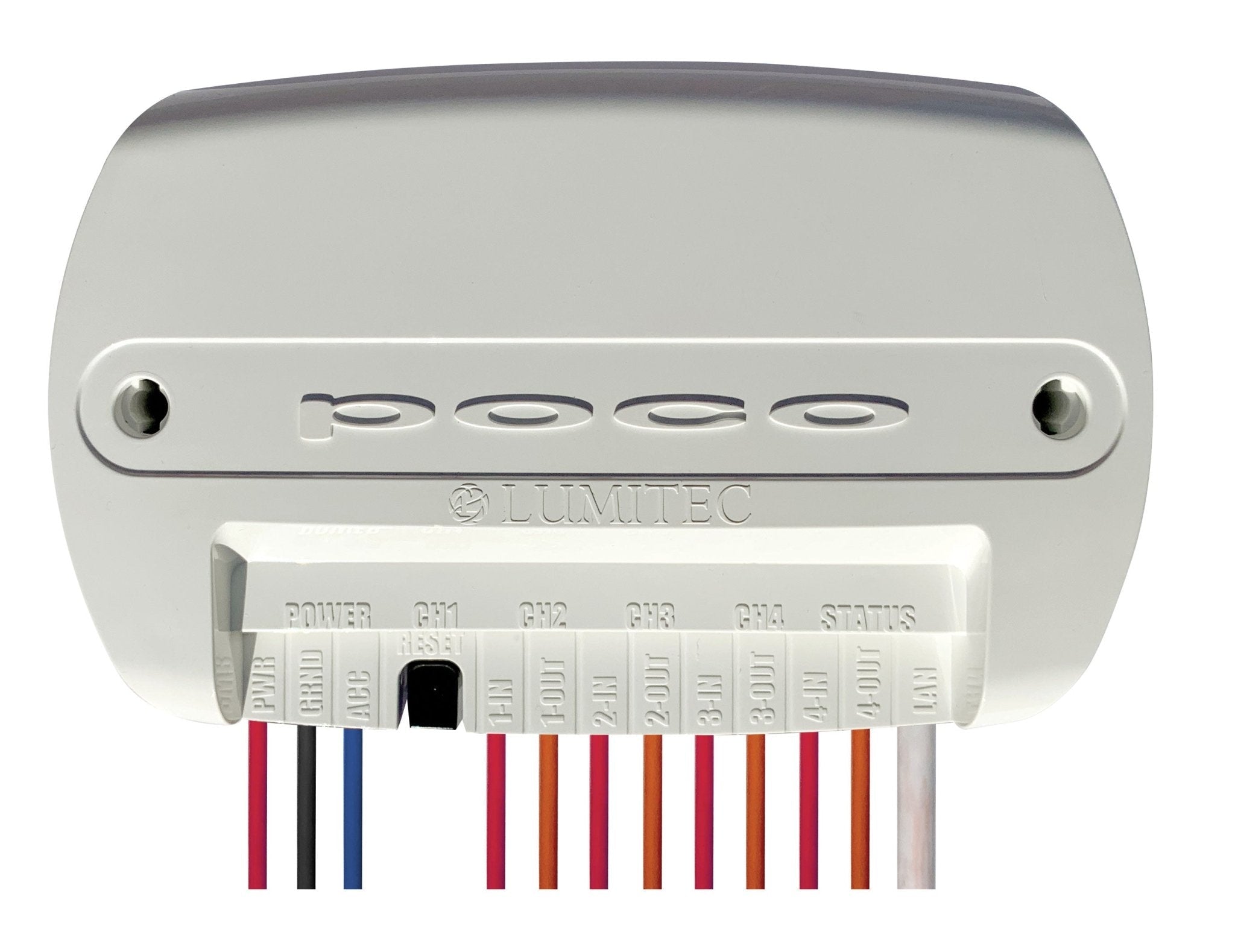

Introducing the Lumitec Poco 3 Digital Lighting Control Module — a compact, sealed, and affordable on-board lighting control solution designed for both new builds and refits. Model: 101699 Poco 3. By replacing physical circuits, wires, and switches, Poco 3 delivers sophisticated lighting control directly through a compatible MFD or connected smart device, often saving builders time and money while elevating lighting design to rival high-end yachts. When paired with Lumitec’s PLI-enabled lights, it unlocks precise color selection, intensity control, custom lighting scenes, and multiple “virtual circuits” on a single channel.
Crafted for demanding environments, Poco 3 is IP67 sealed and features a 4-channel architecture that can handle up to 10A per channel. Its compact footprint and weather-ready finish ensure easy installation in tight spaces, with a durable design built to operate across a wide temperature range (-31°F to 131°F / -35°C to 55°C) and a flexible power input of 10–30 VDC.
Key benefits
-
Low-cost, on-board lighting control that removes the need for bulky physical switches and extensive wiring
-
PLE-enabled lighting compatibility for advanced color control, lighting scenes, and virtual circuits on a single channel
-
Multiple virtual circuits on one channel, enabling scalable, customizable lighting schemes
-
Compact, completely sealed design ideal for marine installations and refits
-
Simple integration with compatible MFDs or smart devices for seamless user experiences
In addition, Poco 3 works with the Pico S8 module, which adds the ability to assign Poco virtual switch commands to physical mechanical switches (up to 8). This means your MFD can stay on a dedicated screen—or be off—while a physical switch triggers the virtual command through the Poco system (requires Pico S8 module).
Specifications
-
Finish / Housing: White
-
IP Rating: IP67
-
Max Amp/ch: 10A
-
Number of Channels: 4
-
Operating Temp: -31°F to 131°F (-35°C to 55°C)
-
PLI Enabled: Yes
-
Timed Toggle Protocol (TTP): Yes
-
UL Certified: No
-
Voltage: 10–30 VDC
-
Dimensions (D × W × H): 1.24 in × 5.5 in × 3.5 in
| Finish / Housing |
White |
| IP Rating |
IP67 |
| Max Amp/ch |
10A |
| Number of Channels |
4 |
| Op. Temp F/C |
-31/35 to + 131/55 |
| PLI Enabled |
Yes |
| Timed Toggled Protocol (TTP) |
yes |
| UL Certified |
No |
| Voltage |
10vDC-30vDC |
| Dimension D x W X H |
1.24 in x 5.5 in x 3.5 in |
