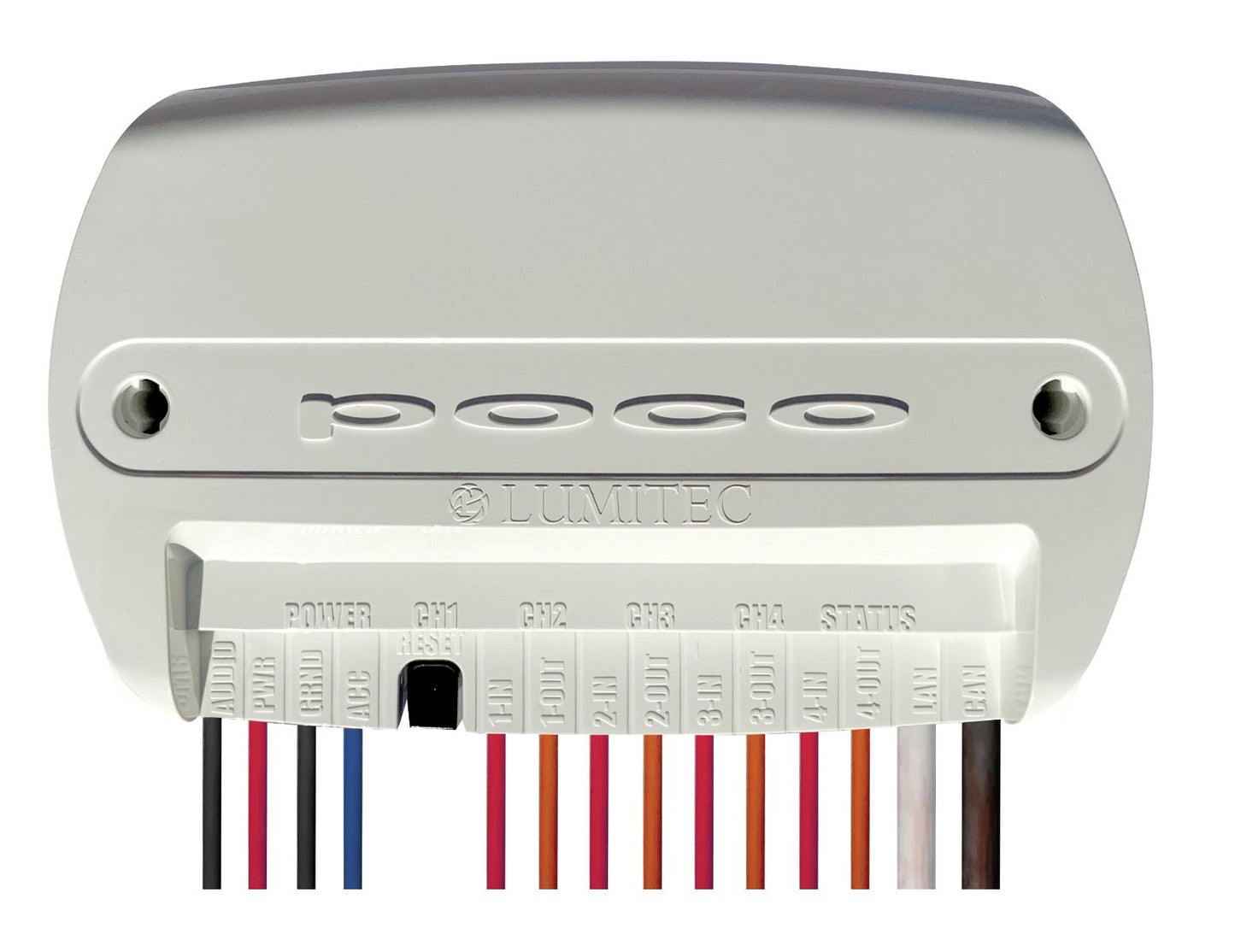

Introducing the Lumitec POCO4 Digital Lighting Control Module—Model 101925—a compact, low-cost onboard digital lighting control system that puts full command of your Lumitec (PLI-enabled) lights at the touch of a button from any compatible MFD or connected smart device.
The Poco 4 is the latest iteration of the award-winning Poco system, delivering new innovations such as intelligent sound-to-light, NMEA 2000 compatibility, and CANbus integration for seamless marine-network integration.
Its compact, completely sealed design is built for harsh environments and simple installation. By replacing traditional physical circuits, wires, and switches, Poco 4 helps builders save time and money while delivering the sophisticated control previously found only on high-end yachts. It’s suitable for both new builds and refits.
Pair with Lumitec Pico Expansion Modules to extend power and reach, enabling control of other manufacturers’ luminaires and devices that do not have built-in PLI technology. This creates a broader, more flexible lighting system without sacrificing performance.
Key specifications
-
Channels: 4
-
Max per channel: 10A
-
Voltage: 10–30 VDC
-
Finish / Housing: White
-
Dimensions: 3.5 in (8.89 cm) high × 5.5 in (13.97 cm) wide × 1.24 in (3.14 cm) deep
-
IP rating: 67
-
Operating temp: −31°F to 131°F (−35°C to 55°C)
-
PLI Enabled: Yes
-
Timed Toggled Protocol (TTP): Yes
-
CE Certified: Yes
-
UL Certified: No
-
Compatibility: NMEA 2000, CANbus, Pico Expansion Modules, and Lumitec (PLI-enabled) lights
Upgrade to the Lumitec POCO4 and enjoy smarter, simpler, and more reliable lighting control across your vessel’s entire lighting ecosystem.
| CE Certified |
Yes |
| Finish / Housing |
White |
| Height |
3.5 in (8.89cm) |
| Width |
5.5 in (13.97cm) |
| Depth |
1.24 in (3.14cm) |
| IP Rating |
67 |
| Max Amp/ch |
10A |
| Number of Channels |
4 |
| Op. Temp F/C |
-31/35 to + 131/55 |
| PLI Enabled |
Yes |
| Timed Toggled Protocol (TTP) |
Yes |
| UL Certified |
No |
| Voltage |
10vDC-30vDC |
