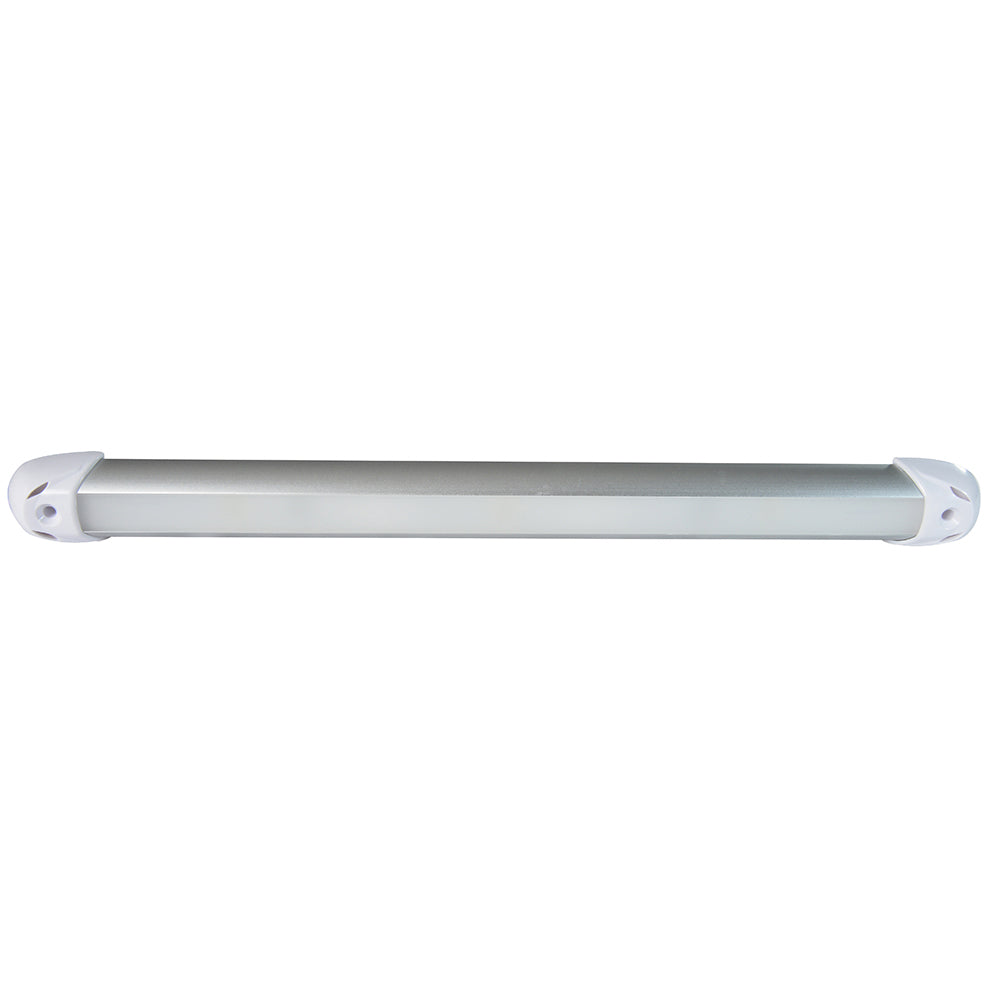

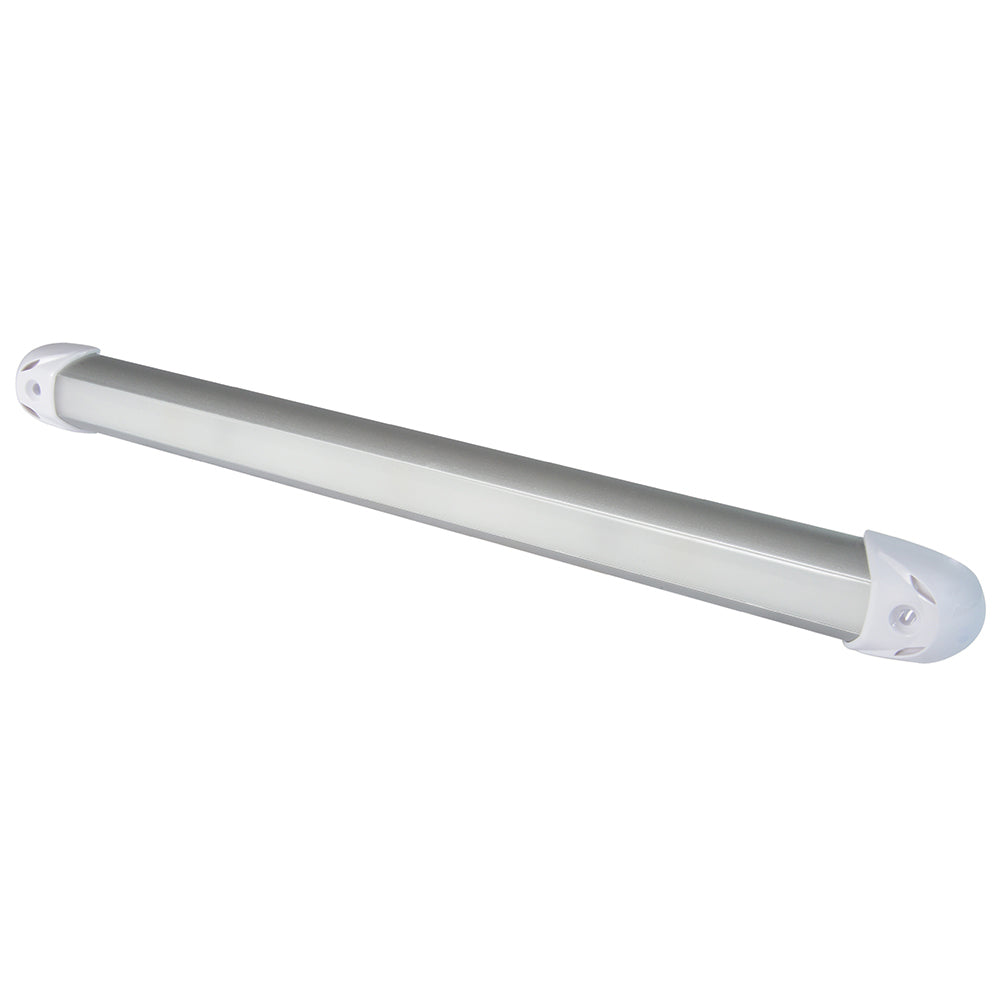

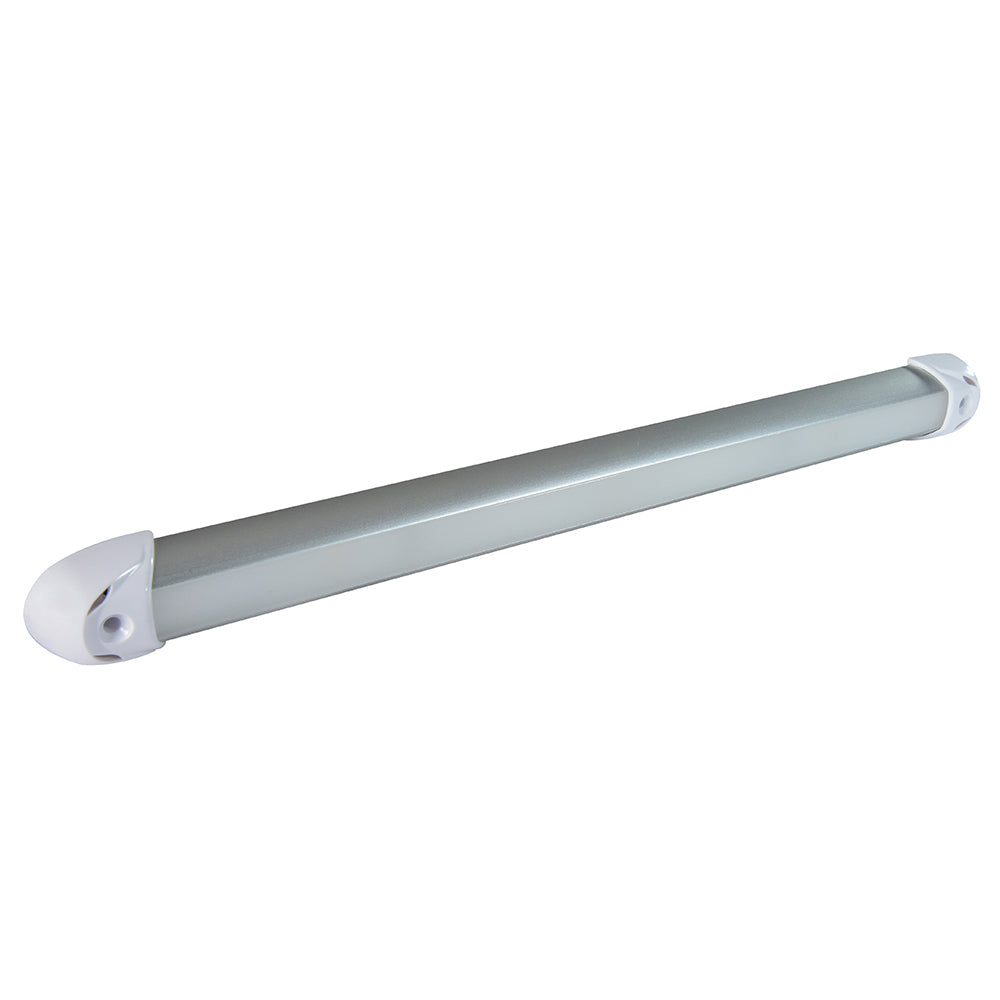

Lumitec Rail2 12" Light is a high-output, marine-grade rail light designed for boats and vehicle rails. It offers Red, Blue, or White illumination with built-in White dimming for precise mood and task lighting, all in a compact 12" form.
-
Three-color output: Red, Blue, and White illumination for versatile lighting scenarios
-
Integrated two-wire control: Dimming and color change without external control modules
-
IP67 weatherproof: Engineered to withstand spray, rain, and salt air in harsh marine environments
-
Dimensions: Width 11.72" (29.76 cm), Height 1.11" (2.82 cm), Depth 0.60" (1.53 cm)
-
White dimming capability: White channel can be smoothly dimmed for ambient or task lighting
-
Power and efficiency: Rated at 12 W; White output 490 lumens; CCT 5000 K; CRI 70+
-
Electrical specs: Voltage range 10–30 V DC; Current draw 920 mA at 12 V; 430 mA at 24 V
-
Output advantage: Up to three times more light output than Lumitec’s original Rail Light
-
Build and origin: Made in the USA; Manufacturer: Lumitec; Part No: 101243
-
Operating temperature: -31°F to +131°F (-35°C to +55°C)
-
Application: Designed for decks, hardtops, or cabin areas
The Rail2 simplifies installation with two wires for both dimming and color control, eliminating external modules. Built rugged for marine use, it delivers bright, consistent illumination across modes while withstanding spray and salt air. With 12 V and 24 V compatibility and a dedicated White dimmable channel, it’s ideal for deck, hardtop, or cabin lighting that adapts to your mood and tasks.
