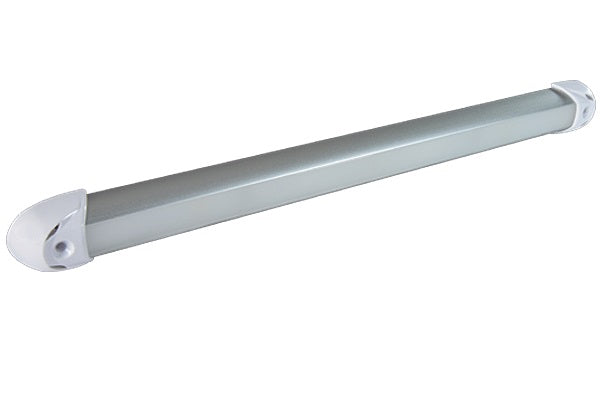

Meet the Lumitec RAIL2 12" Rail Light — a bold leap in rail-based LED lighting. This Spectrum RGBW LED light arrives in a sleek brushed finish and delivers up to 100% more light output than its predecessor, while maintaining a refined profile that suits interior spaces and exterior installations alike. Choose the Rail2 12" in warm white with dimming for interiors, or neutral white 3-color RGBW for exterior or equipment-space needs.
-
Powerful output: up to 100% more light than the previous model.
-
Spectrum RGBW LED: provides vibrant color options plus neutral white for versatile lighting.
-
Two operational versions: warm white with dimming for interiors; neutral white 3-color (RGBW) for exterior or equipment spaces.
-
All-weather reliability: completely water sealed and IP67 compliant for indoor or outdoor use.
-
Universal voltage: 10–30V DC operation (12V or 24V systems supported).
-
Performance specs: 900 lumens (white), ~11W, 5000K CCT, CRI 70+.
-
Electrical and thermal range: operating from -31°F to 131°F (-35°C to 55°C).
-
Protocol and compatibility: Timed Togged Protocol (TTP) supported; third-party dimmers not compatible; Color Match Commitment (CM) ensured for consistent color across units.
-
Durable design: brushed finish with a low-profile yet high-visibility form factor.
-
Installation footprint: mounting hole diameter 5.32" with a height of 11.72" (29.76 cm), width 1.11" (2.82 cm), and depth 0.60" (1.53 cm).
Specifications
-
Lumens (White): 900
-
Voltage: 10–30V DC
-
Current (12V): 880 mA
-
Current (24V): 460 mA
-
Power: 11W
-
CCT: 5000K
-
CRI: 70+
-
Operating Temp: -31°F to 131°F (-35°C to 55°C)
-
Protocols: Timed Togged Protocol (TTP) Yes
-
Third-Party Dimmer Compatibility: No
-
Color Match Commitment: Yes
-
Mounting Hole Diameter: 5.32"
-
Height: 11.72" (29.76 cm)
-
Width: 1.11" (2.82 cm)
-
Depth: 0.60" (1.53 cm)
Designed to deliver reliable, high-visibility lighting for rails, corridors, outdoor façades, and equipment spaces, the Lumitec RAIL2 combines a rugged IP67 build with a refined brushed finish and an illuminating spectrum that covers both practical white illumination and customizable color options. Whether upgrading interior mood lighting or lighting up exterior features, Rail2 is built to perform, endure, and look exceptional doing it.
| Lumens (White) |
900 |
| Voltage |
10-30vDC |
| 12v DC Amps |
880mA |
| 24v DC Amps |
460mA |
| Rated Watts |
11 |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to +131/55 |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility |
No |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
5.32" |
| Height |
11.72in (29.76cm) |
| Width |
1.11in (2.82cm) |
| Depth |
0.60in (1.53cm) |
| Diameter |
N/A |
