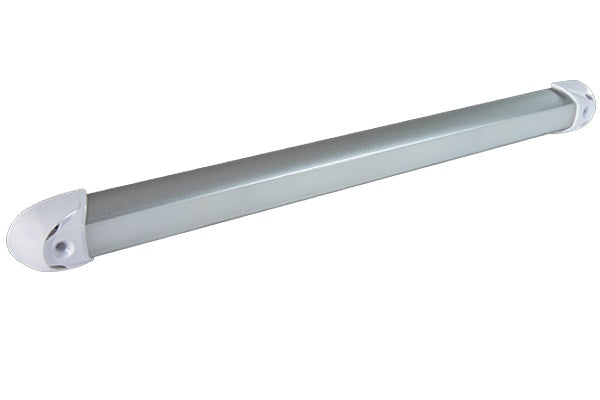

Introducing the Lumitec RAIL2 12" Rail Light — a bold leap in brightness, durability, and style. Finished in brushed metal, this 12‑inch LED rail light delivers superior output and a sleek silhouette for any interior or exterior installation. With up to 100% more light than its predecessor, Rail2 raises the standard for rail lighting while keeping a refined, modern look.
Key features
-
Brushed finish with a low-profile design that fits tight spaces without sacrificing performance.
-
Up to 900 lumens (White) for clear, bright illumination with reliable color rendering (CRI 70+).
-
12/24V DC operation — accepts 10–30V DC for versatile marine, RV, or industrial use.
-
Low current draw — 880 mA at 12V and 460 mA at 24V, with rated power of 11W.
-
Two color options — warm white with dimming for interior spaces, or neutral white 3-color version for exterior or equipment-space needs.
-
Waterproof and rugged — completely water sealed and IP67 compliant for durable interior and exterior performance.
-
Tri-color/white LED capability — White/Red/Blue LED configuration provides versatile lighting options and easy color matching.
-
Dimmer compatibility and controls — Timed Toggled Protocol (TTP) and 3PD compatibility with Color Match Commitment for precise lighting control.
-
Compact dimensions — width 11.72" (29.76 cm), height 1.11" (2.82 cm), depth 0.60" (1.53 cm); mounting hole diameter 5/32" for secure installation.
Why choose Rail2
Rail2 combines a sleek aesthetic with robust performance. Whether you’re illuminating a cockpit, cabin, deck, or equipment area, this 12" rail light delivers bright, consistent light where you need it most. Its IP67 rating ensures reliable operation in challenging environments, while the dual configuration options let you tailor warmth, color, and dimming to your space. With its enhanced output, modern finish, and flexible electrical compatibility, the Lumitec RAIL2 is the ultimate upgrade for any rail lighting application.
| Lumens (White) |
900 |
| Voltage |
10-30vDC |
| 12v DC Amps |
880mA |
| 24v DC Amps |
460mA |
| Rated Watts |
11 |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
5/32" |
| Height |
1.11in (2.82cm) |
| Width |
11.72in (29.76cm) |
| Depth |
0.60in (1.53cm) |
| Diameter |
N/A |
