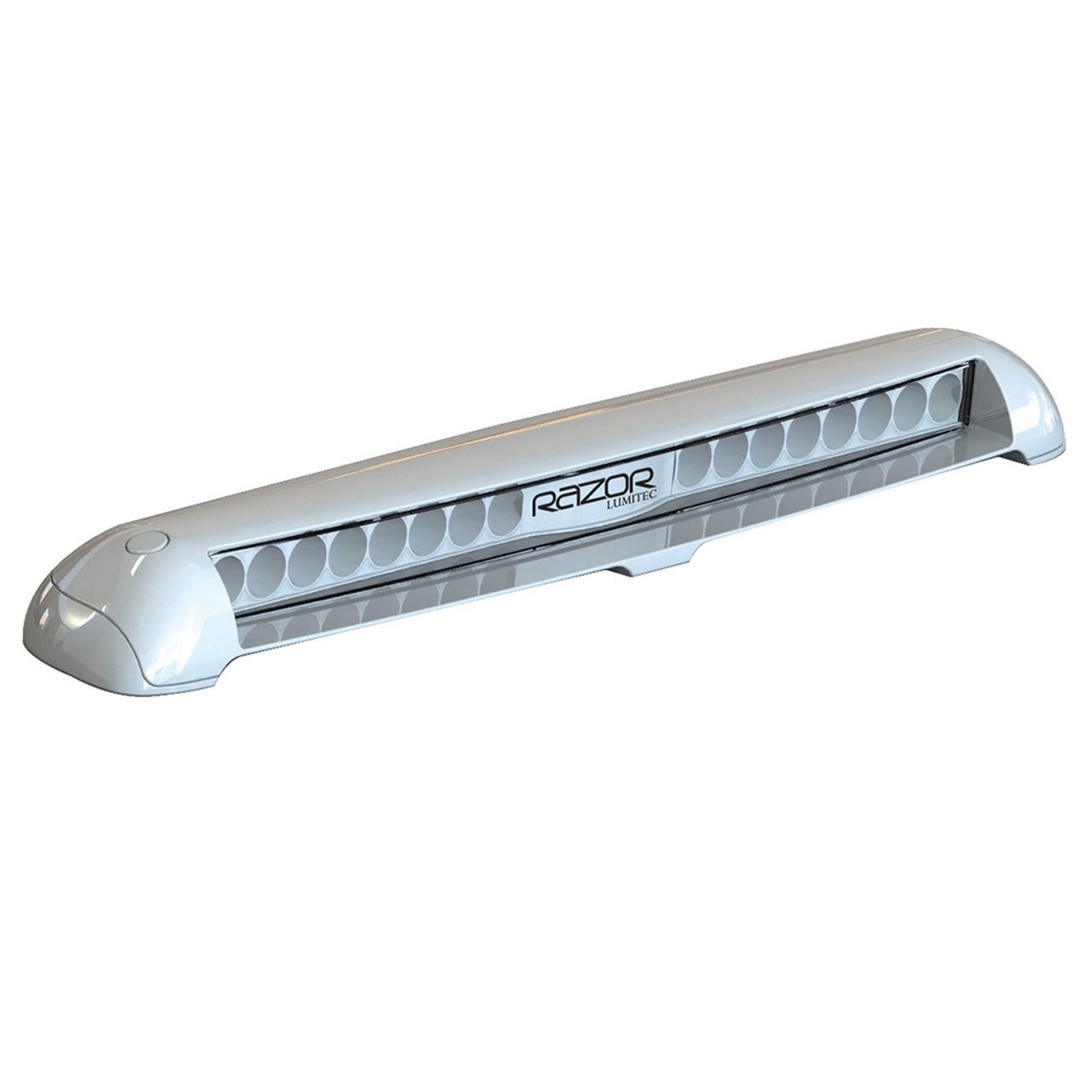

Meet Razor from Lumitec — the world’s first flush-mount light bar, engineered to blend seamlessly with your vessel’s hardtop, arch, or pilothouse. Its die-cast aluminum housing and ultra-low profile deliver a sleek, unobtrusive look while delivering industry-leading illumination where you need it most.
Why Razor Stands Out
-
Flush-mount design for a clean, integrated silhouette that minimizes wind and water resistance without compromising light output.
-
Die-cast aluminum housing combines strength with durability in harsh marine environments.
-
Advanced thermal management using thermally-vetted Lumitec reference designs to prevent overheating and protect your hardtops when compared with pods from other manufacturers.
-
Two beam patterns available — spot or flood — so you can aim the light exactly where you need it.
-
Surface-mount option available for direct, unmodified hardtop mounting with a similarly clean look and solid thermal performance.
-
High-output white light with 10,000+ true lumens, delivering clear visibility across wide areas or focused distances.
-
Wide voltage tolerance supports 12V or 24V systems (10–30V DC input) for versatile marine use.
What Razor Delivers
-
Light output: White beam, 10,000+ TRUE lumens for bright, reliable visibility.
-
Color temperature: 5000K for crisp, daylight-like color accuracy (CRI 70+).
-
Electrical: 12VDC (9A) / 24VDC (4.2A) draw; Voltage range 10–30V DC.
-
Environment: Operating temperature from -31°F to +131°F (-35°C to +55°C).
-
Dimensions: Height 1.5 in (3.81 cm) • Width 18 in (45.72 cm) • Depth 3.5 in (8.89 cm).
-
Color & housing: White light output; White housing for a cohesive look with most vessels.
Specifications at a Glance
-
Color Output: White
-
Lumens: 10,000+ TRUE measured lumens
-
Voltage: 10–30V DC
-
Amps: 9A at 12V; 4.2A at 24V
-
Beam Options: Spot or Flood
-
CCT: 5000K
-
CRI: 70+
-
Operating Temp: -31°F to +131°F (-35°C to +55°C)
-
Mounting: Flush Mount; Surface Mount also available
-
In the Box: Razor Flood Light (Surface Mount)
| COLOR OUTPUT |
White |
| LUMENS |
10,000+ TRUE measured lumens |
| VOLTAGE |
10-30vDC |
| 12VDC Amps |
9A |
| 24VDC Amps |
4.2A |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP |
No |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM) |
No |
| Mounting Hole Diameter |
N/A |
| Height |
1.5in (3.81 cm) |
| Width |
18in (45.72cm) |
| Depth |
3.5in (8.89 cm) |
| Diameter |
N/A |
| Housing |
White |
