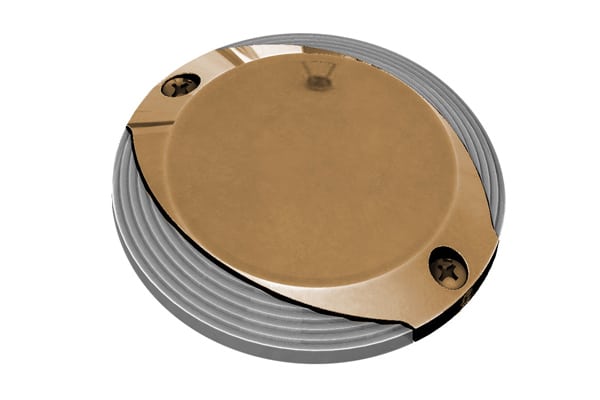

The Lumitec Scallop Pathway Light in Warm White with Bronze housing is a sleek, low-profile fixture designed for pathways, docks, and entryways. ADA-compliant and PLI-compatible, it offers flexible installation that pairs safety with refined exterior style.
-
Finish/Housing: Bronze housing with a hand-polished finish; finish options include hand-polished Bronze or hand-polished 316 Stainless Steel to match your exterior aesthetic
-
Light Output & Color: 170 lumens at 4.3W with Warm White light (CCT 5000K), CRI 70+
-
Voltage & Power: 10-30V DC operation, compatible with standard 12-24V DC power supplies; current draw 360 mA at 12V DC and 180 mA at 24V DC
-
Beam & Optics: Beam-angle design engineered to shine where it matters while minimizing glare on adjacent surfaces
-
Durability: IP67 water sealed for complete protection against dust and water exposure
-
Dimensions: Depth 0.6", Diameter 4" (Bronze housing)
-
Control & Compatibility: TTP enabled and 3PD third-party dimmer compatibility; Color Match Commitment (CM); compatible with Mantis dock light kit or Kraken system
-
Model: 101630
-
Designed to Pair With: Specifically designed to pair with a standard 12-24V DC power supply for consistent, comfortable illumination along pathways, docks, and entryways
Designed to pair with a standard 12-24V DC power supply, the Scallop Pathway Light offers reliable, energy-efficient illumination perfect for walkways, marina docks, and entryways. Its compact 0.6" profile and 4" diameter keep a discreet footprint while delivering 170 lumens at 4.3W of Warm White light. The fixture is IP67-rated for harsh weather and submersion resilience, ADA-compliant and PLI-compatible for accessible installation, and supports flexible control through TTP and 3PD dimming. With a durable bronze finish and options to match other materials (including hand-polished Bronze or hand-polished 316 Stainless Steel), it combines safety with refined outdoor style for long-lasting outdoor spaces.
| Lumens (White) |
170 |
| Voltage |
10-30vDC |
| 12v DC Amps |
360mA |
| 24v DC Amps |
180mA |
| Rated Watts |
4.3W |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
N/A |
| Height |
N/A |
| Width |
N/A |
| Depth |
0.6" |
| Diameter |
4" |
| Finish/Housing |
Bronze |
