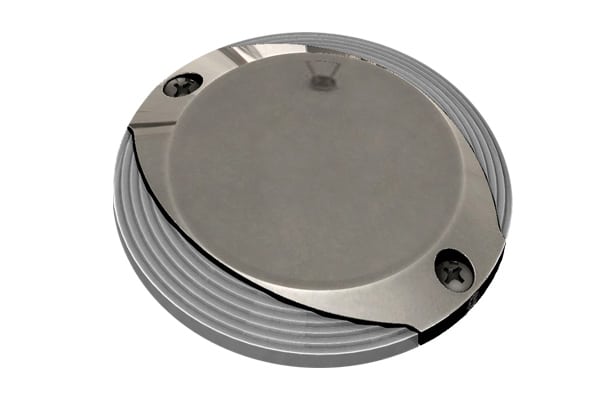

Introducing the Lumitec Scallop Pathway Light—a compact, low-profile exterior fixture designed for docks, walkways, and entryways. It’s the world’s first ADA-compliant, PLI-compatible pathway light, delivering safe, accessible illumination with a refined, weatherproof build.
-
Voltage & Power: 10–30V DC input; 12V DC draws 440mA; 24V DC draws 240mA; ~5.2W.
-
Lumen & Color: 100 lumens; CCT 5000K; CRI 70+
-
Finish & Housing: Hand-polished 316 stainless steel or hand-polished bronze finish.
-
Durability: IP67 rating for complete water sealing in harsh outdoor conditions.
-
Beam & Glare: Glare-minimized beam design delivers clean, even illumination with minimal stray light.
-
Size & Footprint: Diameter 3.8", Depth 0.56" (Model 101629).
-
Dock Compatibility: Dock-compatible with standard systems; designed for integration with Mantis dock light kits or Kraken dock light systems.
-
Smart Features: Timed Toggling Protocol (TTP) enabled; Third-Party Dimmer Compatibility (3PD); Color Match Commitment (CM) ensures consistent lighting across installations.
-
ADA & PLI Compatibility: ADA-compliant and PLI-compatible pathway light for safe, accessible illumination.
This fixture provides reliable, daylight-like illumination along pathways and decks while blending premium materials with practical design. Its ADA-compliance, low-profile form, and compatibility with existing dock systems make it a thoughtful choice for safety, accessibility, and curb appeal in outdoor spaces.
| Lumens (White) |
100 |
| Voltage |
10-30vDC |
| 12v DC Amps |
440mA |
| 24v DC Amps |
240mA |
| Related Watts |
5.2w |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
N/A |
| Height |
N/A |
| Width |
N/A |
| Depth |
.56" |
| Diameter |
3.8" |
| Finish/Housing |
Stainless Steel |
