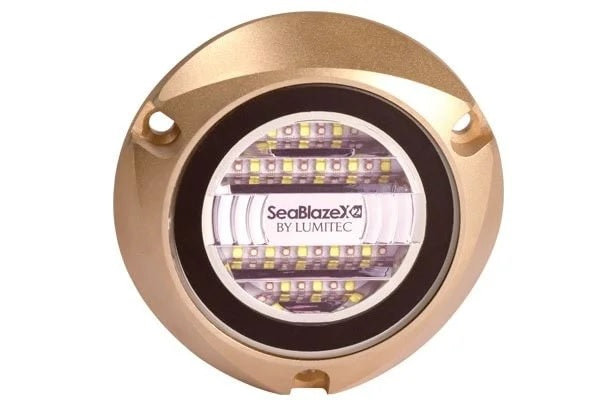

Introducing the Lumitec SeaBlazeX2 Dual Color Blue/White Underwater Light — a revolution in marine illumination. Model 101516 delivers the iconic performance you expect from SeaBlaze with a 60% boost in output, all wrapped in a rugged bronze housing and sealed to IP68 standards. This surface-mount beacon is designed for easy installation, requiring just a small 1/2" through-hull hole and a simple 3-wire hookup with no external controller boxes.
Why SeaBlazeX2 Stands Out
-
Dual Color Blue/White output for versatile underwater lighting and signaling.
-
Over 6,000 lumens of white illumination (integrating-sphere-measured) for maximum visibility below the waterline.
-
60% greater output than its predecessor, delivering more light with the same compact form factor.
-
Surface mount, no external drivers — streamlined installation and cleaner transom aesthetics.
-
Bronze housing with heat-tempered glass for enduring durability in harsh marine environments.
-
IP68 sealed and tested for reliability (ASTMB-117 salt spray) with 2,000+ hours of accelerated corrosion resistance.
- Designed and manufactured in the USA with 3-year warranty on all Lumitec products.
Built to withstand the rigors of sea life, SeaBlazeX2 combines robust construction with precise color rendering to enhance boat aesthetics, navigation, and safety. Its 6500K CCT and 70+ CRI ensure vivid, true-to-tone illumination that remains consistent under challenging conditions.
Key Specifications
-
Lumens (White): 6000
-
Voltage: 10-30V DC (works on 12V or 24V systems)
-
Current Draw: 5A at 12V; 2.5A at 24V
-
Rated Watts: 60W
-
CCT: 6500K
-
CRI: 70+
-
Operating Temperature: -31°F to +131°F (-35°C to +55°C)
-
Installation: Surface mount with 1/2" through-hull hole; 3-wire hookup; no external driver boxes
-
Finish/Housing: Bronze
-
Dimensions: Diameter 3.94" (8.86 cm); Depth 0.85" (2.15 cm)
-
Durability: IP68 sealed; ASTMB-117 Salt Spray Chamber testing
-
Warranty: 3-year
-
Notes: Timed Toggled Protocol (TTP) supported; Third Party Dimmer Compatibility (3PD) No; Color Match Commitment (CM) No
-
Other: United States design and manufacture
Upgrade your vessel with SeaBlazeX2 and enjoy industry-leading brightness, reliable dual-color versatility, and a refined installation that keeps your transom clean and streamlined. When performance and value are non-negotiable, Lumitec remains the standard.
| Lumens(White) |
6000 |
| Voltage |
10-30vDC |
| 12v DC Amps |
5A |
| 24v DC Amps |
2.5A |
| Rated Watts |
60 |
| CCT |
6500 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM) |
No |
| Finish/Housiing |
Bronze |
| Height |
N/A |
| Width |
N/A |
| Depth |
0.85 in (2.15 cm) |
| Diameter |
3.94 in (8.86 cm) |
