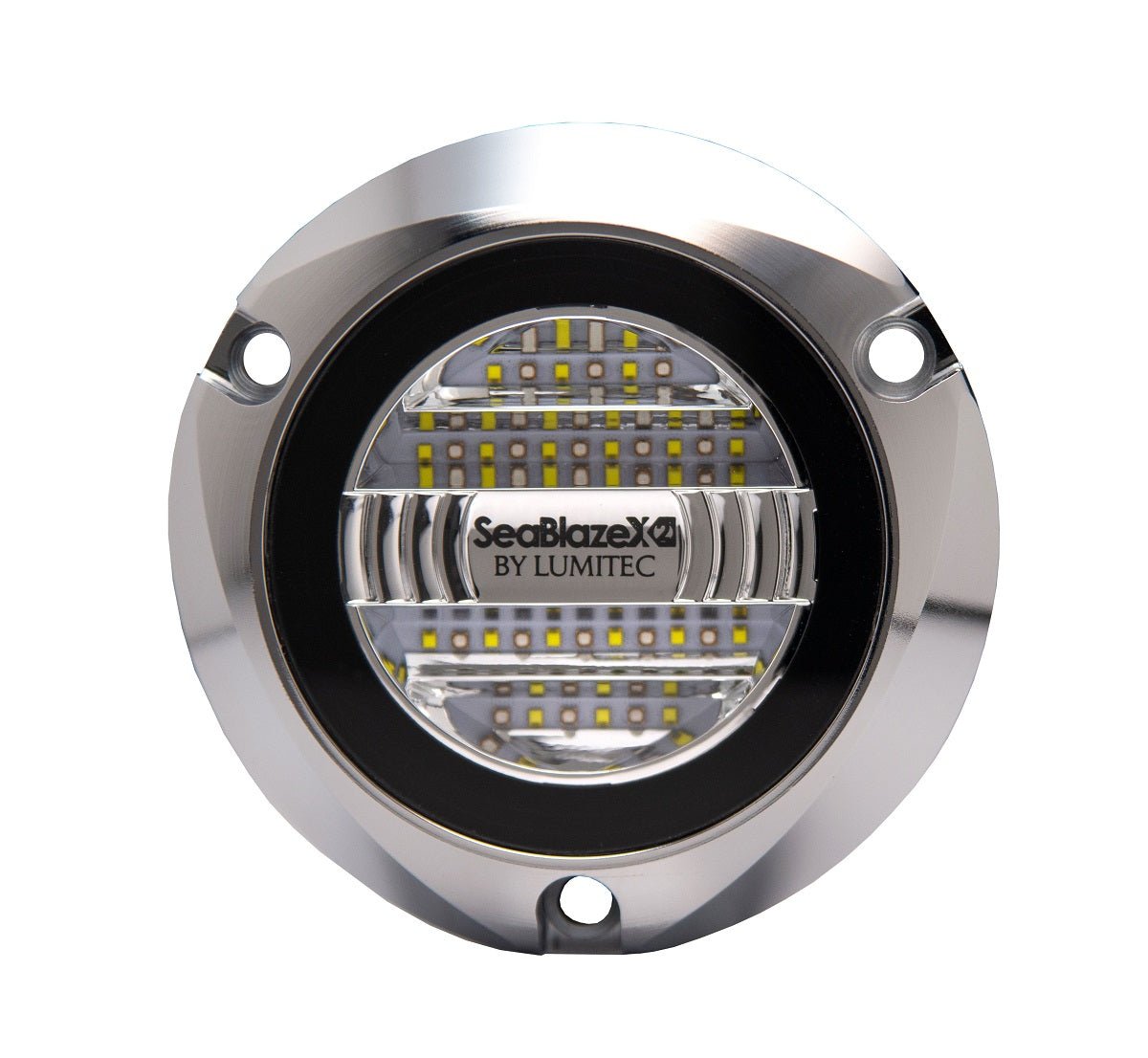

The Lumitec SeaBlazeX2 Dual-Color LED Underwater Light is a marine-grade, surface-mount fixture that delivers bright white illumination with blue/white color options, designed for serious boaters who demand reliability in saltwater environments.
-
Dual-color illumination: White output (6000 lumens) plus blue/white dual-color package with a color cycle mode for ambience or signaling.
-
High output in a compact housing: 60W total, operates from 10–30V DC; 5A at 12V, 2.5A at 24V.
-
Surface-mount with through-hull access: Surface-mount installation with a small 1/2" through-hull hole and a simple 3-wire hookup; no external driver boxes required.
-
Marine-grade build: Polished bronze housing with a heat-tempered glass lens for corrosion resistance in saltwater environments.
-
IP68 waterproofing: Engineered for permanent submersion in harsh marine conditions.
-
Durability & craftsmanship: Designed and manufactured in the USA; tested for >2000 hours in ASTMB-117 salt spray chamber; backed by a 3-year warranty.
-
Compact dimensions: 3.94" diameter (8.86 cm) and 0.85" depth (2.15 cm) to fit tight hull spaces.
-
Operating range: Wide temperature tolerance from -31°F to +131°F (-35°C to +55°C).
-
Electrical & compatibility: 10–30V DC range; 3-wire configuration; no external driver required.
-
Lighting specifics: CCT 6500K, CRI 70+, 6000 lumens (white).
-
Signals & control: Timed Toggled Protocol (TTP) supported; Blue/White color cycle lighting available for ambience.
The SeaBlazeX2 elevates nighttime boating with a bright 6000-lumen white output and versatile blue/white options, including color cycle lighting for ambience or signaling. Its rugged bronze housing, polished finish, and heat-tempered lens provide long-term corrosion resistance in saltwater. With IP68 sealing, a 1/2" through-hull installation, and a single 3-wire connection, it’s designed for clean, straightforward installation. The 10–30V DC range ensures compatibility with most marine electrical systems, while the wide temperature tolerance and salt-spray testing support reliability across seas and climates. Backed by a USA-made craftsmanship and a 3-year warranty, SeaBlazeX2 offers dependable performance and value for serious boaters.
| Lumens |
(White):6000 |
| Voltage |
10-30vDC |
| 12v DC Amps |
5A |
| 24v DC Amps |
2.5A |
| Rated Watts |
60 |
| CCT |
6500 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM) |
No |
| Finish / Housing |
Polished |
| Height |
N/A |
| Width |
N/A |
| Depth |
0.85 in (2.15 cm) |
| Diameter |
3.94 in (8.86 cm) |
