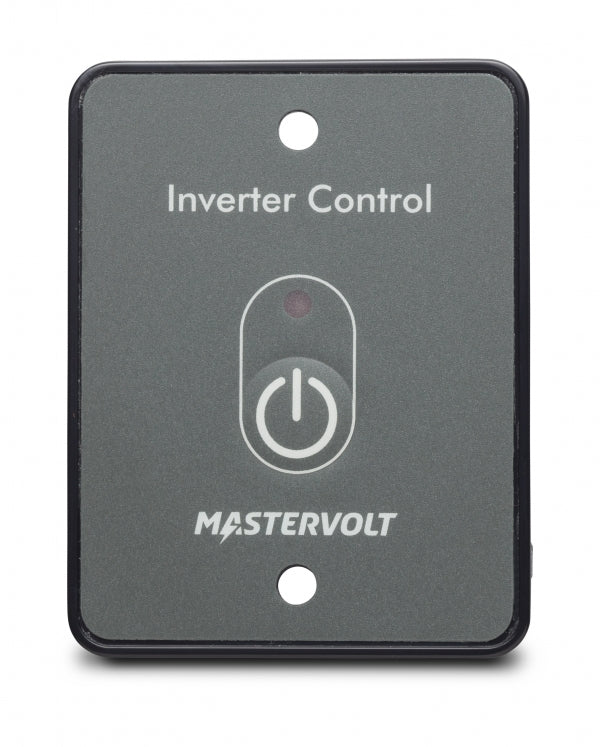

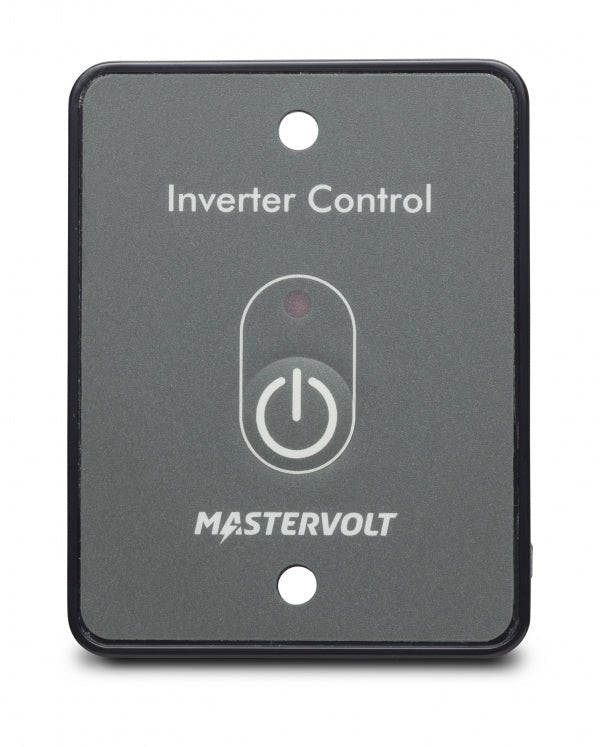

Take command of your Mastervolt system with the AC Master Remote Control, Model 70405080. This compact remote provides reliable on/off control for the Mastervolt AC Master sine wave inverter, and features a clear on/off indicator that shows when the inverter is active.
It supports automatic operation via an auxiliary input (12/24 V) to turn the inverter on or off automatically when you switch on onboard AC power or start an engine. The AUX port accepts 10.5–31 V DC for versatile integration with your power setup.
Key features
-
On/off control with clear indicator: Easily see when your AC Master inverter is active.
-
Automatic start/stop via AUX input: Use a 12/24 V auxiliary signal to turn the inverter on or off automatically when you switch on onboard AC power or start an engine. AUX port supports 10.5–31 V DC.
-
Extended reach with included cable: Comes with an 8 m (25 ft) cable for flexible installation.
-
Low standby power: Draws less than 40 mA in standby, preserving battery life.
-
Rugged operating range: Suitable for marine and mobile environments, with an operating temperature of 32 °F to 104 °F.
Technical specifications
-
Model: 70405080
-
Input voltage range (AUX port): 10.5–31 V DC
-
Standby power: < 40 mA
-
Operating temperature: 32 °F to 104 °F
-
Dimensions (H × W): 2.2" × 2.9" × 0.0"
-
Cable length included: 8 m (25 ft)
-
Inverter compatibility: Mastervolt AC Master sine wave inverter
| Input voltage range AUX port (optional use) |
10.5-31 V DC |
| Standby power |
< 40 mA |
| Operating temperature |
32 °F to 104 °F |
| Dimensions, hxw |
2.2 x 2.9 x 0.0 inch |
