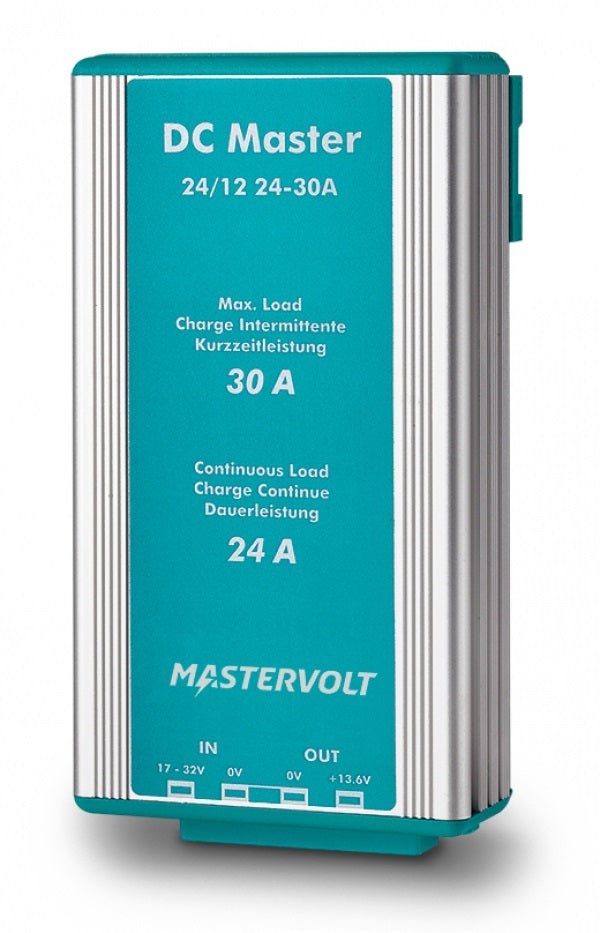

Mastervolt DC Master 24/12-24A 24VDC To 13.6 Vdc - 24A

Meet the Mastervolt DC Master 24/12-24A, a compact non-isolated DC-DC converter designed for recreational and semi-professional use. It converts 24V input into a stable 13.6V output, delivering reliable power for your onboard electronics with impressive efficiency.

Designed for easy installation, it includes a mounting bracket, screws and fasteners for a secure, quick setup. Smart electronics minimize heat generation, providing continuous output with a helpful two-minute boost for short power demands when you need it most.

• Continuous output current: up to 24A at 13.6V (nominal output power 326W, max 408W)
• Boost capability: up to 30A for 2 minutes for short power bursts
• Efficient, quiet operation: natural cooling and < 30 dBA at 1 m
• Wide input range: nominal 24V input with 20–32V tolerance
• Non-isolated, stabilised: no galvanic isolation required; stabilised output
• Rugged and compliant: IP53 protection; CE and E-mark approvals

Technical specifications

• Nominal output voltage: 13.6 V
• Max output power: 408 W
• Nominal output power: 326 W
• Max output current (2 min): 30 A
• Continuous output current: 24 A
• Nominal input voltage: 24 V
• Input voltage range: 20–32 V
• Galvanic isolation: No
• Stabilised: Yes
• Connections: Fast-on
• Temperature range (ambient): -13 °F to 176 °F
• Sound level: < 30 dBA at 1 m
• Protection degree: IP53
• Cooling: Natural cooling
• Dimensions: 6.6 x 3.4 x 2.0 inches

What's in the box

• DC Master 24/12-24A Non isolated
• Mounting bracket with fasteners
• Documentation

Power your setup with a dependable, compact DC-DC converter that keeps your 24V system steady and ready. The Mastervolt DC Master 24/12-24A delivers consistent performance, easy installation, and minimal heat for reliable operation wherever you go.
