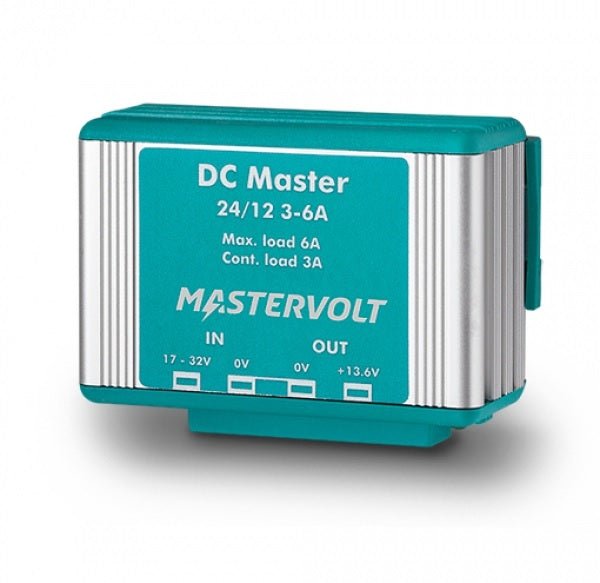

Meet the Mastervolt DC Master 24/12-3A, a compact non-isolated DC-DC converter that steps down 24V systems to a stable 13.6V for electronics on boats, RVs, and mobile setups. With continuous 3A output and a peak boost of up to 6A for two minutes, it keeps critical devices powered when you need extra punch.
Designed for recreational and semi-professional use, this unit is easy to install using the included mounting bracket, screws and fasteners. Smart electronics minimize heat buildup and ensure reliable, continuous operation in compact spaces.
Key specifications
-
Nominal input voltage: 24V
-
Input voltage range: 20-32V
-
Nominal output voltage: 13.6V
-
Max output power: 82W
-
Nominal output power: 41W
-
Max output current (2 min intervals): 6A
-
Continuous output current: 3A
-
Galvanic isolation: No
-
Stabilised: Yes
-
Protection / IP rating: IP53
-
Cooling: Natural cooling
-
Sound level: under 30 dBA at 1 m
-
Ambient temperature range: -13 °F to 176 °F
-
Dimensions (L × W × H): 2.6 x 3.4 x 2.0 in
The compact design and robust build make it suitable for mobile power systems, with CE and E-mark approvals for regional compliance. Includes a mounting bracket with fasteners and documentation for quick, hassle-free installation.
What's in the box
- DC Master 24/12-3A Non isolated
- Mounting bracket with fasteners
- Documentation
| General Specifications |
| Nominal output voltage |
13.6 V |
| Max. output power |
82W |
| Nominal output power |
41W |
| Max. output current (for 2 min. intervals) |
6A |
| Continuous output current |
3A |
| Nominal input voltage |
24V |
| Input voltage range |
20-32V |
| Galvanic isolation |
No |
| Stabilised |
Yes |
| Approvals |
CE, E-mark |
| Technical Specification |
| DC consumption |
< 10 mA |
| Connections |
Fast-on |
| Temperature range (ambient temp.) |
-13 °F to 176 °F |
| Sound level |
< 30 dBA at 1 mtr |
| Protection degree |
IP53 |
| Cooling |
Natural cooling |
| Dimensions |
2.6 x 3.4 x 2.0 inch |
