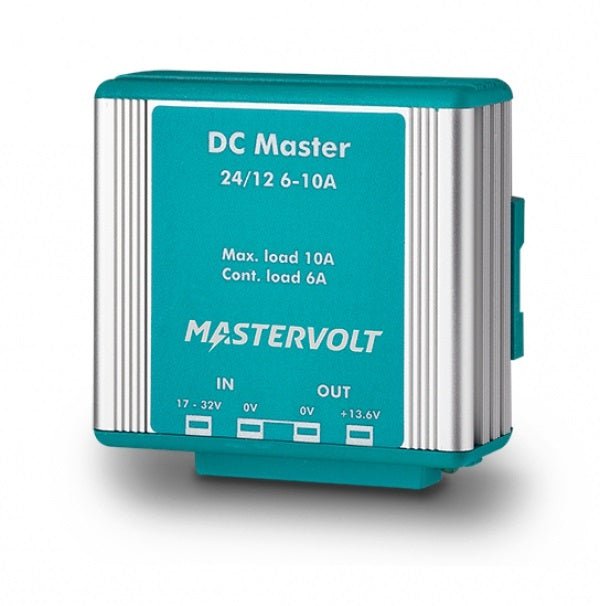

Power your marine, RV, or off-grid systems with the Mastervolt DC Master 24/12-6A. This compact, non-isolated DC-DC converter steps 24V down to a stable 13.6V, delivering dependable power for continuous use and a quick boost when you need extra oomph.
-
Non-isolated DC-DC converter from 24V input to 13.6V output, purpose-built for recreational and semi-professional applications.
-
Continuous output 6A with a short-term boost up to 10A for 2 minutes to handle transient power needs.
-
Nominal output 82W and maximum output 136W capacity, supporting steady performance across a wide range of loads.
-
Smart, heat-conscious design with no unnecessary heat generation for reliable operation in demanding environments.
-
Low-noise operation (less than 30 dBA at 1 m) with natural cooling for discreet performance.
-
Easy installation — includes mounting bracket, screws and fasteners for quick setup.
-
Compact and rugged design: dimensions 3.5 x 3.4 x 2.0 inches and IP53 protection for protection against dust and moisture.
-
Stable output with stabilised voltage and galvanic isolation: No (non-isolated) for straightforward integration.
-
Wide operating range: nominal input voltage 24V with 20–32V input range, suitable for varied power systems.
-
Quiet, efficient, and compliant with CE and E-mark approvals for trusted performance.
Technical specifications
- Nominal input voltage: 24V
- Input voltage range: 20–32V
- Nominal output voltage: 13.6V
- Nominal output power: 82W
- Max output power: 136W
- Max output current (2 min intervals): 10A
- Continuous output current: 6A
- Galvanic isolation: No (non-isolated)
- Stabilised output: Yes
- DC consumption: < 10 mA
- Protection: IP53
- Cooling: Natural cooling
- Ambient temperature range: -13 °F to 176 °F
- Sound level: < 30 dBA at 1 m
- Model: 81400200
What's in the box
- DC Master 24/12-6A Non isolated
- Mounting bracket with fasteners
- Documentation
| General Specifications |
| Nominal output voltage |
13.6 V |
| Max. output power |
136W |
| Nominal output power |
82W |
| Max. output current (for 2 min. intervals) |
10A |
| Continuous output current |
6A |
| Nominal input voltage |
24V |
| Input voltage range |
20-32V |
| Galvanic isolation |
No |
| Stabilised |
Yes |
| Approvals |
CE, E-mark |
| Technical Specification |
| DC consumption |
< 10 mA |
| Connections |
Fast-on |
| Temperature range (ambient temp.) |
-13 °F to 176 °F |
| Sound level |
< 30 dBA at 1 mtr |
| Protection degree |
IP53 |
| Cooling |
Natural cooling |
| Dimensions |
3.5 x 3.4 x 2.0 inch |
