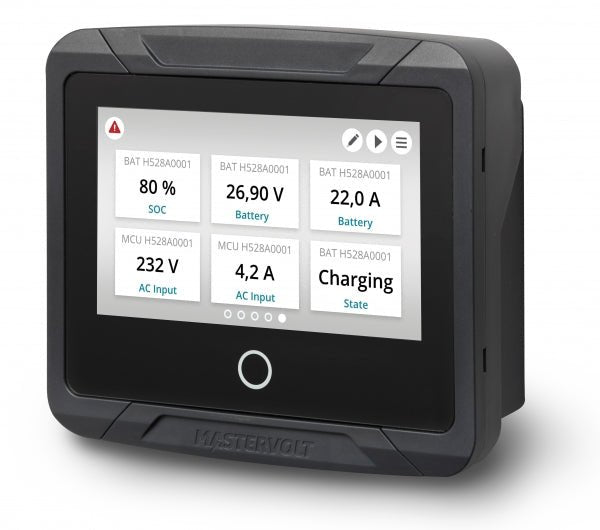

Mastervolt easyView 5 System Monitor is a compact, waterproof color touchscreen that puts total MasterBus system control at your fingertips. With a daylight-readable display and intuitive operation, this monitor is designed for yachts, vehicles, and stationary installations across marine, mobile, offshore, and industrial markets.
Key features
-
Waterproof front, IP67 design for harsh environments and direct exposure to sun, spray, and rain.
-
4.3-inch daylight-readable color touchscreen with capacitive touch, 16-bit color and 480 x 272 resolution for crystal-clear readouts.
-
Multi-language menu to simplify, fast navigation in your preferred language.
-
Customizable favourite pages to show all relevant system information at a glance.
-
Log book for warnings and alarms keeps a record of events for quick diagnostics.
-
Buzzer and Home button for immediate alerts and easy navigation.
-
Easy mounting options: front panel, wall mount, or retrofit into existing installations.
-
MasterBus powered or 12/24 V input (9-32 V) for flexible power supply.
-
Easy updates via MasterBus and USB for future-proof operation.
-
Low power consumption < 160 mW in idle mode.
Why choose the easyView 5
Designed to complete any MasterBus system, this compact monitor delivers precise, real-time information while remaining unobtrusive on deck, in a vehicle cockpit, or in a control room. Its daylight readability and rugged waterproof build ensure reliable performance in demanding environments, from luxurious yachts to offshore installations.
What's in the box
- EasyView 5
- MasterBus cable (6 meters / 20 ft)
- MasterBus terminator
- 12/24 V connector
- Mounting screws (4 x 30 mm, PH2)
- Mounting screws (4 x 14 mm, PH2)
Specifications
-
Power supply: MasterBus powered, or 12/24 V input (9 - 32 V)
-
Resolution: 480 x 272 pixels
-
Colour depth: 16-bit
-
Display: 4.3 inch high-contrast color touchscreen
-
Mounting: panel mounting, flush mounting, MasterView Easy retrofit
-
Protection: IP67; waterproof front
-
Dimensions (H x W x D): 4.4 x 5.0 x 1.7 inches
-
MasterBus connections: 2x MasterBus, USB
-
Temperature range (ambient): -4 °F to 158 °F
-
Power consumption: < 160 mW (idle)
| Power supply |
MasterBus powered, or 12/24 V input (9 - 32 V) |
| Resolution |
480 x 272 pixels |
| Colour depth |
16 bits |
| Display/read-out |
4.3 inch high contrast display with capacitive touch control |
| Mounting |
panel mounting, flush mounting, MasterView Easy retrofit |
| Alarms |
buzzer integrated |
| Dimensions, hxwxd |
4.4 x 5.0 x 1.7 inch |
| MasterBus connection |
Yes |
| Power consumption |
< 160 mW (idle mode) |
| Connections |
2x MasterBus, USB, 12/24 V |
| Temperature range (ambient temp.) |
-4 °F to 158 °F |
| Protection degree |
IP67; waterproof front |
