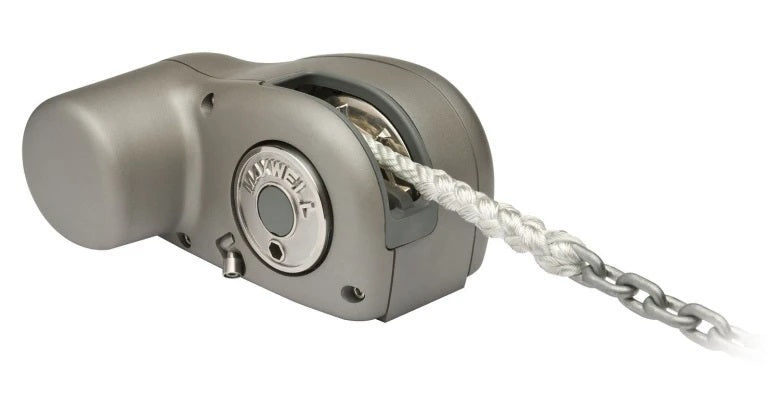

The Maxwell HRCFF612V Free Fall 12V Horizontal Windlass is a compact, reliable solution for boats using 1/4" chain and 1/2" rope. Its above‑deck, watertight enclosure protects critical components while saving space below deck and simplifying maintenance.
-
Voltage: 12V DC
-
Motor Power: 400W
-
Maximum Pull: 270 kg
-
Rope Size: 12 mm (1/2")
-
Chain Size: Short link 6–7 mm
-
Configuration: Horizontal windlass with rode management technology
-
Rode Management: Integrated composite nylon through‑deck hawse pipe for easy installation and smooth, snag‑free operation
-
Transition System: Innovative pressure arm system ensures a smooth transition from rope to chain within a safe enclosed design
-
Controls: Remote Up/Down switch panel; heavy‑duty, dual‑direction motor with integrated wiring for quick electrical installation
-
Durability & Materials: Die‑cast marine‑grade alloy case, hard anodized for corrosion protection
-
Installation: Simple bolt‑down installation
-
Emergency Feature: Emergency ‘free fall’ function in the event of onboard power failure, activated by the supplied lever
-
Included Components: HRCFF6 12V Windlass, Circuit Breaker, Reversing Solenoid, 12V Up/Down Switch Panel, Clutch Release Handle
Designed for coastal and inland waterways, this windlass delivers dependable anchor handling in a rugged, space‑efficient package. The above‑deck enclosure protects essential components from marine exposure, while the integrated rode management and smooth rope‑to‑chain transitions reduce wear and snagging. With a 12V, 400W motor and up to 270 kg of pull, it supports confident anchoring and reliable retrieval, even in challenging conditions.
| Drum |
No |
| Motor (W) |
400 |
| Maximum pull/lift (kg) |
270 |
| Chain short link (mm) |
6-7 |
| Rope |
12mm 1/2" |
| Voltage (V) |
12vDC |
| Vertical/Horizontal |
Horizontal |
