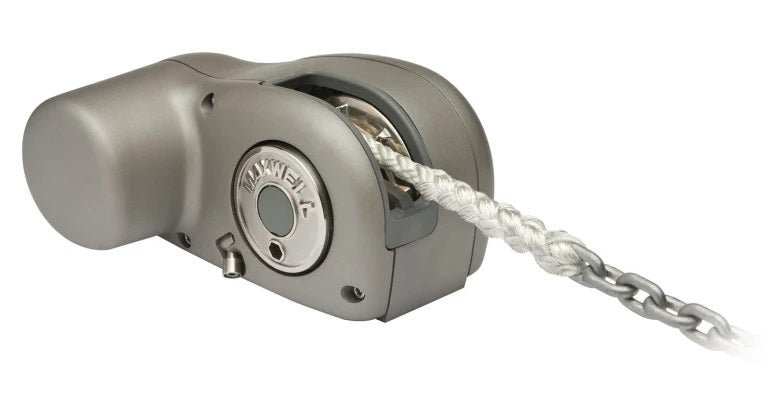

Maxwell HRCFF812V Free Fall 12V Horizontal Windlass is a compact, dependable solution for boaters who need quick, secure anchor handling of a 5/16" chain and 9/16" line. Designed to integrate with Maxwell’s RC6/RC8 rode management family, it delivers reliable control in a space-saving horizontal form.
-
Voltage & Configuration: 12V DC operation in a horizontal design that aligns with Maxwell’s RC6/RC8 rode management family for proven control and reliability.
-
Rode Compatibility: Supports 5/16" short link chain (8 mm) and 9/16" line (14 mm) for flexible anchor setups.
-
Construction: Watertight, above-deck enclosure protects the motor and drive; die-cast marine-grade alloy case is hard anodized for enhanced marine protection.
-
Installation: Simple bolt-down installation with an integrated through-deck nylon hawse pipe for easy, snag-free setup.
-
Rode Management & Retrieval: High-efficiency spur gearbox with a robust non-backwind design; integrated rode management enables smooth, jam-free retrieval controlled from a remote panel-mounted Up/Down switch.
-
Emergency Features: Emergency Free Fall function activated by the supplied lever in the event of onboard power failure.
-
Motor & Wiring: Heavy-duty dual-direction 12V motor with integrated wiring for fast electrical installation.
-
Design & Compatibility: Compact, sleek horizontal profile that brings Maxwell rode management technology to a horizontal format, aligning with the RC6/RC8 family.
-
What’s in the Box: HRCFF8 12V Windlass, Circuit Breaker, Reversing Solenoid, 12V Up/Down Switch Panel, Clutch Release Handle.
-
Specifications: 12V DC; Horizontal orientation; 600 W motor; Maximum pull/lift 410 kg; Chain short link 8 mm; Rope 14 mm (9/16 in).
Experience dependable anchor handling with a rugged, space-saving windlass that simplifies maintenance and delivers fast, controlled deployment and retrieval. The integrated rode management, watertight enclosure, and power-failure safety features help keep operations smooth and secure in demanding conditions.
| Drum |
No |
| Motor (W) |
600 |
| Maximum pull/lift (kg) |
410 |
| Chain short link (mm) |
8 |
| Rope |
14mm 19/16" |
| Voltage (V) |
12vDC |
| Vertical/Horizontal |
Horizontal |
