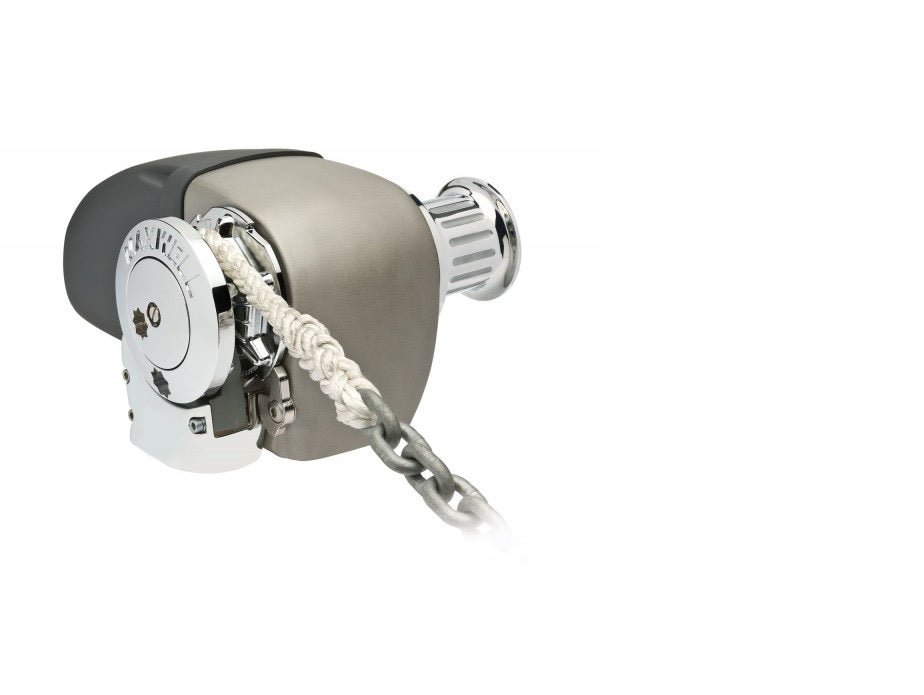

The Maxwell HRC10-10 12V Horizontal Windlass is a compact, fully automatic anchor winch designed for boats with restricted bow space, delivering hands-free deployment and retrieval of 10 mm short-link chain and 16 mm rope. Built for reliability and easy installation, it combines a powerful motor with practical features to simplify mooring in varied conditions.
-
Drum design: Horizontal drum design to fit boats with restricted bow space.
-
Motor power: 1000 W motor provides dependable lifting and deployment.
-
Voltage: 12 V DC marine electrical system for reliable operation at sea.
-
Maximum pull/lift: Up to 700 kg capacity for standard anchoring gear.
-
Chain compatibility: Accepts 10 mm short-link chain.
-
Rope compatibility: Supports 16 mm (5/8") rope.
-
Automatic operation: Fully automatic windlass operation for effortless anchoring.
-
Included hardware: Circuit breaker, reversing solenoid, 12 V Up/Down Switch Panel, and clutch release handle.
-
Series: Part of Maxwell HRC10 series.
-
What’s in the box: HRC10-10 Windlass; Circuit Breaker; Reversing Solenoid; 12 V Up/Down Switch Panel; Clutch Release Handle.
With a compact horizontal drum that fits into boats with restricted bow space, this windlass enables hands-free anchoring and retrieval, reducing manual effort and increasing safety during mooring. The 1000 W motor delivers consistent power to lift and deploy gear up to 700 kg, while the 12 V DC system ensures reliable performance at sea. Quick installation is supported by the included hardware, allowing you to wire and mount the windlass efficiently for safer, more convenient mooring operation.
| Drum |
Yes |
| Motor (W) |
1000 |
| Maximum pull/lift (kg) |
700 |
| Chain short link (mm) |
10mm |
| Rope |
16mm, 5/8" |
| Voltage (V) |
12vDC |
