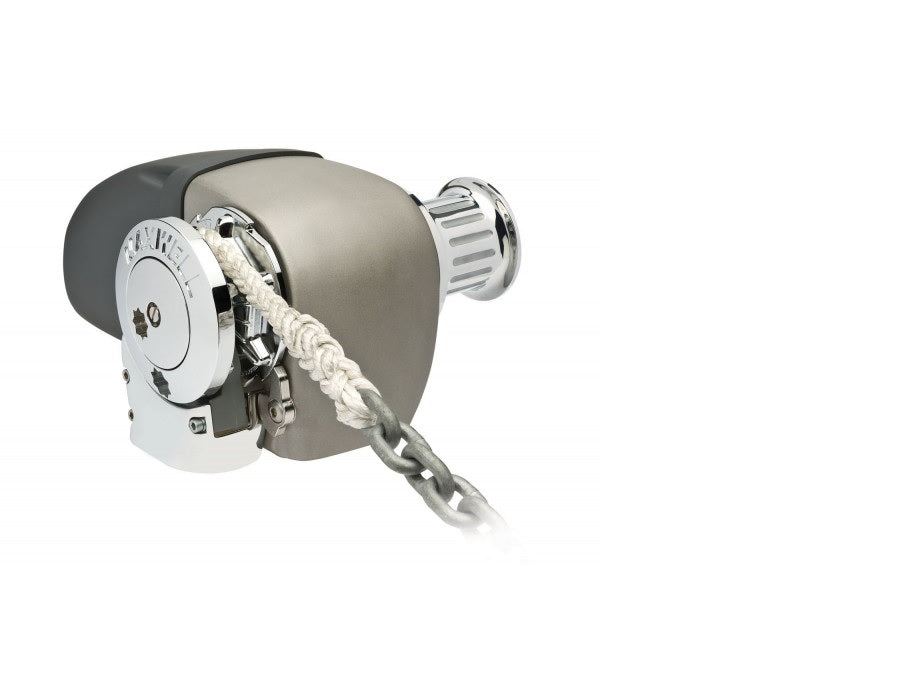

Powerful, compact, and built to perform on the water, the Maxwell HRC10-8 12V Horizontal Windlass is designed to effortlessly deploy and retrieve 5/16" chain and 9/16" line. Following Maxwell’s proven lineage of fully automatic rope/chain anchor winches, this windlass delivers smooth, reliable operation and effortless handling in demanding conditions.
Key benefits
-
Fully automatic horizontal windlass for simple, one-handed operation—retrieve and deploy with ease.
-
12V DC power with a robust 1000 W motor for strong lifting capacity.
-
Maximum pull/lift: 700 kg for secure anchoring in rugged conditions.
- Compatibility with 5/16" chain and 9/16" line, combining reliability with versatile anchoring options.
- Solid construction designed for marine environments, delivering dependable performance season after season.
What’s in the box
- HRC10-8 Windlass
- Circuit Breaker
- Reversing Solenoid
- 12V Up/Down Switch Panel
- Clutch Release Handle
Technical specifications
-
Model: HRC10812V
-
Voltage: 12 V DC
-
Motor: 1000 W
-
Maximum pull/lift: 700 kg
-
Chain compatibility: 5/16" chain (short link 8 mm)
-
Rope compatibility: 14-16 mm (9/16"–5/8") three-strand or 8-braid rope
-
Drum: Durable drum design
| Drum |
Yes |
| Motor (W) |
1000 |
| Maximum pull/lift (kg) |
700 |
| Chain short link (mm) |
8mm |
| Rope |
14-16mm, 9/16" - 3/8" |
| Voltage (V) |
12vDC |
