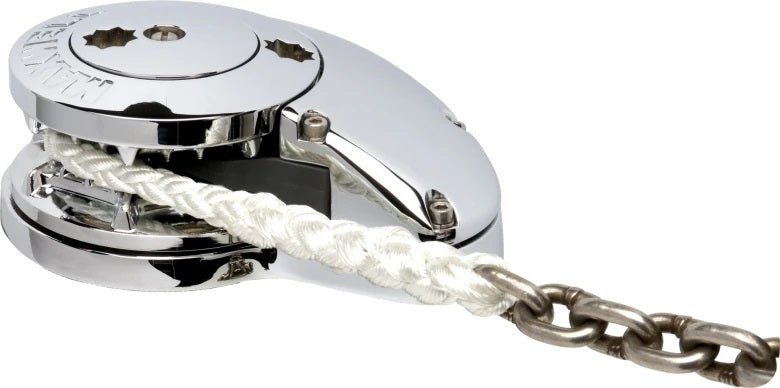

Maxwell RC10-8 Vertical 12v Windlass for 5/16in Chain & 5/8in Line

The Maxwell RC10-8 Vertical 12V Windlass is a compact, marine-grade anchoring solution designed for boats using 5/16" chain and 9/16"–5/8" rope. Built for reliable performance and easy retrofits, it delivers robust anchor handling across a range of deck layouts.

• Rope/chain compatibility: 8 mm (5/16") chain and 14–16 mm (9/16"–5/8") rope for versatile anchor setups
• Motor and power: 100 W, 12 V DC motor delivers reliable lifting and precise control
• Maximum pull/lift: Up to 700 kg pull/lift capacity for strong anchoring performance
• Orientation: Vertical windlass design to fit compact decks and standard mounting configurations
• Installation flexibility: Spacer tube design enables installation through virtually any deck thickness with multiple mounting positions and a self-aligning gearbox for optimal alignment
• Construction and materials: Stainless steel (AISI 316) pressure arm, sealed oil bath, and marine-grade hard anodised alloy gearbox for durability in saltwater use
• Topworks and maintenance: Full disassembly of the topworks with the provided handle and Allen key; manual override and Free Fall via the emergency crank/clutch handle for reliable control
• Rope/chain entry: Large hawse pipe throat facilitates easy entry and exit of the rope/chain rode into the anchor locker
• Electronics and control: Includes top works, motor/gearbox, and dual-direction solenoid; switches and circuit breakers are available separately for fully automatic dual-direction control
• Safety and operation notes: Requires a chain stopper and/or alternative snubbing device to relieve load on the windlass when anchored, and to secure the anchor in the fully raised position when underway
• Deck clearance options: Available in versions with extra deck clearance; consult your dealer for the best fit
• Weight: 19 kg
• Voltage: 12 V DC

With a 700 kg pull capacity and a compact vertical profile, the RC10-8 delivers dependable anchoring without compromising deck space. Its retrofit-friendly spacer tube and self-aligning gearbox simplify installation across different deck thicknesses and boat sizes. Built with marine-grade materials including AISI 316 stainless steel and a sealed oil bath, it stands up to harsh saltwater conditions. The manual override and emergency crank ensure you stay in control even if power is interrupted, while the large hawse pipe minimizes rope/chain jams as you deploy or recover anchor. For fully automated setups, compatible dual-direction control can be added via optional switches and circuit breakers. Note: always use a chain stopper or snubbing device and secure the anchor in the fully raised position when underway.
