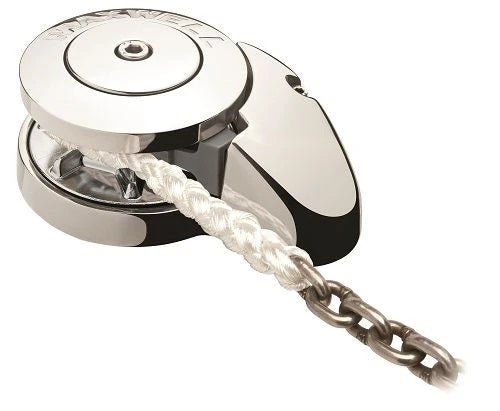

Maxwell RC612V Vertical 12V Windlass for 1/4in chain & 1/2in line delivers compact, reliable anchoring power in Maxwell's smallest vertical RC Series windlass.
Engineered for tight spots, this 12V DC windlass combines stainless steel and chromed bronze construction with a robust 500 W motor to provide confident pulling power and smooth operation when weighing anchor.
Designed for 6-7 mm (1/4") chain and 12 mm (1/2") nylon rope, the RC612V brings versatile performance to a variety of small to mid-size boats.
-
Voltage: 12V DC
-
Motor: 500 W
-
Maximum pull/lift: 350 kg
-
Compatible rope/chain: 6-7 mm chain (1/4"), and 12 mm rope (1/2")
-
Orientation: Vertical windlass
-
Weight: 8.5 kg
-
Construction: Stainless steel and chromed bronze for corrosion resistance
-
Includes: Breaker panel, reversing solenoid, clutch release handle, Up/Down panel switch
The RC612V is the smallest vertical windlass in Maxwell’s RC Series, offering a compact footprint without compromising on durability or performance. Whether you’re anchoring in tight marina slips or swinging in open water, this windlass delivers reliable, controlled rope and chain handling with straightforward installation and operation.
| Rope/chain |
Yes |
| Drum |
No |
| Motor (W) |
500 |
| Maximum pull/lift (kg) |
350 |
| Chain short link |
6-7mm, 1/4" |
| Chain |
6-7mm, 1/4" |
| Rope |
12mm, 1/2" |
| Weight (kg) |
8.5 |
| Vertical/Horizontal |
Vertical |
| Voltage (V) |
12vDC |
