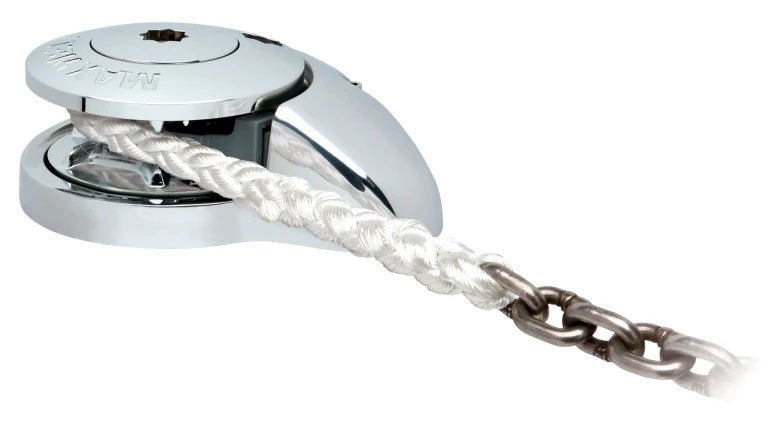

The Maxwell RC8-6 Vertical Windlass is a rugged, fully automatic rope/chain windlass designed for effortless anchor handling. Built with a corrosion-resistant combination of stainless steel (AISI 316) and chromed bronze, this 12V windlass is capable of retrieving and deploying 6–7 mm (1/4") chain spliced to 12 mm (1/2") three-strand or eight-braid rope. The RC8-6 delivers reliable performance, precision control, and easy retrofit compatibility for a wide range of boats.
Key features
-
Wave Design™ chainwheel accommodates a wide range of chain pitch differences within the specified chain size, ensuring smooth operation with both chain and rope.
-
Two-piece installation saves time and money and allows easy retrofitting without disassembly of the windlass.
-
Spacer tube design enables installation through virtually any deck thickness, with multiple mounting positions and a self-aligning gearbox for optimal alignment in diverse installations.
-
Heavy-duty pressure arm and a preloaded stainless steel spring provide maximum control pressure on the rope/chain splice for outstanding grip and reliability.
-
Through-deck hawse pipe throat simplifies rope/chain entry and exit from the anchor locker.
-
Fully serviceable topworks disassemble with a provided handle and an Allen key for easy maintenance.
-
Manual override and Free Fall capabilities via an emergency crank/clutch handle for added security and control.
-
Sealed oil bath and marine-grade hard anodised gearbox deliver maximum output through a precision worm and worm wheel system.
- Includes top works, motor/gearbox, and dual-direction solenoid; switches and circuit breaker are available separately, with complete automatic dual-direction control in optional packages.
- Option for extra deck clearance version—ask your dealer for availability.
- Use with a chain stopper or snubbing device to take load at anchor and secure the fully raised anchor while underway.
Specifications
-
Rope/chain: Yes
-
Drum: No
-
Motor power: 600 W
-
Maximum pull/lift: 350 kg
-
Chain compatibility: 6–7 mm chain (1/4"), rope compatibility to 12 mm (1/2")
-
Weight: 12.5 kg
-
Orientation: Vertical
-
Voltage: 12 VDC
What's in the box
- RC8-6 12V Windlass
- Breaker panel
- Reversing solenoid
- Up/Down panel switch
- Clutch release handle
Note: Maxwell windlasses must be used with a chain stopper and/or alternative snubbing device to take the load off the windlass while at anchor. Use the snubbing system to secure the anchor in the fully raised position when underway for safe, reliable operation.
| Rope/chain |
Yes |
| Drum |
No |
| Motor (W) |
600 |
| Maximum pull/lift (kg) |
350 |
| Chain short link |
6-7mm, 1/4" |
| Chain |
6-7mm, 1/4" |
| Rope |
12mm, 1/2" |
| Weight (kg) |
12.5 |
| Vertical/Horizontal |
Vertical |
| Voltage (V) |
12vDC |
