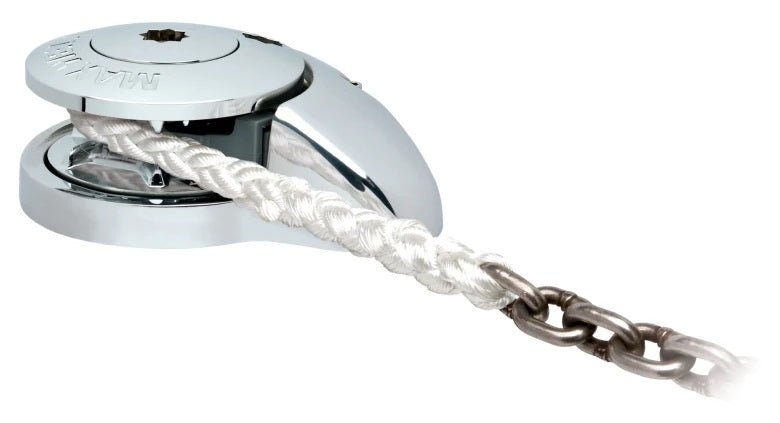

The Maxwell RC8-8 Vertical 12V Windlass is a powerful, versatile anchor-handling system designed for mariners who demand reliability in demanding marine environments. It handles 5/16" chain and 5/8" rope with precision, and features easy retrofit installation and durable construction for long-term performance.
-
Rope/Chain Compatibility: Wave Design rope/chain gypsy accommodates 8 mm (5/16") chain and compatible rope configurations, including 14–16 mm (5/8") rope variants within the RC8 family.
-
Vertical 12V Windlass: 12V DC operation with a 1000 W motor to provide steady, controlled anchor handling.
-
Two-Piece Installation: Quick retrofit—no windlass disassembly required—saves time and reduces installation costs during upgrades.
-
Spacer Tube Design & Multi-Position Mounting: Self-aligning gearbox adapts to virtually any deck thickness and installation scenario.
-
Heavy-Duty Stainless Steel Construction: AISI 316 pressure arm and large-diameter stainless components deliver maximum grip on the rope/chain splice for superior control.
-
Large-Through-Deck Hawse Pipe Throat: Facilitates effortless entry and exit of the rode into and out of the anchor locker.
-
Topworks & Serviceability: Full topworks disassembly with the included handle and an Allen key for maintenance and serviceability.
-
Manual Override & Free Fall: Emergency crank/clutch handle provides reliable control in any situation.
-
Sealed Oil Bath & Marine-Grade Gearbox: Durable protection and smooth power transfer through a precision worm and worm wheel in a hard-anodised alloy gearbox.
-
Included Components & Control Options: Top works, motor/gearbox, and a dual-direction solenoid; switches and circuit breakers are available separately for a fully automatic dual-direction control package.
-
System Specs: 12V DC, 1000 W motor, vertical orientation, weight approximately 8 kg, maximum pull/lift 600 kg.
-
Deck Clearance Options: Available configurations with extra deck clearance; contact your dealer for layout-tailored options.
-
Rode Compatibility: Designed for 8 mm (5/16") chain with rope options such as 14–16 mm (5/8") rope variants within the RC8 family.
-
Included Components: RC8-8 12V windlass, breaker panel, reversing solenoid, Up/Down panel switch, clutch release handle.
This windlass delivers precise, reliable control for anchor handling with a robust, marine-grade build designed to endure marine duty. Its advanced design supports easy retrofits and adaptable mounting, while the combination of a sealed oil bath and marine-grade gearbox ensures durable power transfer. For safe operation, use with a chain stopper or alternative snubbing device to take load off the windlass while laying at anchor and to secure the anchor in the fully raised position when underway.
| Rope/chain |
Yes |
| Drum |
No |
| Motor (W) |
1000 |
| Maximum pull/lift (kg) |
600 |
| Chain short link |
8mm 5/16" |
| Chain |
6-7mm, 1/4" |
| Rope |
14-16mm 5/8 |
| Weight (kg) |
8 |
| Vertical/Horizontal |
Vertical |
| Voltage (V) |
12vDC |
