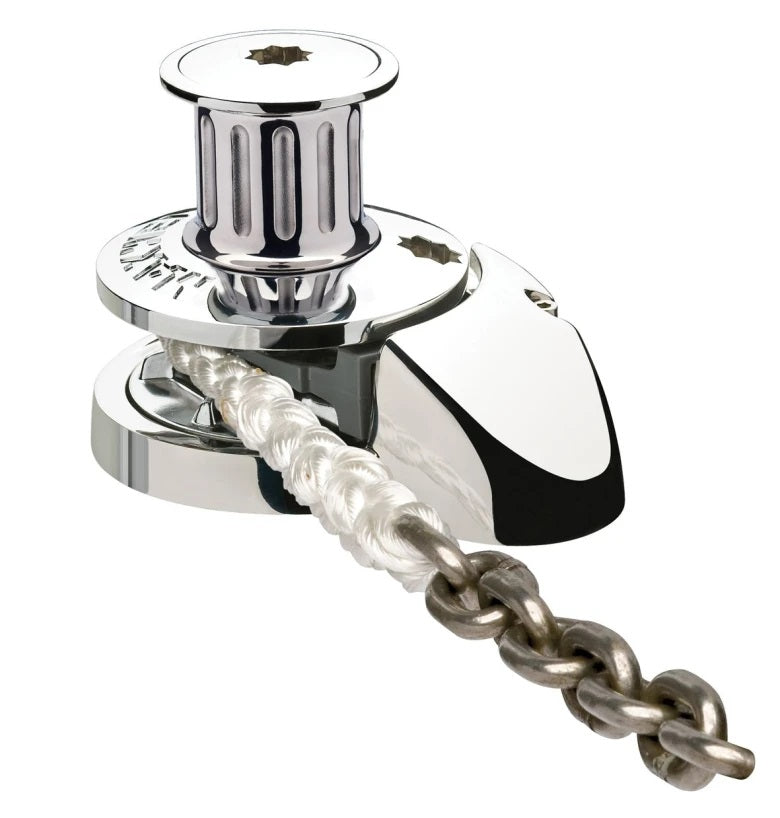

Power, precision and reliability come together in the Maxwell RC8-8 Vertical Windlass with Capstan. This 12V, fully automatic windlass is engineered to handle a rope/chain rode up to 8 mm (5/16") chain paired with 14 mm three-strand or 8-plait rope, and it can also manage 14-16 mm rope for added versatility. The innovative Wave Design™ rope/chain gypsy adapts to a wide range of chain pitch differences within the specified diameters, delivering smooth, secure operation every time.
Key features for effortless anchoring
-
Wave Design™ chainwheel — accommodates pitch differences while delivering reliable grip across rope/chain combinations.
-
Two-piece installation saves time and money and enables easy retrofitting without disassembling the windlass.
-
Spacer tube design supports virtually any deck thickness and allows flexible mounting positions.
-
Self-aligning gearbox ensures optimal alignment of gearbox and motor in most installations.
-
Heavy-duty stainless steel pressure arm (AISI 316) grips the rope/chain splice with maximum control pressure for peak performance.
-
Through-deck hawse pipe throat provides wide entry for rope/chain rode, simplifying deployment and retrieval.
-
Full topworks disassembly with the included handle and Allen key enables quick maintenance and servicing.
-
Manual override and Free Fall via emergency crank/clutch handle for reliable control in all situations.
-
Sealed oil bath and marine-grade hard anodised alloy gearbox deliver longevity and smooth power transmission.
-
Power and control — 12V DC operation with a robust 1000W motor and dual-direction capability for easy up and down deployment.
Specifications
- Model: RC88CAP12V
- Rope/chain compatibility: 8 mm (5/16") chain; 14 mm three-strand or 8-plait rope; also suitable for 14-16 mm rope
- Drum: Yes
- Motor: 1000 W
- Maximum pull/lift: 600 kg
- Rope/chain diameter range: 8 mm chain / 14-16 mm rope
- Orientation: Vertical
- Voltage: 12 V DC
- Weight: 8 kg
- Deck entry: Huge, through-deck hawse pipe throat
- Includes: RC8-8 with Capstan, 12V windlass, breaker, reversing solenoid, up/down panel switch, clutch release handle
What’s in the box
- RC8-8 with Capstan 12V Windlass
- Breaker
- Reversing solenoid
- Up/Down panel switch
- Clutch release handle
Important safety note: Maxwell windlasses must be used with a chain stopper and/or an alternative snubbing device to take the load off the windlass while laying at anchor. The chain stopper and snubbing system should also be used to secure the anchor in the fully raised position while underway. For installations requiring extra deck clearance, a variant is available—ask your dealer for details.
| Rope/chain |
Yes |
| Drum |
Yes |
| Motor (W) |
1000 |
| Maximum pull/lift (kg) |
600 |
| Chain short link |
8mm 5/16" |
| Chain |
6-7mm, 1/4" |
| Rope |
14-16mm 5/8 |
| Weight (kg) |
8 |
| Vertical/Horizontal |
Vertical |
| Voltage (V) |
12vDC |
