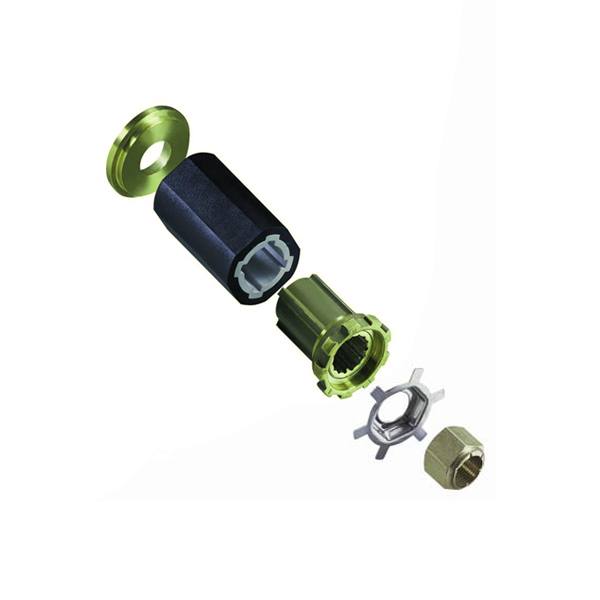

Michigan Wheel 202 XHS Hub Kit
The Michigan Wheel 202 XHS Hub Kit provides the application-specific connection between a compatible Michigan Wheel XHS propeller and the engine propshaft. It is listed for Force, Honda, Mercury/MerCruiser, and Yamaha applications shown in the chart below and is interchangeable with Mercury Flo-Torq II, Turning Point, and Solas Rubex hub systems.
Features
- Michigan Wheel XHS interchangeable hub kit
- Supports compatible Series B and A Michigan Wheel propellers
- Interchangeable with Mercury Flo-Torq II, Turning Point, and Solas Rubex hub systems
- Engine, year, spline, gearcase, and Prop Series details are listed in the application chart
Michigan Wheel 202 Hub Kit Application Chart
Match the engine manufacturer, model, year, spline count, gearcase, and Prop Series before ordering. When an application detail is not listed, verify fitment using your engine information and the Wholesale Marine Propeller Finder.
| Manufacturer | Engine Model | Stroke | Years | Spline | Hub Kit | Gearcase | Prop Series |
|---|---|---|---|---|---|---|---|
| Force | 75–150HP | — | 1995–1999 | 15 Tooth | 202 | — | B |
| Force | 85–150HP(Dual Exhaust) | — | 1988–1994 | 15 Tooth | 202 | — | B |
| Honda | BF 75 & BF 90 | — | 1995–1998 | 15 Tooth | 202 | — | B |
| Mercury/MerCruiser | 40–140HP(Except 135HP) | — | 1961 & Newer | 15 Tooth | 202 | V4 gearcase | B |
| Mercury/MerCruiser | 135–300HP | — | 1978 & Newer | 15 Tooth | 202 | V4 gearcase | A |
| Mercury/MerCruiser | Mercruiser Alpha One & Bravo One (<400) | — | — | 15 Tooth | 202 | V4 gearcase | A |
| Yamaha | 80–140 HP | — | 1977–1983 | 15 Tooth | 202 | V4 gearcase | B |
| Yamaha | 150–175 HP | — | 1978–1983 | 15 Tooth | 202 | V4 gearcase | A |
Installation Instructions
Download Michigan Wheel 202 Hub Kit Installation Instructions (PDF)
Unsure if this hub kit is right for you?
Use our Propeller Finder to confirm the correct Michigan Wheel propeller and XHS hub kit for your engine.
