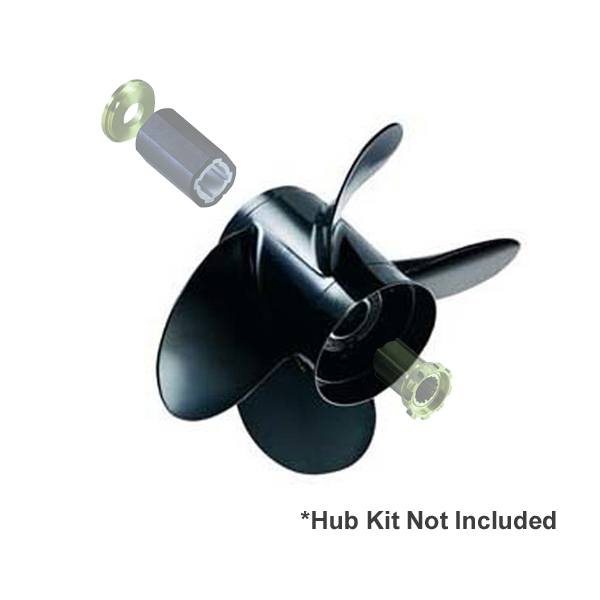

Michigan Vortex 4 Blade 10-1/8x 14P Propeller 941214
The Michigan Wheel Vortex 4-Blade Aluminum Propeller 941214 features a 10-1/8-inch diameter, 14-inch pitch, and right-hand standard rotation. This Series D propeller uses Michigan Wheel's interchangeable XHS hub system, allowing it to fit the engine applications shown in the chart below when paired with the correct hub kit.
Features
- Quicker planing, improved handling and acceleration.
- Enhanced performance when towing for watersports.
- High gloss powder coat.
- Precision balanced blades.
Propeller Specifications
-
Prop Series: D
-
Material: Aluminum
-
Blades: 4
-
Diameter: 10-1/8 in.
-
Pitch: 14 in.
-
Rotation: Right Hand Standard
-
Manufacturer Part Number: 941214
Michigan Wheel Series D Propeller Application Chart
Hub kit not included. Select the XHS hub kit shown for your engine application. Verify the engine model, year, spline count, and gearcase before ordering.
| Manufacturer |
Engine Model |
Stroke |
Years |
Spline |
Hub Kit |
Gearcase |
Prop Series |
| Johnson/Evinrude | 40 & 50 HP | 4 | 1999–2005 | 13 Tooth | XHS 151 | — | D |
| Force | 40 & 50 HP | — | 1995–1998 | 13 Tooth | XHS 114 | — | D |
| Force | 70 HP | — | 1991–1995 | 13 Tooth | XHS 114 | — | D |
| Force | 75 HP | — | 1996–1998 | 13 Tooth | XHS 114 | — | D |
| Honda | BF 35 & 45 | — | 1991–1994 | 13 Tooth | XHS 113 | — | D |
| Honda | BF 40/50/50A | — | 1995 & Newer | 13 Tooth | XHS 113 | — | D |
| Honda | BF 60 | — | 2010 & Newer | 13 Tooth | XHS 113 | — | D |
| Mercury/MerCruiser | 25 HP Bigfoot | — | 1999–2005 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 30 HP (Sea Pro/Marathon) | — | 1994 & Newer | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 30 HP | 2 & 4 | 1994–2005 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 35 HP | — | 1984–1989 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 40–50 HP | — | 1974–1976 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 40/50/70 HP | — | 1977–1984 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 45 HP | — | 1986–1989 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 40 & 50 HP | 2 & 4 (Not Bigfoot) | 1977 & Newer | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 48 HP (Mariner) | — | All years | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 55 HP (Mercury/Sea Pro/Marathon) | — | 1995 & Newer | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 60 HP (Not Bigfoot) | — | 1978 & Newer | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 60 HP (Mariner) | — | 1976 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 65 HP | — | 1972–1976 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 70 HP | — | Thru 1983 | 13 Tooth | XHS 114 | — | D |
| Mercury/MerCruiser | 80 HP (Mariner) | — | 1977 | 13 Tooth | XHS 114 | — | D |
| Nissan/Tohatsu | 35 HP (35B Only) | — | Thru 1984 | 13 Tooth | XHS 116 | — | D |
| Nissan/Tohatsu | 40 HP | — | 1984 & Newer | 13 Tooth | XHS 116 | — | D |
| Nissan/Tohatsu | 50 HP (All Except 50C) | — | 1992 & Newer | 13 Tooth | XHS 116 | — | D |
| Suzuki | DT 35C | — | 1987–1989 | 13 Tooth | XHS 115 | — | D |
| Suzuki | DT 40 | — | 1983–1998 | 13 Tooth | XHS 115 | — | D |
| Suzuki | DF 40 & DF 50 | 4 | 1999–2010 | 13 Tooth | XHS 115 | — | D |
| Suzuki | DF 40A & 50A | — | 2011 & Newer | 13 Tooth | XHS 115 | — | D |
| Suzuki | DT 50 & 50M | — | 1983–1984 | 13 Tooth | XHS 115 | — | D |
| Suzuki | DT 55 | — | 1985–1997 | 13 Tooth | XHS 115 | — | D |
| Suzuki | DT 60 | — | 1983–1984 | 13 Tooth | XHS 115 | — | D |
| Suzuki | DF 60A | — | 2010 & Newer | 13 Tooth | XHS 115 | — | D |
| Suzuki | DT 65 | — | 1985–1997 | 13 Tooth | XHS 115 | — | D |
| Yamaha | T25 | — | 2010 & Newer | — | XHS 117 | — | D |
| Yamaha | F30 | 4 | 2001–2005 | — | XHS 117 | — | D |
| Yamaha | 40 HP & 50 HP (Not T50) | — | 1984 & Newer | — | XHS 117 | — | D |
| Yamaha | F40 | 4 | 1999 & Newer | — | XHS 117 | — | D |
| Yamaha | 48 HP | — | 1995–2000 | — | XHS 117 | — | D |
| Yamaha | F50 | 4 | 1995 & Newer | — | XHS 117 | — | D |
| Yamaha | 55 HP | — | 1976–1995 | — | XHS 117 | — | D |
| Yamaha | 60 HP | — | 1976–1991 | — | XHS 117 | — | D |
| Yamaha | F60 | 4 | 1999 & Newer | — | XHS 117 | — | D |
