Michigan Vortex 3 Blade 10-1/8x 12P Propeller 992504

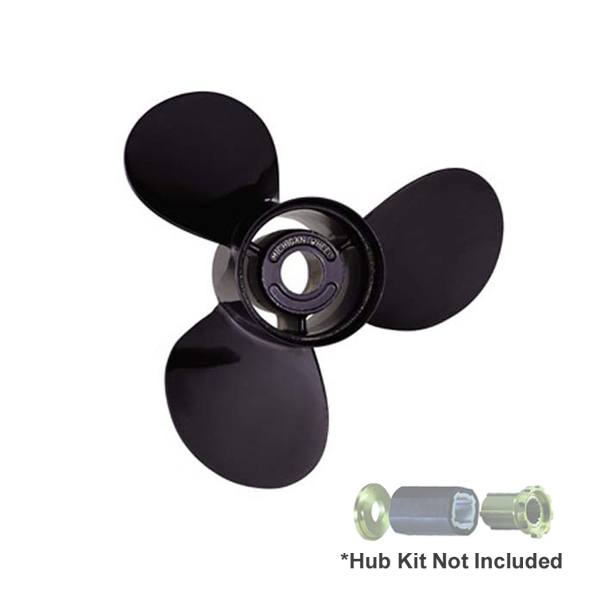

The Michigan Wheel Vortex 3-Blade Aluminum Propeller 992504 features a 10-1/8-inch diameter, 12-inch pitch, and right-hand standard rotation. This Series E propeller uses Michigan Wheel's interchangeable XHS hub system, allowing it to fit the engine applications shown in the chart below when paired with the correct hub kit.
Features
- High performance blade geometry.
- Precision balanced blades.
- High gloss powder coat.
Propeller Specifications
-
Prop Series: E
-
Material: Aluminum
-
Blades: 3
-
Diameter: 10-1/8 in.
-
Pitch: 12 in.
-
Rotation: Right Hand Standard
-
Manufacturer Part Number: 992504
Michigan Wheel Series E Propeller Application Chart
Hub kit not included. Select the XHS hub kit shown for your engine application. Verify the engine model, year, spline count, and gearcase before ordering.
| Manufacturer |
Engine Model |
Stroke |
Years |
Spline |
Hub Kit |
Gearcase |
Prop Series |
| Johnson/Evinrude |
15 HP (E-Tec) |
— |
2011 & Newer |
14 Tooth |
XHS 118 |
— |
E |
| Johnson/Evinrude |
20 HP |
— |
1984–1997 |
14 Tooth |
XHS 118 |
— |
E |
| Johnson/Evinrude |
25 & 30 HP |
— |
1976 & Newer |
14 Tooth |
XHS 118 |
— |
E |
| Johnson/Evinrude |
25 & 30 HP (E-Tec) |
— |
2009 & Newer |
14 Tooth |
XHS 118 |
— |
E |
| Johnson/Evinrude |
35 HP |
— |
1997 & Newer |
14 Tooth |
XHS 118 |
— |
E |
| Johnson/Evinrude |
25 & 30 HP (E-Tec) |
4 |
2004–2007 |
10 Tooth |
XHS 121 |
— |
E |
| Force |
25 HP |
— |
1995–1998 |
10 Tooth |
XHS 120 |
— |
E |
| Honda |
BF 25 |
— |
1994 & Newer |
10 Tooth |
XHS 110 |
— |
E |
| Honda |
BF 30 |
— |
1995 & Newer |
10 Tooth |
XHS 110 |
— |
E |
| Mercury/MerCruiser |
9.9. 15 HP |
4 Stroke/Bigfoot/Sail |
1999–2005 |
10 Tooth |
XHS 120 |
— |
E |
| Mercury/MerCruiser |
18 HP |
— |
1980–1985 |
10 Tooth |
XHS 120 |
— |
E |
| Mercury/MerCruiser |
20 & 25 HP (Not 4 Stroke) |
— |
1980–2005 |
10 Tooth |
XHS 120 |
— |
E |
| Mercury/MerCruiser |
25 & 30 HP |
4 (Not Bigfoot) |
2006 & Newer |
10 Tooth |
XHS 122 |
— |
E |
| Nissan/Tohatsu |
25 & 30 HP |
— |
1985–2001 |
13 Tooth |
— |
— |
E |
| Nissan/Tohatsu |
25 & 30 HP |
4 |
2002 & Newer |
13 Tooth |
— |
— |
E |
| Suzuki |
DT 20 & DT 25 |
— |
1985–1988 |
10 Tooth |
XHS 121 |
— |
E |
| Suzuki |
DT 25C |
— |
1989–2000 |
10 Tooth |
XHS 121 |
— |
E |
| Suzuki |
DF 25A |
— |
2014 & Newer |
10 Tooth |
XHS 121 |
— |
E |
| Suzuki |
DT 30 |
— |
1983–1997 |
10 Tooth |
XHS 121 |
— |
E |
| Suzuki |
DT 30C |
— |
1987–1997 |
10 Tooth |
XHS 121 |
— |
E |
| Suzuki |
DF 30A |
— |
2014 & Newer |
10 Tooth |
XHS 121 |
— |
E |
| Suzuki |
DF 25 & DF 30 |
4 |
2000–2007 |
10 Tooth |
XHS 121 |
— |
E |
| Yamaha |
20 HP |
— |
1996–1997 |
10 |
XHS 123 |
— |
E |
| Yamaha |
25 HP |
— |
1980 & Newer |
10 |
XHS 123 |
— |
E |
| Yamaha |
F25 |
4 |
1998–2006 |
10 |
XHS 123 |
— |
E |
| Yamaha |
F25 |
4 |
2010 & Newer |
10 |
XHS 123 |
— |
E |
| Yamaha |
30 HP |
— |
1983–2002 |
10 |
XHS 123 |
— |
E |
Unsure if this prop is right for you?
Use our Propeller Finder to confirm the correct propeller and XHS hub kit for your boat.
