Description

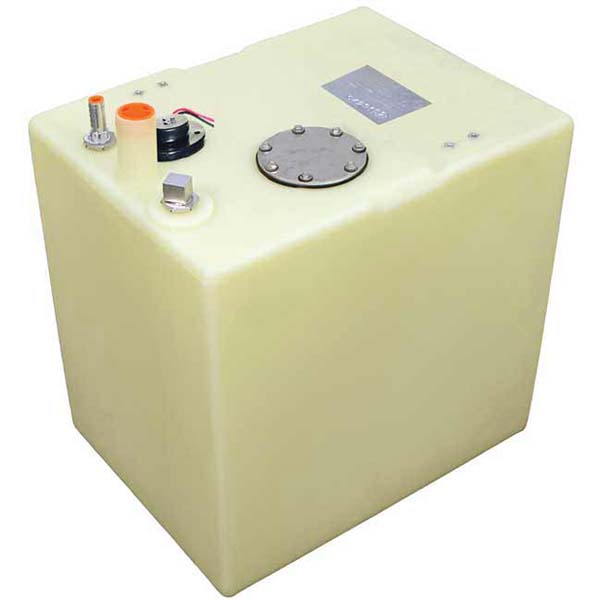

Moeller 19 Gallon Fuel Tank
Unlike aluminum tanks, this comprehensive line of cross-linked polythylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses.
Features:
- Moeller is your single source for the ultimate in below-deck technology.
- Machined aluminum 3/8" withdraw fitting has 360° swivel poplock for hook-up convenience
- UV rating of 8 - Temperature rating of -40°F to 176°F
- 1 1/2" Diameter Fill Spout
- Add 2-1/8" (54mm) to tank height dimension to accommodate fill height.
- Uses MOE-300110 hold down kit
Helpful Hint:
You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank!
Specifications:
| Capacity | 19 Gal / 72 L |
| Length | 18.50" |
| Width | 14" |
| Height | 20.75" |
| Bracket Tie Down | 300110 |
| # Fuel Pickups | 1 |
Moeller 19 Gallon Fuel Tank FAQs
What is the capacity of the Moeller 19 Gallon Fuel Tank?
The Moeller 19 Gallon Fuel Tank has a 19 gallon, or 72 liter, capacity.
What are the dimensions of the Moeller 19 Gallon Fuel Tank?
The Moeller 19 Gallon Fuel Tank measures 18.50" long, 14" wide, and 20.75" high. Add 2-1/8" to the tank height to accommodate the fill height.
What material is this Moeller fuel tank made from?
This Moeller fuel tank is made from cross-linked polyethylene for corrosion and pit resistance.
What size is the fill spout on this Moeller fuel tank?
The Moeller 19 Gallon Fuel Tank has a 1-1/2" diameter fill spout.
Which hold down kit does this Moeller fuel tank use?
This Moeller fuel tank uses the MOE-300110 hold down kit.
How many fuel pickups does the Moeller 19 Gallon Fuel Tank have?
The Moeller 19 Gallon Fuel Tank has one fuel pickup.
