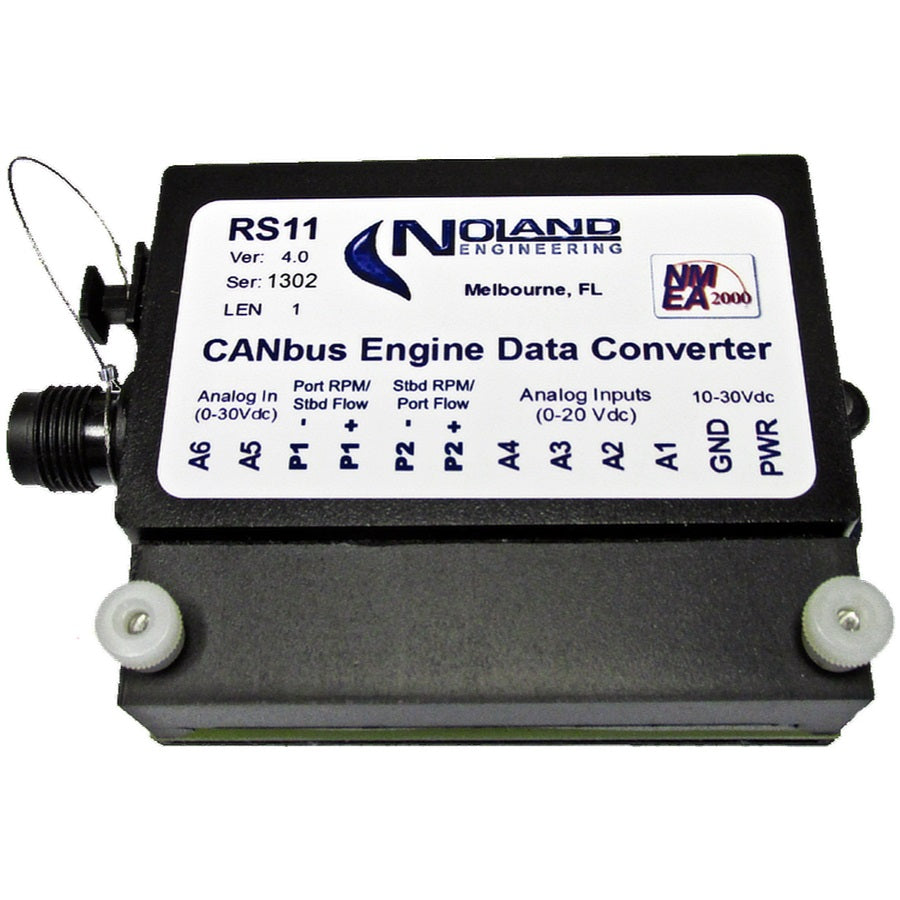

The Noland RS11 Analog to NMEA 2000 Data Converter turns tachometer signals and analog gauge voltages from virtually any engine into CANbus digital messages for your NMEA 2000 network. It is configurable for either single or dual engine installations and includes a USB PC interface for initial configuration, data monitoring, and software updates. Output messages are applied to the CANbus for display by compatible devices.
Designed for versatile interfacing to almost any analog engine sensor or gauge used on marine or automotive engines, the RS11 features two pulse (RPM/Fuel Flow) inputs, six analog (gauge) inputs and supports both 12 and 24 volt systems. The analog inputs can be assigned all to one engine or split between two engines. Multiple RS11 units can be installed on the same CANbus. The RS11 can be used with existing analog gauges or as a replacement for them. Current sources within the RS11 will power resistive sending units where gauges have been removed or new senders (without gauges) have been added.
- Converts tachometer signals and analog gauge voltages to NMEA 2000 CANbus messages
- Configurable for single or dual engine installations via USB PC interface
- Two pulse inputs (RPM/Fuel Flow) and six analog inputs
- Supports 12V and 24V systems
- Analog inputs can be allocated to one engine or split between two engines
- Multiple RS11 units can share the same CANbus
- Use with existing gauges or as a replacement
- Internal power sources drive resistive sending units when gauges are removed or replaced
Enhance your marine or automotive CANbus data capability with the RS11, delivering accurate engine sensor data to compatible displays and instruments for improved monitoring, control, and performance insights.
