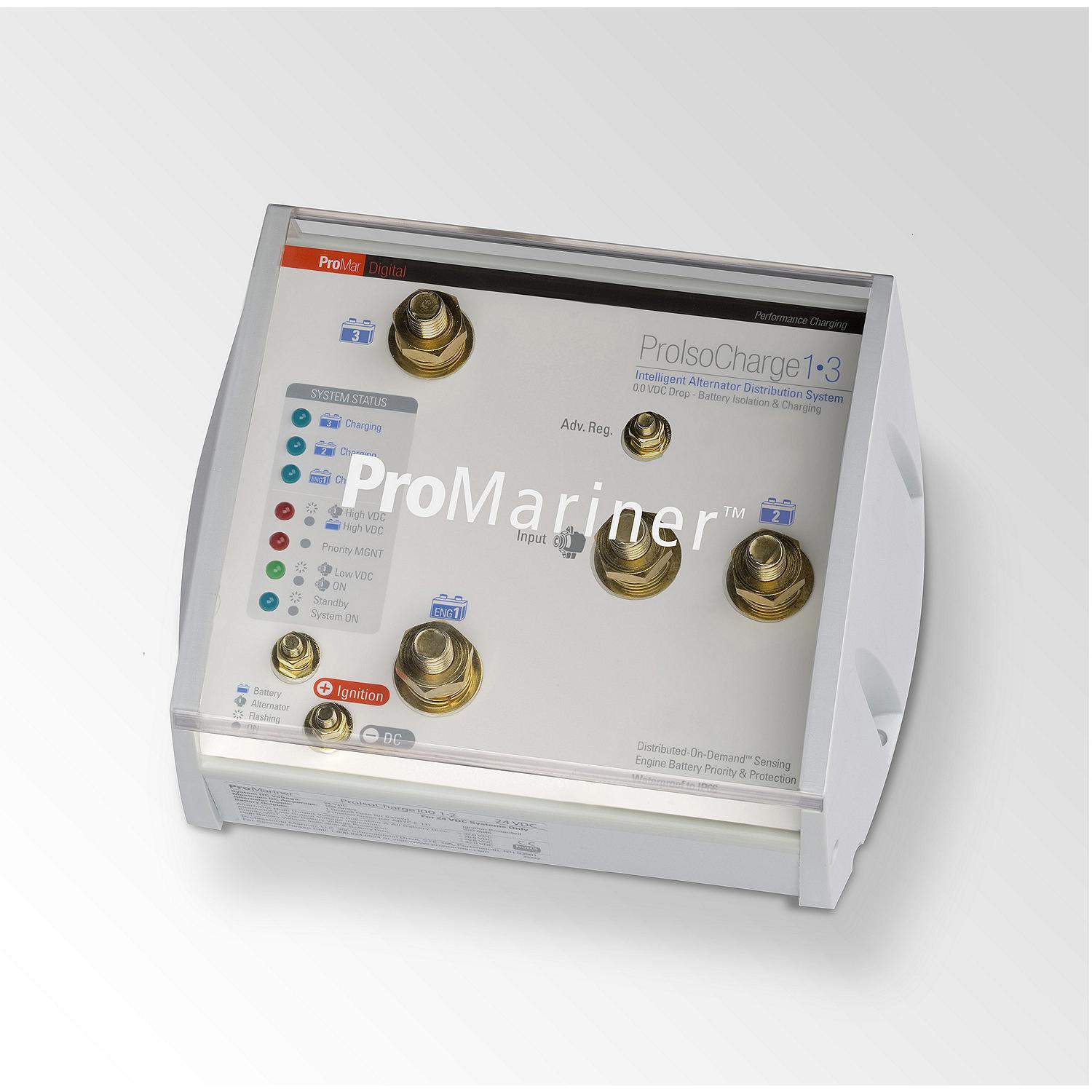

ProMariner ProIsoCharge180 Zero Volt Loss Isolator for 12V systems delivers smart, digital isolation and charging from a single alternator to up to three independent battery banks, while protecting your engine start battery. Designed for marine and harsh-duty use, it digitally distributes the full output of your alternator with advanced control, speed, and reliability.
Engineered for smarter charging, the ProIsoCharge180 uses Ignition Controlled Distributed On Demand to ensure battery management activates only when power is on. It prioritizes charging to the bank under load (house bank or inverter bank) while keeping engine batteries healthy, eliminating voltage loss and reducing charging time for faster, more reliable starts and longer battery life.
-
Zero Volt Loss isolation eliminates the voltage drop commonly associated with traditional diode-based isolators, delivering faster, more efficient charging.
-
Intelligent battery management with real-time status and priority charging helps balance up to 3 battery banks while safeguarding engine batteries.
-
Ignition Controlled Distributed On Demand battery management activates only when ignition is on, reducing parasitic draw and extending battery life.
-
Advanced regulator readiness with remote sense support for precision control on alternators with advanced regulators.
-
Real-time LED status indicators provide clear visibility of alternator power, battery charging status, and fault conditions (over/under voltage, high voltage, etc.).
-
Easy installation with a modular design, including terminal stud insulator boots and a protective snap-on safety cover for quick, reliable setup.
-
Rugged and waterproof with IP66-rated protection and ignition-protected construction for marine environments.
-
Space-saving, diode-free design eliminates traditional isolators and relays, enabling simultaneous charging of multiple banks from a single alternator; compatible with ProNauticPSeries for shore power and on-water charging.
-
Versatile configuration supports 1 alternator to 3 battery banks (model-specific). For dual-engine setups, a 2-alternator input model is available, supporting up to 4 battery banks.
Specifications
-
System Voltage: 12V DC
-
Alternator Input: 1
-
Battery Outputs: 3
-
Dimensions: 7.55" (L) × 5.875" (W) × 3.125" (H)
-
Max DC Amps: 180 A
-
Model: 23125
| System Voltage |
12vDC |
| Alternator Input |
1 |
| Battery output |
3 |
| Dimensions |
7.55"(l) x 5.875"(w) x 3.125"(h) |
| Max DC Amps |
180 |
