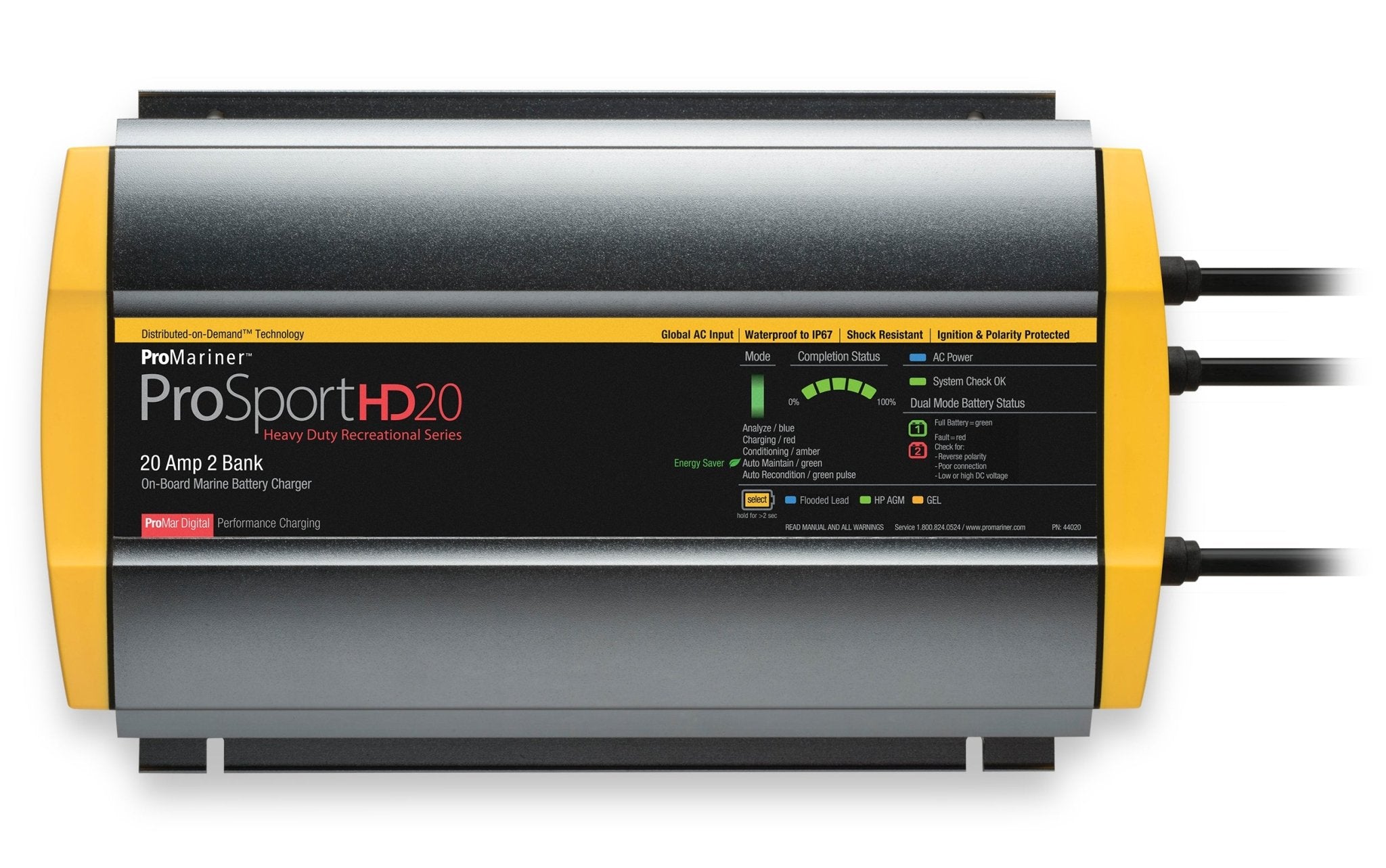

Meet the ProMariner ProSport HD 20 Gen4, a rugged 12/24V, two-bank battery charger designed for boats, RVs, and demanding battery banks. With Gen4 microprocessor control, it charges quickly, protects batteries, and thrives in harsh environments.
-
Output and Banks: 20A total output across 2 independent banks for 12V/24V systems with 120V AC input.
-
Gen4 Smart Control: Microprocessor-based control delivers fast, precise charging with advanced battery protection.
-
Smart Power Distribution: 100% of available charging amps are allocated efficiently by dynamically distributing unused amps to any one or multiple batteries as needed.
-
Advanced Cooling: Tri-surface heat sink design (upper, lower, rear) ensures optimal cooling while delivering true rated current in both charge modes.
-
5-Stage Charging: Analyze, charge, condition, auto-maintain, and monthly reconditioning during storage to fully charge and extend battery life.
-
Energy Efficient Operation: Auto-maintain activates only when needed, reducing AC power consumption and keeping batteries ready without waste.
-
Safety Features: Dual inline waterproof fuses, plus reverse polarity, over-temperature, over-current, over-voltage and ignition protection for reliable marine-grade use.
-
Battery Compatibility: Supports Group 24–31 Flooded, AGM, HP AGM, and GEL batteries; HP AGM profile available on ProSport HD 20 Dual only.
-
Durability and Certifications: Marine UL 1236 certified; CEC and DOE listed; FCC Class B compliant.
-
Ready to Use: Pre-wired with 6' AC and 6' DC cables; rugged jacketed cables with molded strain reliefs for tough environments.
-
Compact and Lightweight: Footprint 7.9" x 12.8" x 2.9"; weight 7.2 lbs; up to 40% lighter than epoxy-filled chargers.
-
Warranty: 3-year limited warranty for lasting peace of mind.
-
Status Indicators: Clear fuel gauge-style completion monitor and a four-color multi-stage LED bar show charging progress and battery health at a glance.
-
Input/Output Ready: 12/24V DC system, 20A output for 2 banks, 120V AC input; ready to use with pre-wired wiring for immediate deployment.
This charger keeps batteries ready and healthy, whether you’re sailing, camping off‑grid, or living the RV life. Two independent banks prevent cross-interference, while smart power distribution ensures every amp goes where it’s needed most. The 5-stage charging sequence optimizes performance and longevity, and advanced protections—along with marine-grade construction—deliver dependable charging in demanding conditions. Pre-wired setup and compact, lightweight design simplify installation, so you can focus on the journey.
| DC Voltage Systems |
12/24 |
| Amps |
20 |
| No. of Batteries |
2 |
| AC & DC Cable Length |
6'/6' |
| Size |
7.9"x 12.8"x2.9" |
| Weight |
7.2 lbs |
| AC in |
1.20v AC + 10% 50/60 Hz |
| AC Plug |
NEMA 5-15 |
