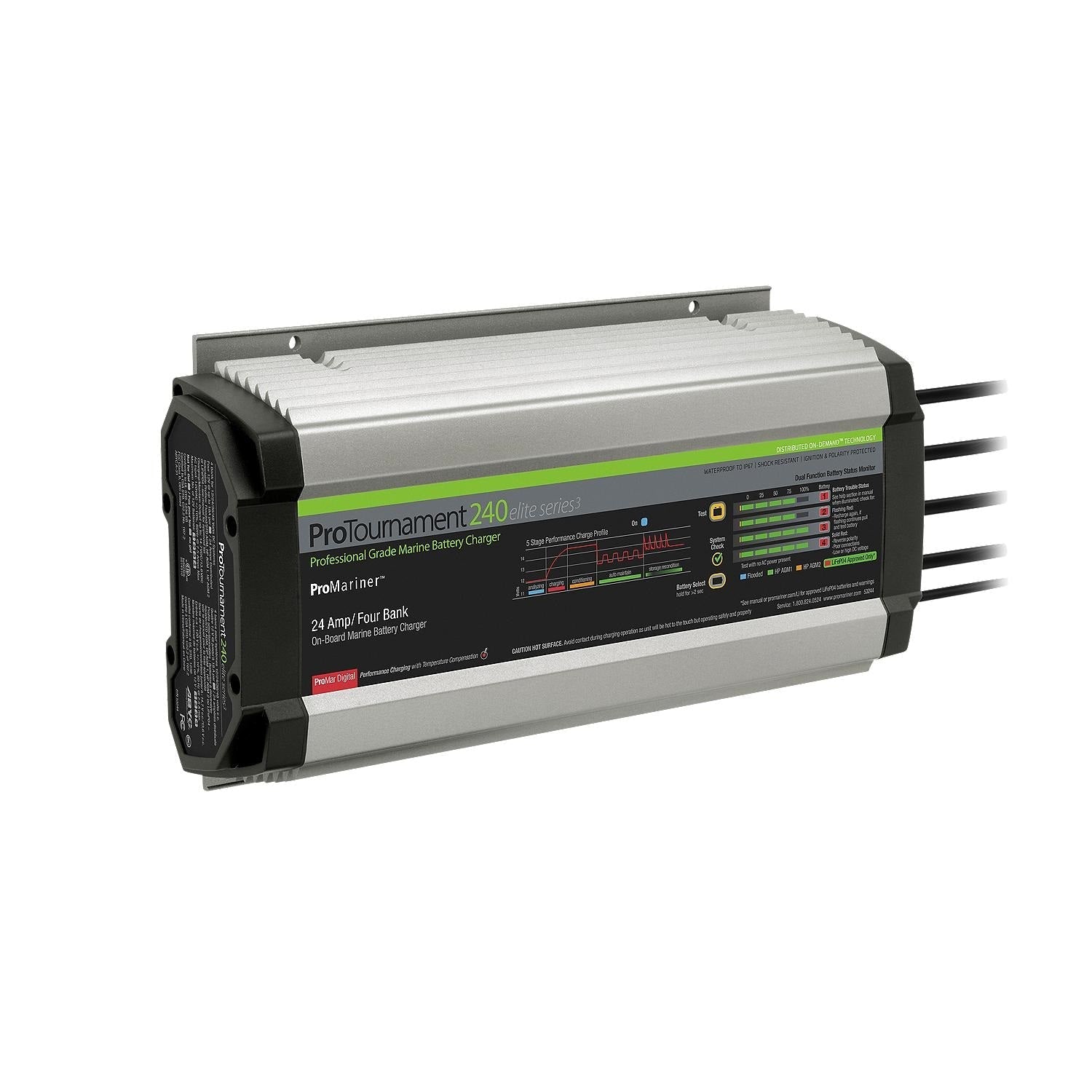

Meet the ProMariner ProTournament Elite 3 Series 240 four-bank charger. Built for 12/24/36/48V systems from a 120V input, it delivers reliable, multi-bank power for boats on deck or at sea.
-
DC System Voltage: 12/24/36/48v DC
-
Amps Output: 24A total across 4 banks
-
Banks: 4
-
Input: 120V (NEMA 5-15)
-
AC & DC Cables: 6 ft
-
Protection & Certification: IP67 sealed; UL Marine 1236 certified; energy-efficient CEC/DOE compliance; safety features including dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage, and ignition protection
-
Thermal Management: Tri-surface aluminum heat sink with advanced thermal modeling for true-rated constant-current charging
-
Charging Technology: 5-stage digital performance charging to charge, condition, auto-maintain, and monthly storage recondition batteries
-
Battery Chemistry Support: User-selectable profiles for Flooded, AGM, and ProMariner-approved LiFePO4 chemistries
-
Bank Architecture: 4-bank design for simultaneous management of multiple battery banks
-
Durability: Rugged marine-grade construction designed to withstand harsh environments while keeping batteries healthy
The ProTournament Elite 3 Series 240 provides flexible, fast, and safe charging for multiple battery banks from a single source. With multi-chemistry support, advanced thermal management, and comprehensive protection features, it helps reduce downtime and extend battery life—keeping your boat ready for the next voyage.
| DC System Voltage |
12/24/36/48v DC |
| Amps ourtput |
24 |
| AC & DC Cables |
6' |
| VAC Max Amps |
120VAC +/- 10% VAC/7.5A |
| AC Plug |
NEMA 5-15 |
| Banks |
4 |
