Description

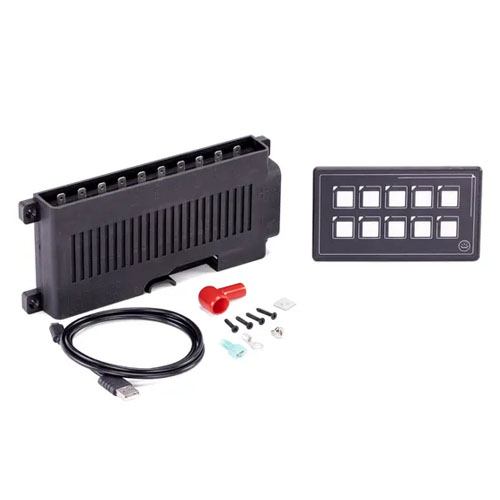

Sierra 10 Function Touch Panel 12V/24V SP21030
The Sierra 10 Function Touch Panel is an ultra-compact panel featuring a PET membrane touch panel faceplate designed for harsh marine environments. This panel has programmable buttons that allow each function to be programmed as a latching or momentary circuit. A 60 piece assortment of graphic and text labels is included for easily labeling each button. The Sierra SP21020 is designed to be easy to install. It uses a micro-USB cable instead of bigger, bulkier cables, and requires almost no mounting depth. Its flexible wiring allows the control relay box to remote mount up to 1 meter away from the touch panel.
Features:
- Easy to install; almost no mounting depth required
- Backlit push buttons allow for easy readability in the dark
- LED- ON indication
- 10A Self-resettable fuse for each function
- Uses very low standby current
- Faceplate PET membrane touch panel
- CE Certified; and Panel is IP 67 Rated
- Includes 60 piece assortment of graphic and text labels
Specifications:
-
Panel Dimensions: 91mm x 75mm
- Control Box Dimensions: 136 x 90 x 32mm
- Panel Cut-Out: 15mm hole
- Circuit Protection: Built-in Resettable Fuse (PPTC)
- Switch Ratings: 10A per function at 12VDC
- Panel Rating: Max Cumulative Amp: 35A
- Voltage Rating: 11-30VDC
