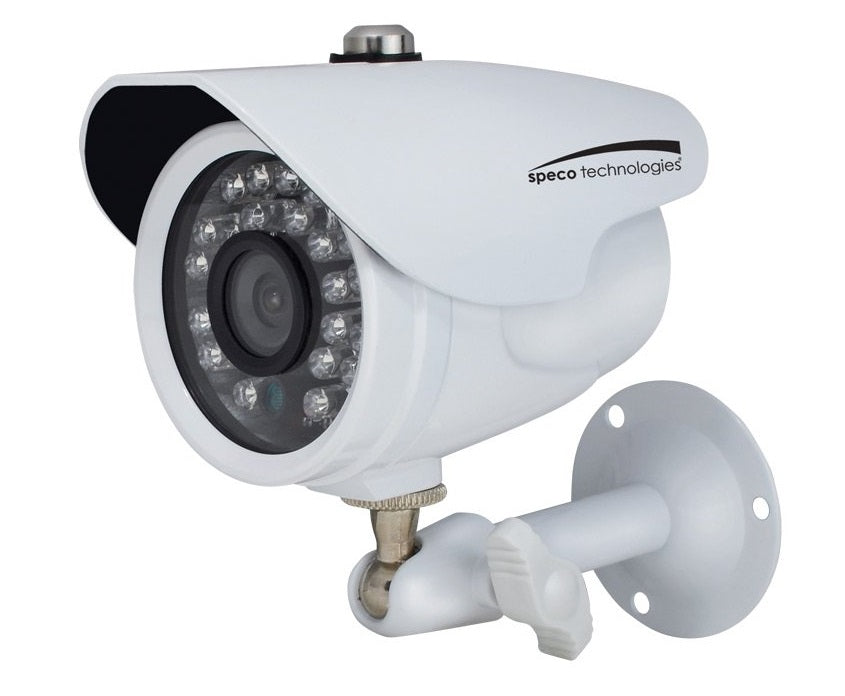

The Speco CVC627MT Marine Camera is a rugged color HD-TVI camera built for demanding marine environments. With a 2MP sensor and a fixed 3.6mm lens, it delivers Full HD 1080p video over coax for reliable onboard surveillance day or night.
-
HD-TVI 2MP resolution: 1920x1080 at 30fps for smooth, detailed imagery
-
Marine-ready enclosure: IP67 waterproof white housing designed to withstand rain, spray, and saltwater
-
Night vision: 0 lux with IR LEDs on; 24 IR LEDs provide up to 65 ft of illumination
-
Lens: Fixed 3.6mm lens offers a balanced field of view for marine viewpoints
-
Dual voltage operation: Supports 12VDC or 24VAC; current draw 350mA (12V) / 300mA (24VAC)
-
Video output and compatibility: 1 Vp-p / 75 ohms; NTSC TV system; analog output for 960H compatibility; coax-based
-
Synchronization and scan: Internal synchronization; 2:1 interlaced video
-
On-screen display: UTC OSD control (TVI only) with mirror or flip image options
-
Compact, low power design: Dimensions 2.47" W x 2.74" H x 4.01" L; low power consumption
-
In the box: Camera, mounting screws, mounting bracket, 10’ power/video cable
-
Power supply: Power supply not included (requires 12VDC or 24VAC source)
-
Warranty: 5-year warranty
-
Ideal for: Boats, yachts, and other watercraft needing reliable surveillance in challenging conditions
The Speco CVC627MT delivers dependable daytime clarity and effective night vision, helping you monitor docks, decks, and surrounding waters with confidence. Its marine-grade enclosure protects against rain, spray, and salt exposure, while dual voltage support simplifies installation on a wide range of vessels. The fixed 3.6mm lens provides a practical field of view for most marine viewpoints, and the 24 IR LEDs illuminate up to 65 ft in low light. With 960H compatibility and uncomplicated coax-based video output, it fits into both legacy and modern surveillance setups. A compact form factor and 5-year warranty round out a reliable choice for on-water security.
| Image Sensor |
1/3" Progressive Scan CMOS, 2MP |
| Resolution. |
1920 x 1080 |
| Minimum Illumination |
0 lux (IR LEDs on) |
| Effective Pixels |
1984 (H) x 1105 (V) |
| Total Pixels |
2000 (H) x 1121 (V) |
| Number of IR LEDs |
24 |
| IR Range |
65 ft. (depending on scene reflection) |
| Electronic Shutter |
Auto / Manual (1/30 — 1/30,000 sec) |
| S/N Ratio |
More than 50dB |
| Synchronization |
Internal |
| Scanning System |
2:1 Interlaced |
| Video Output |
1Vp-p / 75 ohms |
| TV System |
NTSC |
| Input Voltage |
12VDC / 24VAC (power supply not included) |
| Input Draw |
350mA (12VDC) / 300mA (24VAC) |
| Dimensions |
2.47" (W) x 2.74" (H) x 4.01" (L) |
