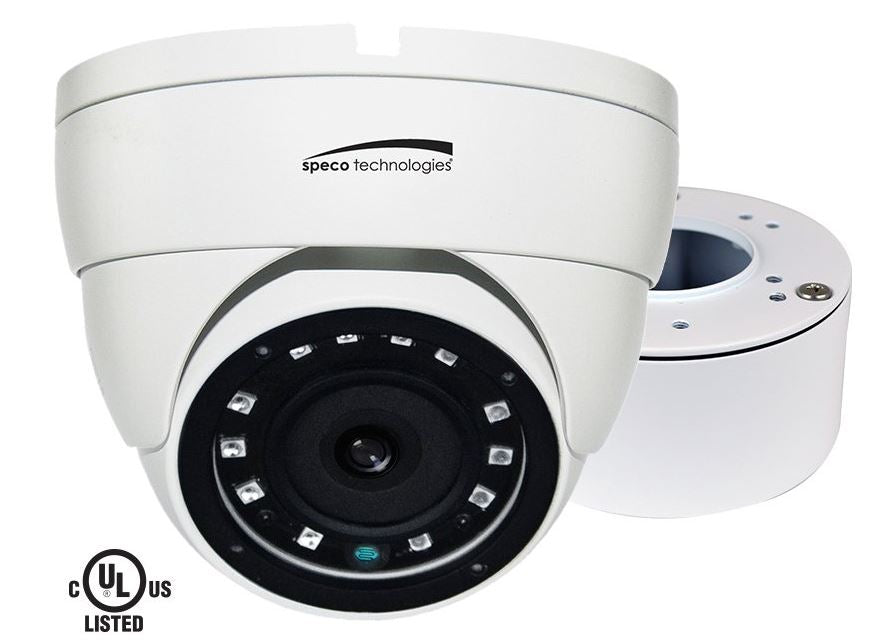

Meet the Speco VLDT4W Dome Camera: a compact, white-housing 2MP HD-TVI eyeball built for reliable day‑and‑night surveillance. With a fixed 3.6mm lens and a ready-to-mount junction box, it delivers crisp 1080p video and flexible video format compatibility to upgrade or expand your security setup.
-
Resolution & Sensor: 2MP HD-TVI with a 1/2.9" Sony CMOS sensor for 1920x1080 video clarity.
-
Night Vision: 18 IR LEDs enable up to 65 ft of infrared illumination in appropriate conditions.
-
Weatherproof Design: IP66-rated housing for durable outdoor use; operates from -22°F to 104°F.
-
Lens: 3.6mm fixed lens housed in a compact dome for a balanced field of view.
-
Video Outputs: Multi-format outputs—HD-TVI / AHD / CVI / CVBS—for easy integration with existing systems.
-
Onboard Controls: OSD with UTC (up the coax) for convenient setup; mirror image available in the OSD.
-
Accessories & Compliance: Junction box included; UL Listed; backed by a 5-year warranty.
-
Power: 12VDC power supply required (not included); maximum current draw 400mA.
-
Dimensions: 3.7" (W) x 3.15" (H); white dome housing suitable for indoor/outdoor mounting.
-
Default Mode & Features: HD-TVI default with Auto/Color/BW/EXT Day/Night, ATW, BLC, DNR, and WDR to adapt to varying scenes.
This camera delivers clear 1080p imagery with versatile compatibility to fit into existing security setups. Its weatherproof design, extended infrared range, and easy installation—coupled with a robust warranty—make it a practical choice for entrances, perimeters, parking areas, and other outdoor surveillance needs.
| Image Sensor |
1/2.9" 2MP Sony CMOS |
| Maximum Resolution |
1920x1080 |
| Minimum Illumination |
0 lux |
| Number of IR LEDs |
18 |
| IR Distance |
Up to 65 ft. (depending on scene reflection) |
| White Balance |
ATW |
| Blacklight Compensation |
Auto |
| Electronic Shutter Speed |
NTSC:1/60-1/100,000 |
| AGC |
On/Off |
| DNR |
On/Off |
| WDR |
On/Off |
| Day/Night |
Auto / Color / BW / EXT |
| OSD |
UTC |
| Gamma |
0.45 typ. |
| Scanning System |
Progressive |
| Video Signal Output |
HD-TVI / AHD / CVI / CVBS |
| Power Supply |
12VDC (power supply not included) |
| Power Consumption |
Max. 400mA |
| Operating Temperature |
-22°F - 104°F |
| Storage Temperature |
-22°F - 104°F |
| Unit Dimensions |
3.7" (W) x 3.15" (H) |
