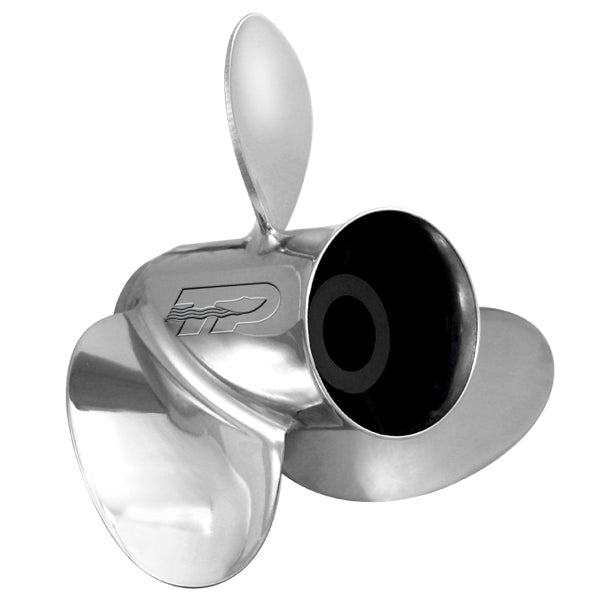

Turning Point Express 3 Blade 13.75x 15P Propeller 3143-1512
The Turning Point Express 3 Blade 13.75x 15P Propeller 3143-1512 is a 3-blade stainless steel propeller with a 13.75-inch diameter and 15-inch pitch. It uses Turning Point's interchangeable hub system, allowing the propeller housing and application-specific hub kit to be selected separately.
Features
- Stainless steel construction
- Aggressive rake and cupping support handling and boat lift
- Progressive pitch angles are designed to reduce slip and support efficient operation
- High-flow-through barrel exhaust design supports exhaust flow
Specifications
- Material: Stainless Steel
- Blades: 3
- Diameter: 13.75"
- Pitch: 15"
- Rotation: Right Hand Standard
- Hub Series: Diamond
Hub kit not included. Select the hub kit that matches both this propeller's hub series and the complete engine application shown below.
Hub Kit Application Chart
Match the engine manufacturer, model, stroke or cycle, year, spline count, and gearcase information. Horsepower alone does not establish fitment.
| Manufacturer | Engine Model | Cycle | Stroke/Cycle | Years | Hub Kit | Spline | Gearcase |
|---|---|---|---|---|---|---|---|
| Evinrude / johnson | 50HP | 2 | 1971-1974 | 503 | 13 | 4.25 | |
| Evinrude / johnson | 45 - 55HP Commercial | 2 | 1971-1974 | 503 | 13 | 4.25 | |
| Evinrude / johnson | 55, 60, 65, 70HP(with large gearcase, 65HP(Commercial) | 3 | 1971-1974 | 503 | 13 | 4.25 | |
| Evinrude / johnson | 75, 85, 88, 90, 100, 115, 120 | 4 | 1986-1994 | 503 | 13 | 4.25 | |
| Evinrude / johnson | 125, 135 | 4 | 1973-1976 | 503 | 13 | 4.25 | |
| Evinrude / johnson | 140 | 4 | 1977-1984 & 1986-1994) | 503 | 13 | 4.25 | |
| Evinrude / johnson | 115HP(H.O) | 4 | 1977-1984 & 1986-1994) | 503 | 13 | 4.25 | |
| Evinrude / johnson | 40, 50, 60, 75HP (E-Tec) | 4 | 1977-1984 & 1986-1994) | 503 | 13 | 4.25 | |
| Evinrude / johnson | 90, 115HP, 130HP(20" shaft) | 4 | 2009-2010 | 503 | 13 | 4.25 | |
| Evinrude / johnson | 60HP, 70HP | 4 | 4 | 2009-2010 | 506 | 13 | 4.25 |
| Force | 75HP | 4 | 4 | 1999 | 501 | 15 | 4.25 |
| Force | 90HP-150HP | 4 | 4 | 1995 & Newer | 501 | 15 | 4.25 |
| Honda | 75HP, 90HP | 4 | 4 | 1995-1998 | 501 | 15 | 4.25 |
| Honda | P60 | 4 | 4 | 1995-1998 | 507 | 15 | 4.25 |
| Honda | 75HP, 90HP | 4 | 4 | 1999 & Newer | 507 | 15 | 4.25 |
| Honda | 115HP, 130HP, (not 115D) | 4 | 4 | 1999 & Newer | 507 | 15 | 4.25 |
| Mercury & Mariner | 40 - 60 Bigfoot | 4 | 2 & 4 | 1999 & Newer | 501 | 15 | 4.25 |
| Mercury & Mariner | 70 | 4 | 2 & 4 | 1987-1989 | 501 | 15 | 4.25 |
| Mercury & Mariner | 75, 80 | 4 | 2 & 4 | 1978-1989 | 501 | 15 | 4.25 |
| Mercury & Mariner | 90, 100, 115, 125, 140HP | 4 | 2 & 4 | 1978-1989 | 501 | 15 | 4.25 |
| Mercury & Mariner | 150 XR4/6( includes equivalent Mariner Magnum 1, 2, 3) | 4 | 2 & 4 | Thru 1993 | 501 | 15 | 4.25 |
| Mercury & Mariner | OptiMax: 75, 90, 115, 125HP | 4 | 2 & 4 | Thru 1993 | 501 | 15 | 4.25 |
| Nissan & Tohatsu | 60C, 70C | 4 | 2 & 4 | Thru 1993 | 505 | 15 | 4.25 |
| Nissan & Tohatsu | 90-140HP | 4 | 2 & 4 | Thru 1993 | 505 | 15 | 4.25 |
| OMC | Cobra 400: 2.3L-3.0L | 4 | 2 & 4 | 1978-1989 | 503 | 13 | 4.25 |
| OMC | Sea Drive: 1.6L-1.8L | 4 | 2 & 4 | 1978-1989 | 503 | 13 | 4.25 |
| Parsun | T60, T75, T85, T90 | 4 | 2 & 4 | 1978-1989 | 500 | 15 | 4.25 |
| Suzuki | 75-140HP | 4 | 2(DT) | 1989 & Newer | 506 | 13 | 4.25 |
| Suzuki | 60HP, 70HP | 4 | 4(DF) | 1998-2009 | 506 | 13 | 4.25 |
| Yamaha | High Thrust: T50, FT60 | 4 | 4(DF) | 1998-2009 | 500 | 15 | 4.25 |
| Yamaha | 60-100HP | 4 | 2 | 1998-2009 | 500 | 15 | 4.25 |
| Yamaha | 70-100HP | 4 | 4 | 1998-2009 | 500 | 15 | 4.25 |
| Yamaha | 115HP, 130HP | 4 | 2 | 1998-2009 | 505 | 15 | 4.25 |
| Yamaha | 115HP | 4 | 4 | 1998-2009 | 505 | 15 | 4.25 |
Frequently Asked Questions
Is a hub kit included with the Turning Point Express 3 Blade 13.75x 15P Propeller 3143-1512?
No. The hub kit is sold separately. Choose a hub kit listed for the Diamond hub series that also matches your engine manufacturer, model, year, spline count, and gearcase.
How do I choose the correct hub kit for this Turning Point propeller?
Use the hub kit application chart and match the complete engine application. Do not choose a hub kit by horsepower alone.
What are the specifications of this propeller?
This is a 3-blade stainless steel propeller with a 13.75-inch diameter, 15-inch pitch, and right hand standard rotation.
How can I confirm this propeller is right for my boat?
Use Wholesale Marine's Propeller Finder to compare compatible propeller options for your boat and engine.
