Uflex USA 1500 PSI HI-PERF OB SYS FM V1

Uflex SilverSteer Universal Outboard Hydraulic Steering System

The Uflex SilverSteer hydraulic steering system is designed for high horsepower and toque applications. Coming equipped with a 1500 psi helm that offers high relief settings to offer precise steering at all torque loads. The included Silver Steer cylinder utilizes a keyed bullhorn design for maximum rigidity when dealing with peak torque loads. Constructed with stainless steel connection bolts for extreme resistance in marine environments. This high performance hydraulic boat steering system is ideal for bass boats, flat boats, and tournament fishing boats.

Product Features:

• Ultrabolt
• High HP/Torque Application
• Hardware Included
• Integrated Relief Valve

Hydraulic Cylinder Specifications:

• Volume: 120cc - 7.3 cu. in.
• Output Force: 992 lbs (450 kg)
• Internal Diameter: 1.37" (35 mm)
• Stroke: 7.28" (185mm)
• High Pressure Hose Fittings: 3/8"
• Bleed Fittings: DN5 Quick Connect

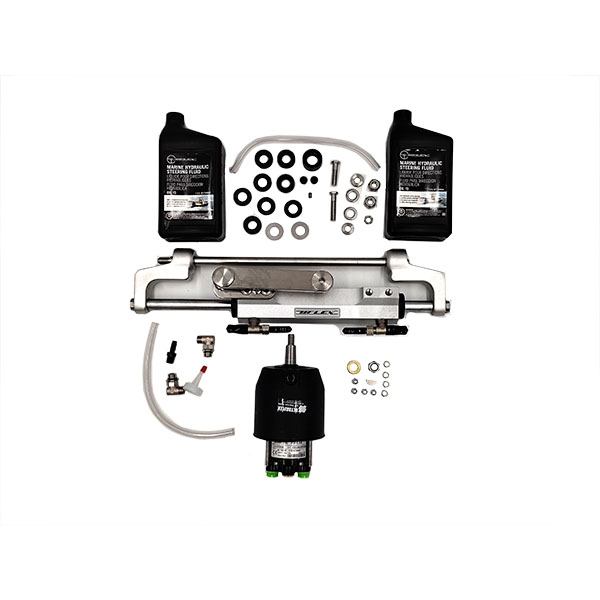

Includes:

• UC128-SVS/1 Hydraulic Cylinder
• 2 Quarts Hydraulic Steering Oil
• UP25F-SVS Helm

Application:

• Mercury/Mariner
• 115/125/150 EFI 2S 1990 - 2007
• 225/250 EFI 2S 2000 - 2007
• 135/150/175 Optimax 1999 - 2018
• 200/225/250 Optimax 1999 - 2018
• Racing 300 Optimax 1999 - 2011
• 250 Saltwater EFI 4S 2007 -2011
• 135/150/175/200 Verado L4 2004 - 2012
• 175/200 V6 4S 2018 - Present
• 225/300 V6 4S 2018 - Present
• Yamaha
• F115/F150 EFI 4S 2000 - 2008
• F115/F150/F75/F200 L4 2002 - 2007
• F350 V8 4S 2006 - Present
• Honda
• BF135/BF150 2005 - Present
• BF150 V-Tec 4S 2001 - Present
• BF175/BF200/BF225/BF250 4S 2001 - Present
• Suzuki
• DF100/115/140 4S 2008 - Present
• DF150/175/DF2200 L4 4S 2006 - Present
• Tohatsu
• 70/90/115 TLDI 4S 2004 - Present
• BFT 115/150/200/225/250 4S 2014 - Present
• BFT60/75/90 2015 - Present
• Johnson
• BJ90/115/140 4S 2001 - 2007
