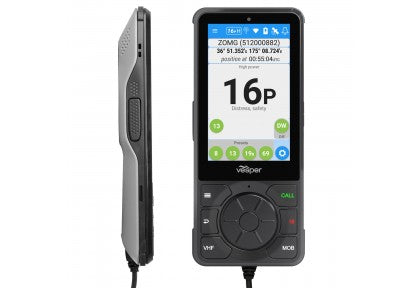

Elevate your maritime communication with the Vesper Cortex-H1 Handset Tethered. Engineered as the primary voice and calling interface for Cortex M1 or Cortex V1, this rugged handheld delivers crystal-clear VHF and DSC functionality at your fingertips, no matter where you are on deck.

The Cortex-H1 features a 4-inch multi-touch display protected by Gorilla Glass for maximum durability. Its glove- and salt-water–ready touchscreen is optically bonded to deliver exceptional wide-angle and sunlight viewability—even under the harshest mid-day glare. Navigate with a single hand using the innovative Click-Wheel and dedicated physical buttons for swift, intuitive control.

Designed for the demanding marine environment, the H1 combines VHF communications with AIS visibility and voiced alerts, giving you a unified cockpit on the move. Touch a vessel onscreen to initiate direct calling (DSC) and stay on top of alarms, vessel data, and remote monitoring from anywhere on the boat. It’s the perfect upgrade for Cortex M1 users looking to expand reach and situational awareness across multiple stations.

Key Benefits

• Single-handed operation with Click-Wheel and dedicated buttons for fast action
• Wet and gloves capable touchscreen designed for shipping, sailing, and rugged conditions
• Optically bonded display for superior sunlight readability and wide viewing angles
• 85 dBA of crystal-clear audio powered by a 3W Class D amplifier
• Combined AIS and VHF with voiced alerts to keep you informed without looking away from the task
• DSC calling by touching an onscreen vessel for quick, direct communication
• Upgrade your Cortex M1 SOTDMA smartAIS or add up to 10 handsets for more stations on board
• Bundled with Cortex V1 VHF; includes H1 Bulkhead Connector and H1 Cradle

What You Get

The Cortex-H1 Tethered Handset acts as the voice and calling interface for VHF and DSC calls, with a purpose-built touchscreen acting as the primary control alongside the Click-Wheel and dedicated buttons. Use it to configure and manage the Cortex M1 hub, view AIS target data and vessel instrumentation, monitor alarms, and oversee remote vessel operations—all from the palm of your hand.

Specifications

• : 164.8 mm x 71.8 mm x 21.4 mm (6 1/2" x 2 13/16" x 7/8")
• : 12V, 1A max; 12–24V compatible, 200 mA nominal
• : Lithium Polymer, 2 hour full charge, >12 hours nominal operation
• : 235 g
• : IPX8 waterproof; operating temp -25°C to 55°C (-13°F to 131°F)
• : 3W Class D amplifier, THD < 5% @ 85 dBA
• : LCD TFT, 640 x 800, 24-bit color, capacitive touch, optically bonded; glove- and salt-water operable; backlight 600 cd/m2; ambient light sensor for auto dimming

Enhance onboard situational awareness and keep critical communications at your command center. The Cortex-H1 Handset is the trusted, rugged, and capable portal for VHF, DSC, and AIS — designed to perform when it matters most.
